Top speed  649 km/h
Length  24 m
Retired  1978
First flight  May 17, 1945
Wingspan  30 m
Introduced  March 1947
Manufacturer  Lockheed Corporation

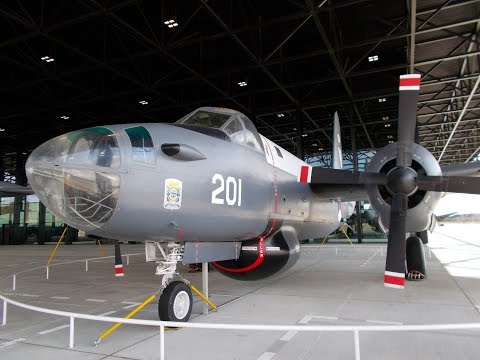

Lockheed P-2 Neptune Warbird Alley Lockheed P2V Neptune

Lockheed p 2 neptune

The Lockheed P-2 Neptune (designated P2V by the United States Navy prior to September 1962) was a Maritime patrol and anti-submarine warfare (ASW) aircraft. It was developed for the US Navy by Lockheed to replace the Lockheed PV-1 Ventura and PV-2 Harpoon, and being replaced in turn with the Lockheed P-3 Orion. Designed as a land-based aircraft, the Neptune never made a carrier landing, although a small number of aircraft were converted and deployed as carrier launched stop-gap nuclear bombers which would have to ditch or recover at land bases. The type was successful in export and saw service with several armed forces.


Lockheed p 2 neptune anti sub patrol aircraft

Design and development

Lockheed P-2 Neptune httpsimgrcgroupscomhttpuploadwikimediao

Development of a new land-based patrol bomber began early in World War II, with design work starting at Lockheed's Vega subsidiary as a private venture on 6 December 1941. At first, the new design was considered a low priority compared to other aircraft in development at the time, with Vega also developing and producing the PV-2 Harpoon patrol bomber. On 19 February 1943, the U.S. Navy signed a letter of intent for two prototpe XP2Vs, which was confirmed by a formal contract on 4 April 1944 with a further 15 aircraft being ordered 10 days later. It was not until 1944 that the program went into full swing. A major factor in the design was ease of manufacture and maintenance, and this may have been a major factor in the type's long life and worldwide success. The first aircraft flew in May 1945. Production began in 1946, and the aircraft was accepted into service in 1947.

Lockheed P-2 Neptune Lockheed P2 Neptune Wikipedia

Beginning with the P2V-5F model, the Neptune became one of the first aircraft in operational service to be fitted with both piston and jet engines. The Convair B-36, several Boeing C-97 Stratofreighter, Fairchild C-123 Provider, and Avro Shackleton aircraft were also so equipped. To save the weight and complexity of two separate fuel systems, the Westinghouse J34 jet engines on the P2Vs did not burn jet fuel- they burned the same fuel as the piston engines: 115–145 Avgas. The jet pods were fitted with intake doors that were kept closed when the J-34s were not running to prevent them from windmilling, allowing for economical piston-engine-only long-endurance search and patrol operations. In normal U.S. Navy operations, the jet engines were run at full power (97%) to expedite and assure all takeoffs, then shut down when the aircraft reached a safe altitude. Also, the jets were started and kept running at flight idle during low-altitude (500-foot (150 m) during the day and 1,000-foot (300 m) at night) anti-submarine and/or anti-shipping operations at sea as a safety measure in case one of the radials developed problems.

Lockheed P-2 Neptune Lockheed P2 Neptune RC Groups

Normal crew access was via a ladder on the aft bulkhead of the nosewheel well to a hatch on the left side of the wheel well, then forward to the observer nose or up through another hatch to the main deck. There was also a hatch in the floor of the aft fuselage, near the sonobuoy chutes.

Early Cold War

Prior to the introduction of the P-3 Orion in the mid-1960s, the Neptune was the primary U.S. land-based anti-submarine patrol aircraft, intended to be operated as the hunter of a '"Hunter-Killer" group, with destroyers employed as killers. Several features aided the P-2 in its hunter role:

  • Sonobuoys could be launched from a station in the aft portion of the fuselage and monitored by radio
  • Some models were equipped with "pointable" twin .50 caliber machine guns in the nose, but most had a forward observation bubble with an observer seat, a feature often seen in images.
  • The AN/ASQ-8 Magnetic Anomaly Detector was fitted in an extended tail, producing a paper chart. Unmarked charts were not classified, but those with annotations were classified as secret.
  • A belly-mounted AN/APS-20 surface-search radar enabled detection of surfaced and snorkeling submarines at considerable distances.
  • As the P-2 was replaced in the US Navy by the P-3A Orion in active Fleet squadrons in the early and mid-1960s, the P-2 continued to remain operational in the Naval Air Reserve through the mid-1970s, primarily in its SP-2H version. As active Fleet squadrons transitioned to the P-3B and P-3C in the mid- and late-1960s and early 1970s, the Naval Air Reserve P-2s were eventually replaced by P-3As and P-3Bs and the P-2 exited active U.S. naval service. VP-23 was the last active duty patrol squadron to operate the SP-2H, retiring its last Neptune on 20 February 1970, while the last Naval Reserve patrol squadron to operate the Neptune, VP-94, retired its last SP-2H in 1978.

    Nuclear bomber

    At the end of World War II, the US Navy felt the need to acquire a nuclear strike capability to maintain its political influence. In the short term, carrier-based aircraft were the best solution. Nuclear munitions at that time were bulky and required a large aircraft to carry them. The U.S. Navy improvised a carrier-based nuclear strike aircraft by modifying the P2V Neptune for carrier takeoff using jet assisted takeoff (JATO) rocket boosters, with initial takeoff tests in 1948. However, the Neptune could not land on a carrier, therefore the crew had to either make their way to a friendly land base after a strike, or ditch in the sea near a U.S. Navy vessel. It was replaced in this emergency role by the North American AJ Savage, the first nuclear strike aircraft that was fully capable of carrier launch and recovery operations; it was also short-lived in that role as the US Navy was adopting fully jet powered nuclear strike aircraft.

    Covert operations P2V-7U/RB-69A variants

    In 1954 under Project Cherry, the US Central Intelligence Agency (CIA) obtained five newly built P2V-7 and converted these into P2V-7U/RB-69A variants by Lockheed's Skunk Works at Hangar B5 in Burbank, California, for the CIA's own private fleet of covert ELINT/ferret aircraft. Later, to make up for P2V-7U/RB-69A operational losses, the CIA obtained and converted two existing US Navy P2V-7s, one in September 1962, and one in December 1964 to P2V-7U/RB-69A Phase VI standard, and also acquired an older P2V-5 from the US Navy as a training aircraft in 1963. Test flights were made by lead aircraft at Edwards AFB from 1955 to 1956, all the aircraft painted with dark sea blue color but with USAF markings. In 1957 one P2V-7U was sent to Eglin AFB for testing aircraft performance at low level and under adverse conditions.

    The initial two aircraft were sent to Europe, based at Wiesbaden, West Germany, but were later withdrawn in 1959 when the CIA reduced its covert aircraft assets in Europe. The CIA sent the other two P2V-7U/RB-69As to Hsinchu Air Base, Taiwan, where by December 1957, they were given to a "Black Op" unit, the 34th Squadron, better known as the Black Bat Squadron, of the Republic of China Air Force (|ROCAF/Taiwan); these were painted in ROCAF/Taiwan markings. The ROCAF/Taiwan P2V-7U/RB-69A's mission was to conduct low-level penetration flights into mainland China to conduct ELINT/ferret missions including mapping out China's air defense networks, inserting agents via airdrop, and dropping leaflets and supplies. The agreement for plausible deniability between US and Republic of China (ROC) governments meant the RB-69A would be manned by ROCAF/Taiwan crew while conducting operational missions, but would be manned by CIA crew when ferrying RB-69A out of Taiwan or other operational area to US.

    The P2V-7U/RB-69A flew with ROCAF/Taiwan Black Bat Squadron over China from 1957 to November 1966. All five original aircraft (two crashed in South Korea, three shot down over China) were lost with all hands on board. In January 1967, two remaining RB-69As flew back to NAS Alameda, California, and were converted back to regular US Navy P2H/P2V-7 ASW aircraft configurations. Most of the 34th Squadron's Black Op missions still remain classified by the CIA, although a CIA internal draft history, Low-Level Technical Reconnaissance over Mainland China (1955–66), reference CSHP-2.348, written in 1972 that covers CIA/ROCAF/Taiwan 34th Squadron's Black Op missions is known to be in existence but will not be declassified by the CIA until after 2022.

    Vietnam War

    During the Vietnam War, the Neptune was used by the US Navy as a gunship, an overland reconnaissance and sensor deployment aircraft, and in its traditional role as a maritime patrol aircraft. The Neptune was also utilized by the US Army's 1st Radio Research Company (Aviation), call sign "Crazy Cat", based at Cam Ranh Air Base in South Vietnam, as an electronic "ferret" aircraft intercepting low-powered tactical voice and morse code radio signals. The US Army operated the P-2 from 1967 until 1972, flying 42,500 hours with no accidents. Observation Squadron 67 (VO-67), call sign "Lindy", was the only P-2 Neptune aircraft squadron to ever receive the Presidential Unit Citation, flying Igloo White missions sowing seismic and acoustic sensors over the Ho Chi Minh Trail. VO-67 lost three OP-2E aircraft and 20 aircrew to ground fire during its secret missions into Laos and Vietnam in 1967–68. The Republic of China Air Force (ROCAF) secret 34th Black Bat Squadron's RB-69A/P2V-7U ELINT/SIGINT aircraft flew a low level electronic reconnaissance from Da Nang Air Base, flying over Thanh Hóa Province on 20 August 1963 to investigate an air resupply drop zone that turned out to be a set trap for a ROCAF C-123B airdrop mission 10 days earlier due to the air-inserted agents having been captured and turned. Next year, an air defense radar mapping mission was also flown by 34th Squadron's RB-69A/P2V-7U aircraft into North Vietnam and Laos on the night of 16 March 1964. The RB-69A took off from Da Nang, flew up the Gulf of Tonkin before coasting in near Haiphong, then flew down North Vietnam and the Laos border. The mission was requested by SOG for helping plan the insert or resupply of agents. Seven AAA sites, 14 early warning radar sites and two GCI radar signals were detected.

    Falklands War

    The Argentine Naval Aviation had received at least 16 Neptunes of different variants since 1958 including eight former RAF examples for use in the Escuadrilla Aeronaval de Exploración (Naval exploration squadron). They were intensively used in 1978 during the Operation Soberania against Chile including over the Pacific Ocean.

    During the Falklands War (Spanish: Guerra de las Malvinas) in 1982, the last two airframes in service (2-P-111 and 2-P-112) played a key role of reconnaissance and aiding Dassault Super Étendards, particularly on 4 May attack against HMS Sheffield. The lack of spare parts, caused by the US having enacted an arms embargo in 1977 due to the Dirty War, led to the type being retired before the end of the war; Argentine Air Force Lockheed C-130 Hercules took over the task of searching for targets for strike aircraft.

    Other military operators

    The Canadian version of the Lockheed Neptune (P2V7) served as an anti-submarine, anti-shipping and maritime reconnaissance aircraft in the RCAF Maritime Air Command from 1955, replacing the Avro Lancaster maritime aircraft. The Canadian P2V7 was fitted with piston engines initially, although, in 1959, the Neptunes had two underwing Westinghouse J34 jet engine pods retrofitted, similar to those fitted to US Navy variants. Armament included two torpedoes, mines, depth charges, bombs carried internally plus unguided rockets mounted externally underwing. A total of 25 Neptunes served with nos. 404, 405 and 407 squadrons until 1960. Upon unification of the Canadian Forces in 1968, the Neptune was retired and retroactively re-designated the CP122, The RCAF Neptune was replaced by the Canadair CP-107 Argus in the same year.

    The Royal Air Force Coastal Command operated 52 P2V-5s, designated Neptune MR.1s as a stop-gap modern maritime patrol aircraft until the Avro Shackleton could enter service. They were used from between 1952 and March 1957, being used for Airborne Early Warning experiments as well as for maritime patrol.

    In Australia, the Netherlands, and the US Navy, its tasks were taken over by the larger and more capable P-3 Orion, and by the 1970s, it was in use only by patrol squadrons in the US Naval Reserve and the Dutch Navy. The US Naval Reserve retired its last Neptunes in 1978, those aircraft also having been replaced by the P-3 Orion. By the 1980s, the Neptune had fallen out of military use in most purchasing nations, replaced by newer aircraft.

    In Japan, the Neptune was license-built from 1966 by Kawasaki as the P-2J, with the piston engines replaced by IHI-built T64 turboprops. Kawasaki continued their manufacture much later than Lockheed did; the P-2J remained in service until 1984.

    Civilian firefighting

    P-2/P2Vs have been employed in aerial firefighting roles by operators such as Minden Air Corp and Neptune Aviation Services. The fire fighters can carry 2,080 gal (7,874 l) of retardant and have a service life of 15,000 hours. Neptune proposes to replace them with British Aerospace 146 aircraft which are estimated to have a service life of 80,000 hours and carry upwards of 3,000 gallons of retardant.

    "The Truculent Turtle"

    The third production P2V-1 was chosen for a record-setting mission, ostensibly to test crew endurance and long-range navigation but also for publicity purposes: to display the capabilities of the US Navy's latest patrol bomber. Its nickname was "The Turtle", which was painted on the aircraft's nose (along with a cartoon of a turtle smoking a pipe pedaling a device attached to a propeller). However, in press releases immediately before the flight, the US Navy referred to it as "The Truculent Turtle".

    Loaded with fuel in extra tanks fitted in practically every spare space in the aircraft, "The Turtle" set out from Perth, Australia to the United States. With a crew of four (and a nine-month-old gray kangaroo, a gift from Australia for the National Zoo in Washington, D.C.) the aircraft set off on 9 September 1946, with a RATO (rocket-assisted takeoff). 2 1/2 days (55h, 18m) later, "The Turtle" touched down in Columbus, Ohio, 11,236.6 mi (18,083.6 km) from its starting point. It was the longest un-refueled flight made to that point – 4,000 mi (6,400 km) longer than the US Air Force's Boeing B-29 Superfortress record. This would stand as the absolute unrefueled distance record until 1962 (beaten by a USAF Boeing B-52 Stratofortress), and would remain as a piston-engined record until 1986 when Dick Rutan's Voyager would break it in the process of circumnavigating the globe. "The Turtle" is preserved at the National Museum of Naval Aviation at NAS Pensacola.


    Lockheed produced seven main variants of the P2V. In addition, Kawasaki built the turboprop-powered P-2J in Japan.

    Prototype, two built. Powered by two 2,300 horsepower (1,700 kW) Wright R-3350-8 engines with four-bladed propellers, with armament of two .50 in machine guns in nose, tail and dorsal turrets, and 8,000 pounds (3,600 kg) of stores in an internal bomb bay.
    First production model with R-3350-8A engine. Provision for 16 5 inches (130 mm) HVAR or 4 11 34 inches (300 mm) Tiny Tim rockets underwing; 14 built.
    Fifth production P2V-1 modified as a prototype for P2V-2. Powered by water injected R-3350-24W engines.
    Second production model, powered by two 2,800 horsepower (2,100 kW) R-3350-24W engines driving and three-bladed propellers. Nose turret replaced by "attack" nose fitted with six fixed 20 mm cannon. First eight aircraft retained Bell tail turret fitted with twin .50 machine guns, with remaining aircraft using Emerson tail turret with twin 20 mm cannon. 80 built.
    P2V-2N "Polar Bear"
    Two P2V-2 modified for polar exploration under Project Ski Jump. Armament removed, with ski landing gear and provision for JATO rockets. Fitted with early MAD gear for magnetic survey purposes. Used for Operation Deep Freeze Antarctic exploration. The specially modified P2Vs had 16-foot long aluminum skis that were attached to the main landing gear units that when retracted, tucked into fairing just below the engines. This way the modified P2vs could still land on a regular runway surface.
    One P2V-2 modified as a prototype anti-submarine variant with an AN/APS-20 search radar and additional fuel.
    Improved patrol bomber with 3,200 horsepower (2,400 kW) R-3350-26W engines with jet stack engine exhausts. 53 built.
    Conversions from other P2V-3 models, including P2V-3C and −3W, fitted with the ASB-1 Low Level Radar Bombing System; 16 converted.
    Stop-gap carrier based one-way nuclear-armed bomber, not intended to return for a landing on a carrier. Fitted with JATO rocket to aid take-off from carrier and more fuel. Nose guns and dorsal turret removed to save weight. 11 P2V-3s and one P2V-2 modified.
    Airborne Early Warning variant, AN/APS-20 search radar; 30 built.
    VIP combat transport with armored cabin in rear fuselage with seats for six passengers. Retained tail turret. Two converted from P2V-3s.
    Improved anti-submarine aircraft. Fitted with AN/APS-20 search radar and provision for dropping sonobuoys with additional dedicated sonobuoy operator. Underwing tip-tanks added, with searchlight in nose of starboard tip tank. First 25 aircraft powered by 3,200 horsepower (2,400 kW) R-3350-26WA engines, with remaining 27 powered by 3,250 horsepower (2,420 kW) Wright R-3350-30W turbo-compound engines. 52 built in total. Surviving aircraft redesignated P-2D in 1962.
    Fitted with Emerson nose turret with two 20 mm cannon replacing solid nose of earlier versions, while retaining dorsal and tail turrets. New, larger, jettisonable tip tanks, with traverable searchlight slaved to nose turret in front of starboard tip-tank and AN/APS-8 radar in nose of port tip-tank. AN/APS-20 search radar under fuselage. Later aircraft featured glazed observation nose and MAD gear in place of nose and tail turrets, and revised crew accommodation, with many earlier aircraft refitted. Dorsal turret often removed. 424 built.
    Modification with two 3,250 pounds-force (14.5 kN) J34 jet engines to increase power on take-off, and 3,500 horsepower (2,600 kW) R-3350-32W piston engines. The J34 engines and R-3350 had a common fuel system burning AvGas rather than having dedicated jet fuel (as did all Neptunes with jets except the Kawasaki P-2J). Four underwing rocket pylons removed but increased 10,000 pounds (4,500 kg) weapon load. Redesignated P-2E in 1962.
    P2V-5F converted for drone launch missions. All weaponry deleted. Redesignated DP-2E in 1962.
    P2V-5F with additional electronic equipment. Redesiognated EP-2E in 1962.
    P2V-5F with Julie/Jezebel ASW gear, featuring AQA-3 long range acoustic search equipment and Julie explosive echo sounding gear. Redesignated SP-2E in 1962.
    Designation applied to P2V-5F with special SIGINT/ELINT equipment used by the US Army's 1st Radio Research Company at Cam Ranh Bay Air Base. Carrying a crew of up to fifteen, the AP-2E was the heaviest P-2, with a take-off weight of up to 80,000 pounds (36,000 kg). Five converted (also designated RP-2E).
    Single P-2E converted as permanent test aircraft.
    Modified for use as part of Operation Igloo White for sensor deployment over South-East Asia with Observation Squadron 67 (VO-67). Fitted with terrain avoidance radar in nose, chaff dispensers, wing mounted gun pods and waist guns. 12 converted.
    Multi-role version with lengthened weapons bay and provision for aerial minelaying and photo-reconnaissance. Smaller AN/APS-70 radar instead of AN/APS-20. Initially fitted with gun turrets as P2V-5, although retaining ability to be refitted with glazed nose. A total of 67 were built for the US Navy and France. Redesignated P-2F in 1962.
    Anti-shipping version with provision to carry two AUM-N-2 Petrel anti-ship missiles. 16 built. Later redesignated P2V-6M then MP-2F.
    P2V-6 refitted with J34 jet engines. Redesignated P-2G.
    Crew trainer conversion with armament deleted, wingtip tanks often deleted. Redesignated TP-2F.
    Last Neptune variant produced by Lockheed, powered by R-3350-32W and J-34 engines. Fitted with lower drag wingtip tanks, AN/APS-20 search radar in a revised radome and a bulged cockpit canopy. Early aircraft were fitted with defensive gun turrets but these were removed as for the P2V-5. 287 were built, including 48 assembled by Kawasaki in Japan. Redesignated P-2H in 1962.
    15 aircraft with non-glazed nose fitted with four fixed 20 mm cannon for Royal Netherlands Naval Air Service. Subsequently fitted with glazed nose and modified to SP-2H standard. Supplemented by four SP-2H from France.
    Four aircraft built with wheel/ski landing gear and JATO gear for Antarctic operations. Redesignated LP-2J. (No relation to Kawasaki P-2J)
    Additional ASW/ECM equipment including Julie/Jezebel gear. Redesignated SP-2H.
    Naval designation of the RB-69A variant.
    Specialized night and all-weather ground attack variant fitted with FLIR and Low Light TV systems, tail turret, fuselage mounted grenade launchers and downwards firing miniguns. Bombs and napalm carried on underwing pylons. Four converted in 1968 for Heavy Attack Squadron 21 (VAH-21) for operation over South Vietnam.
    P-2H converted for drone launch and control.
    Single P-2H modified with UHF telemetry equipment instead of ASW systems.
    Testbed conversion of P2V-H.
    Five new built and two converted from P2V-7s for CIA covert operations, obtained with USAF help and operated by ROCAF 34th Squadron. Aerial reconnaissance/ELINT platform, modular sensor packages fitted depended on the mission needs. Originally fitted with Westinghouse APQ-56 Side Looking Airborne Radar (SLAR), the APQ-24 search radar, the Fairchild Mark IIIA cameras, the APR-9/13 radar intercept receiver, the QRC-15 DF system, the APA-69A DF display, the APA-74 pulse analyser, the Ampex tape recorder, the System 3 receiver to intercept enemy communications, the APS-54 RWR, a noise jammer, the RADAN system doppler radar navigation, and others. In May 1959, an upgrade program known as Phase VI was approved, and added the ATIR air-to-air radar jammer, replacing APR-9/13 with ALQ-28 ferret system, the QRC-15, 3 14-channel recorders and 1 7-channel high speed recorder to record ELINT systems, the K-band receiver, the ASN-7 navigation computer replacing RADAN, and Fulton Skyhook system.
    Neptune MR.1
    British designation of P2V-5; 52 delivered.
    CP-122 Neptune
    RCAF designation of P2V-7.(jet pod not initially fitted to 25 P2V-7 aircraft delivered to RCAF, but subsequently retrofitted)
    Kawasaki P-2J (P2V-Kai)
    Japanese variant produced by Kawasaki for JMSDF with T64 turboprop engines, various other improvements; 82 built.

    Military operators

  • Argentine Navy – Argentine Naval Aviation (eight units)
  • Escuadrilla Aeronaval de Exploracion
  •  Australia
  • Royal Australian Air Force
  • No. 10 Squadron RAAF
  • No. 11 Squadron RAAF
  •  Brazil
  • Brazilian Air Force (14 Units)
  • 1°/7° Grupo de Aviação
  •  Canada
  • Royal Canadian Air Force
  • No. 404 Squadron RCAF
  • No. 405 Squadron RCAF
  • No. 407 Squadron RCAF
  •  France
  • French Navy
  •  Japan
  • Japan Maritime Self Defense Force
  •  Netherlands
  • Dutch Naval Aviation Service
  •  Portugal
  • Portuguese Air Force
  • Esquadra 61, Montijo Air Base
  •  Republic of China
  • Republic of China Air Force
  • 34th Black Bat Squadron
  •  United Kingdom
  • Royal Air Force
  • No. 36 Squadron RAF
  • No. 203 Squadron RAF
  • No. 210 Squadron RAF
  • No. 217 Squadron RAF
  • No. 236 Operational Conversion Unit RAF
  •  United States
  • United States Army
  • United States Marine Corps
  • United States Navy
  • Central Intelligence Agency operated seven RB-69A in USAF colors.
  • Civilian operators

  • Aero Union
  • Heliworks Ltda. of Chile, operated a former Aero Union Neptune/Firestar
  • Minden Air
  • Neptune Aviation Services
  • Survivors

    There are a few Neptunes that have been restored and are on display in museums and parks.


    On display
  • 2-P-112 – Museo Aeronaval (MUAN) of Argentine Naval Aviation. This is the Neptune which tracked HMS Sheffield.
  • Australia

  • 149073 – Historical Aircraft Restoration Society, Illawarra Regional Airport, New South Wales, Australia. Ex-Royal Australian Air Force A89-273, now civil registered VH-IOY.
  • On Display
  • A89-280 - RAAF Base Townsville entrance, owned by RAAF Museum.
  • Canada

    On display
  • 147969 – Greenwood Military Aviation Museum in Nova Scotia, Canada.
  • Chile

    Under restoration
  • 147967 - To be displayed is the Neptune /Firestar registered CC-CHU of Heliworks Ltda. Currently dismantled in Concepción/Carriel Sur airport, the ex BuNo 147967 and N703AU/Tanker 03, its incorporation into the collection of Chile's Museo Nacional Aeronáutico y del Espacio at the former Los Cerrillos airport in Santiago, was announced during the ceremony of the 69th Anniversary of Museum on July 4, 2013.
  • Portugal

    On display
  • 4711 - Museu do Ar, Sintra.
  • United Kingdom

    On display
  • 204 – Royal Air Force Museum Cosford.
  • United States

  • 128422 – Neptune Aviation Services Inc. in Missoula, Montana.
  • 131424 – Neptune Aviation Services Inc. in Missoula, Montana.
  • 128346 – Neptune Aviation Services Inc. in Missoula, Montana.
  • 128382 – Neptune Aviation Services Inc. in Missoula, Montana.
  • 131445 – Neptune Aviation Services Inc. in Missoula, Montana.
  • 131459 – Neptune Aviation Services Inc. in Missoula, Montana.
  • 131482 – Neptune Aviation Services Inc. in Missoula, Montana.
  • 131502 – Evergreen Trade Inc. in McMinnville, Oregon.
  • 140154 – Harold Sheppard Jr. DBA in Riverton, Wyoming.
  • 140443 – Neptune Aviation Services Inc. in Missoula, Montana.
  • 140972 – Neptune Aviation Services Inc. in Missoula, Montana.
  • 143173 – Richard Camp in Lewes, Delaware.
  • 145906 – Neptune Aviation Services Inc. in Missoula, Montana.
  • 147949 – Neptune Aviation Services Inc. in Missoula, Montana.
  • 148341 – Neptune Aviation Services Inc. in Missoula, Montana.
  • 148346 – Neptune Aviation Services Inc. in Missoula, Montana.
  • 148356 – Neptune Aviation Services Inc. in Missoula, Montana.
  • 148359 – Neptune Aviation Services Inc. in Missoula, Montana.
  • 148360 – Erickson Aircraft Collection in Madras, Oregon
  • 148362 – Neptune Aviation Services Inc. in Missoula, Montana.
  • 135588 – Harold Sheppard in Riverton, Wyoming.
  • 144681 – Neptune Aviation Services Inc. in Missoula, Montana.
  • 145915 – Mid-Atlantic Air Museum in Reading, Pennsylvania.
  • 147965 – Neptune Aviation Services Inc. in Missoula, Montana.
  • 148339 – Neptune Aviation Services Inc. in Missoula, Montana.
  • On display
  • 89082 Truculent Turtle – National Museum of Naval Aviation, NAS Pensacola, Florida.
  • 128392 - NAS Brunswick main gate, former NAS Brunswick, Maine.
  • 131410 – NAS Jacksonville Memorial Park, NAS Jacksonville, Florida.
  • 131485 – United States Army Aviation Museum at Fort Rucker, Alabama
  • 128402 – Pueblo Weisbrod Aircraft Museum in Pueblo, Colorado.
  • 147957 – Pima Air and Space Museum, adjacent to Davis-Monthan AFB in Tucson, Arizona.
  • 147966 – South Georgia Technical College in Americus, Georgia.
  • 135620 – Pima Air and Space Museum adjacent to Davis-Monthan AFB in Tucson, Arizona.
  • 147954 – Museum of Aviation at Robins AFB, Georgia. The P-2 Neptune is painted to represent a USAF/CIA/Taiwan RB-69A.
  • 141234 – National Museum of Naval Aviation in NAS Pensacola, Florida.
  • 150279 – Gate guard at the Marine Corps Base Hawaii (former MCAS Kaneohe Bay), Hawaii. Relocated from former NAS Barbers Point, Hawaii in 1998 following that base's closure due to BRAC action.
  • Under restoration
  • 131542 – for static display by the Historic Aircraft Restoration Project at former NAS New York / Floyd Bennett Field in Brooklyn, New York.
  • P2V-3

    Data from Combat Aircraft since 1945

    General characteristics

  • Crew: 9-11
  • Length: 77 ft 10 in (23.72 m)
  • Wingspan: 100 ft 0 in (30.48 m)
  • Height: 28 ft 4 in (8.56 m)
  • Wing area: 1,000 ft² (92.9 m²)
  • Empty weight: 34,875 lb (15,819 kg)
  • Max. takeoff weight: 64,100 lb (29,076 kg)
  • Powerplant: 2 × Wright R-3350-26W Cyclone-18 radial engine, 3,200 hp (2,386 kW) wet each
  • Propellers: 3 bladed propeller, 1 per engine
  • Performance

  • Maximum speed: 278 kn (313 mph) (515 km/h)
  • Cruise speed: 155 kn (174 mph) (286 km/h) (max)
  • Range: 3,458 nmi (3,903 mi) (6,406 km)
  • Armament

  • Rockets: 2.75 in (70 mm) FFAR in removable wing-mounted pods
  • Bombs: 8,000 lb (3,629 kg) including free-fall bombs, depth charges, and torpedoes
  • P-2H (P2V-7)

    Data from Combat Aircraft since 1945

    General characteristics

  • Crew: 7–9
  • Length: 91 ft 8 in (27.94 m)
  • Wingspan: 103 ft 10 in (31.65 m)
  • Height: 29 ft 4 in (8.94 m)
  • Wing area: 1,000 ft² (92.9 m²)
  • Empty weight: 49,935 lb (22,650 kg)
  • Max. takeoff weight: 79,895 lb (35,240 kg)
  • Powerplant:
  • 2 × Westinghouse J34-WE-34 turbojet, 3,400 lbf (15.1 kN) each
  • 2 × Wright R-3350-32W Cyclone Turbo-compound radial engine, 3,700 hp (2,759 kW) wet each
  • Propellers: 4 bladed propeller, 1 per engine
  • Performance

  • Maximum speed: 316 kn (363 mp/h) (586 km/h) (all engines)
  • Cruise speed: 180 kn (207 mp/h) (333 km/h) (max)
  • Range: 1,912 nmi (2,157 mi) (3,540 km)
  • Service ceiling: 22,400 ft (6,827 m)
  • Armament

  • Rockets: 2.75 in (70 mm) FFAR in removable wing-mounted pods
  • Bombs: 8,000 lb (3,629 kg) including free-fall bombs, depth charges, and torpedoes
  • Accidents and incidents

  • On 27 November 1950 a P2V-2 crashed while conducting a test run with rockets near Kaena Point in Hawaii. The starboard wing separated from the aircraft. The crew of five died on impact.
  • On 6 November 1951 a P2V of VP-6 carrying out a weather reconnaissance mission over international waters off Vladivostok was attacked and shot down by a number of MiG-15s. All ten crew were killed.
  • On 18 January 1953 a P2V of VP-22 was shot down off Swatow in the Formosa Straits by Chinese anti-aircraft fire. 11 of 13 crewmen were rescued by a US Coast Guard PBM-5 under fire from shore batteries on Nan Ao Tao island. Attempting to takeoff in 8 to 12-foot swell, the PBM crashed. Ten survivors out of 19 total (including five from the P2V) were rescued by USS Halsey Powell. During the search effort, a PBM-5 from VP-40 received fire from a small-caliber machine gun, and USS Gregory received fire from shore batteries.
  • On 4 September 1954 a P2V-5 of VP-19 operating from NAS Atsugi ditched in the Sea of Japan, 40 miles (64 km) off the coast of Siberia after an attack by two Soviet Air Forces MiG-15s. One crewmen was killed, and the other nine were rescued by a USAF Grumman Albatross amphibian.
  • On 22 June 1955 a P2V-5 of VP-9 (BuNo 131515), flying a patrol mission from NAS Kodiak, Alaska, was attacked over the Bering Straits by two Soviet Air Forces MiG-15s. The P2V crash-landed on St. Lawrence Island after an engine was set afire. Of the 11 crew members, four sustained injuries due to gunfire and six were injured during the landing. The US government demanded $724,947 in compensation; the USSR finally paid half this amount.
  • On 10 October 1956 a P2V-5 of No. 36 Squadron RAF (WX545) crashed into the side of Beinn na Lice, Mull of Kintyre, southwest Scotland, killing all nine crew members. WX545 was returning from an anti-submarine exercise off Derry, Northern Ireland to its base at RAF Topcliffe in North Yorkshire, England. Beinn na Lice was hidden by fog, and a member of 36 Squadron alleges that the aircraft in the exercise had been ordered not to use radar in inshore waters.
  • On 12 April 1957 a P2V-5F (BUNO131452) of VP-26 crashed on take-off during a short takeoff practice exercise at NAS Brunswick, Maine. The apparent cause was a runaway varicam elevator control which caused a hammerhead stall at very low altitude. The aircraft did an overhead loop reversing its direction but crashed into the woods near the take off end of the runway next to the base golf course. There were no survivors.
  • On February 1, 1958 USAF C-118A 53-3277 collided in mid-air with US Navy Lockheed P2V Neptune 127723 over Norwalk, California, killing 47 of 49 on board both aircraft and one person on the ground.
  • On 4 February 1959 RAAF A89-308 crashed at RAAF Richmond, NSW, Australia. All eight crew died. The port engine began to disintegrate causing a fuel leak in the wheel well. The resulting fire severed the magnesium wing spar, and the aircraft fell from the sky before the crew could bail out.
  • On 25 March 1960 an ROCAF RB-69A/P2V-7U (7101/140442/54-4040) crashed into a hill near Kunsan Air Base, South Korea, during a low level ferry flight from Hsinchu, Taiwan to stage area in Kunsan, South Korea. All 14 aircrew on board were killed.
  • On 6 November 1961 an ROCAF RB-69A/P2V-7U (7099/140440/54-4039) conducting a low level penetration flight over mainland China was shot down by ground fire over Liaodong peninsula. All 14 aircrew on board were killed in action.
  • On 9 November 1961 an P2V-7LP (BuNo 140439) of VX-6 crashed on takeoff from Wilkes Station Antarctica, where it had refuelled en route back to McMurdo Station. Four aircrew and one passenger were killed, with four aircrew surviving.
  • On 8 January 1962 a ROCAF RB-69A/P2V-7U(7097/140438/54-4038) crashed into the Korea Bay while conducting ELINT and leaflet dropping missions. All 14 aircrew on board were killed in action.
  • On 12 January 1962 a P2V-5 (designation LA-9) of VP-5 flew off course during a patrol over the Denmark Strait and crashed on the Kronborg Glacier in eastern Greenland. All 12 crew were killed. The wreckage was discovered by a party of British geologists in 1966.
  • On 19 June 1963 an ROCAF RB-69A/P2V-7U (7105/141233/54-4041) was conducting ELINT mission over mainland China, and was shot down by PLAAF MiG-17PF over Linchuan, Jiangxi, after being intercepted repeatedly by multiple MiG-17PFs and Tu-4Ps. All 14 aircrew on board were killed in action.
  • On 11 June 1964 a RB-69A/P2V-7U (7047/135612/54-4037) was conducting ELINT mission over mainland China, and was shot down by PLAN-AF MiG-15 over Shandong peninsula, after intercepted by MiG-15s and Il-28s. All 13 aircrew on board were killed in action.
  • On 22 January 1965 an RCAF P2V-7 #24115 crashed short of the runway at CFB Summerside, Prince Edward Island due to running out of battery power to run the fuel pumps to the J-34 jet engines. 24115 had lost one reciprocating engine and the generator failed on the other plus the fact that Canadian Neptunes had no generators on the jets leading to the loss of all thrust and the subsequent crash.
  • On 15 September 1976 an Argentine Navy Lockheed Neptune aircraft flew on a reconnaissance mission from Rio Gallegos to survey the sea ice conditions in Drake Passage at the beginning of the summer navigation season. The plane crashed in poor weather on the then uninhabited Livingston Island, Antarctica, killing all 10 aircrew and a civilian television cameraman.
  • On 5 September 2008 a Neptune Aviation Services Lockheed Neptune registered N4235T, crashed soon after takeoff from Reno/Stead Airport, Reno, Nevada. The left engine and then left wing were seen to catch fire before the aircraft crashed. All three crew members on board were killed.
  • On 3 June 2012, while engaged in firefighting operations in Utah, a Neptune Aviation Services Lockheed Neptune registered N14447, crashed. Two crew members were killed.
  • References

    Lockheed P-2 Neptune Wikipedia
