Country Australia Status Operational Area 3.18 km² Operator Seqwater | Location South East Queensland Type of dam Gravity dam Catchment area 74 km² Construction began 1912 | |
Purpose Potable water supply
Recreation Opening date 1916 (1916)
2008 (2008) (upgrade) Similar Gold Creek Dam, Enoggera Dam, Leslie Harrison Dam, Sideling Creek Dam, Wappa Dam | ||
The Lake Manchester Dam is a concrete gravity dam with an un-gated spillway across the Cabbage Tree Creek that is located in the South East region of Queensland, Australia. The main purpose of the dam is for potable water supply of Brisbane. The impounded reservoir is called Lake Manchester.
Contents
- Map of Lake Manchester QLD 4306 Australia
- Lake manchester dam and spillway in flood april 3rd 2015
- Location and features
- History
- Recreational
- References
Map of Lake Manchester, QLD 4306, Australia

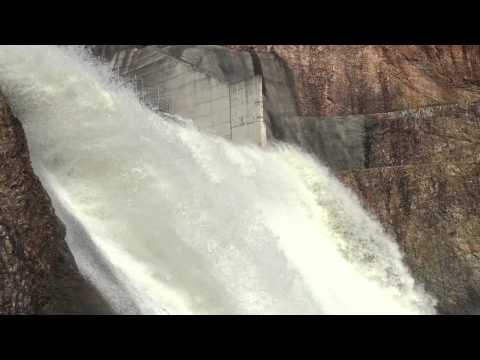

Lake manchester dam and spillway in flood april 3rd 2015
Location and features
The dam is located in the area surrounding the suburb of the same name, approximately 15 kilometres (9.3 mi) north of Ipswich. The primary inflow of the reservoir is the Cabbage Tree Creek, not far above its confluence with the Brisbane River. Its original purpose was to supplement supplies when the flow of the Brisbane River was low. Today it is one of a number of dams connected to the South East Queensland Water Grid.
The concrete dam structure is 38 metres (125 ft) high and 227 metres (745 ft) long. The 45-thousand-cubic-metre (1.6×106 cu ft) dam wall holds back the 26,000-megalitre (5.7×109 imp gal; 6.9×109 US gal) reservoir when at full capacity. From a catchment area of 74 square kilometres (29 sq mi) that includes much of the western slopes of the D'Aguilar Range, the dam creates Lake Manchester, with a surface area of 318 hectares (790 acres). The uncontrolled un-gated spillway has a discharge capacity of 450 cubic metres per second (16,000 cu ft/s). Initially managed by the Metropolitan Water Supply and Sewerage Board, and then the Brisbane City Council, management of the dam was transferred to Seqwater in July 2008.
History
The Enoggera Dam, the Gold Creek Dam and the Mount Crosby Weir were built to supply water to Brisbane but could not meet growing demand. A site 2.8 kilometres (1.7 mi) upstream from the creek's confluence with the Brisbane River was selected as this was the next catchment to the west in the D'Aguilar Range. The designer was Allan Hazen, an American engineer. Construction of the Lake Manchester Dam commenced in 1912 and when it was completed in 1916, it was the fourth–oldest dam in Queensland and was originally called the Cabbage Tree Creek Dam. The dam was renamed in 1916 in honour of E. J. T. Manchester, the president of the Metropolitan Water Supply and Sewerage Board. In 1924 the elevation of the bywash was raised which added to the dams capacity.
In October 2005 the dam was reactivated as drought reduced the region's water supply to a critical point. The same year a report claimed that due to leaks and cracks the structure could break in a severe rain storm event. In 2007 the dam's capacity was again raised and connection to the regional water grid was re-established. The Lake Manchester Dam Flood Security Upgrade was a Brisbane City Council project to ensure that the dam met the Australian National Committee on Large Dams (ANCOLD) guidelines for large dams. The project involved strengthening and raising the dam wall for flood security purposes. Work began in early 2007 and was completed in 2008.
Recreational
Recreational activities which are permitted around the dam include barbecuing, camping, horse riding, mountain biking, picnicking and bushwalking.
