Top speed  425 km/h
Length  7.06 m
Unit cost  20,424–20,424 USD (1935)
Manufacturer  Grumman
Wingspan  9.75 m
Introduced  1936
First flight  March 20, 1935
Grumman F3F httpsuploadwikimediaorgwikipediacommons88

Grumman f3f 2 flying barrel


The Grumman F3F was the last American biplane fighter aircraft delivered to the United States Navy (indeed, the last biplane fighter delivered to any American military air arm), and served between the wars. Designed as an improvement on the single-seat F2F, it entered service in 1936. It was retired from front line squadrons at the end of 1941 before it could serve in World War II, and was first replaced by the Brewster F2A Buffalo. The F3F which inherited the Leroy Grumman-designed retractable main landing gear configuration first used on the Grumman FF served as the basis for a biplane design ultimately developed into the much more successful F4F Wildcat. When it entered combat, the Wildcat quickly replaced the Buffalo as the primary fighter of the Navy and Marines in the first part of World War II, and continued to be produced throughout the conflict.

Contents

Grumman F3F Grumman F3F Aircraft

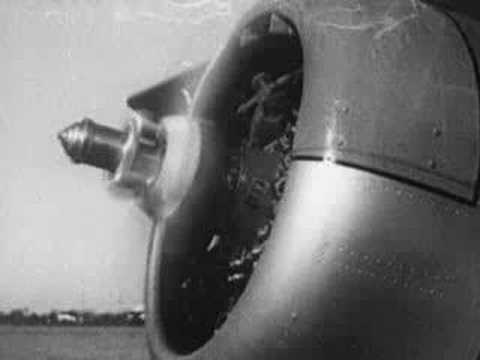

Grumman f3f comes to life


Design and development

Grumman F3F 1938 Grumman F3F2 Fantasy of Flight

The Navy's experience with the F2F revealed issues with stability and unfavorable spin characteristics, prompting the 15 October 1934 contract for the improved XF3F-1, placed before F2F deliveries began. The contract also required a capability for ground attack, in addition to the design's fighter role. Powered by the same Pratt & Whitney R-1535-72 Twin Wasp Junior engine as the F2F, the fuselage was lengthened and wing area increased over the earlier design. A reduction in wheel diameter allowed greater fuselage streamlining, eliminating the prominent bulge behind the cowling of the F2F.

Grumman F3F Grumman F3F Specifications Technical Data Description

The prototype, BuNo. 9727, was delivered and first flown on 20 March 1935 with company test pilot Jimmy Collins making three flights that day. Two days later, six dive-recovery flights took place; on the 10th, the aircraft's pullout at 8,000 ft (2,438 m) registered 14 g on the test equipment. The aircraft broke up in midair, crashing in a cemetery and killing Collins. A second, strengthened prototype was built, but it crashed on 9 May of the same year following the pilot's bailout during an unsuccessful spin recovery. The second prototype was rebuilt in three weeks, flying on 20 June 1935. An order for 54 F3F-1 fighters was placed on 24 August of that year, following the conclusion of the flight test program.

Operational history

Grumman F3F Grumman F3F

The first production F3F-1 was delivered on 29 January 1936 to the test group at Naval Air Station Anacostia, with squadron service beginning in March to VF-5B of Ranger and VF-6B of Saratoga. Marine squadron VF-4M received the last six in January 1937.

Grumman F3F FileGrumman F3F2 2MF3 8031157586jpg Wikimedia Commons

Grumman, wanting to take advantage of the powerful new 950 hp (708 kW) Wright R-1820 supercharged radial engine, began work on the F3F-2 without a contract; the order for 81 aircraft was not placed until 25 July 1936, two days before the type's first flight. The engine's larger diameter changed the cowling's appearance, making the aircraft look even more like a barrel, though top speed increased to 255 mph (410 km/h) at 12,000 ft (3,658 m).

Grumman F3F Grumman F3F carrierborne fighter

The entire F3F-2 production series was delivered in between 1937 and 1938; when deliveries ended, all seven Navy and Marine Corps pursuit squadrons were equipped with Grumman single-seat fighters. Further aerodynamic developments were made to an F3F-2 returned to Grumman for maintenance; it became the XF3F-3, and featured a larger-diameter propeller, among other improvements. On 21 June 1938, the Navy ordered 27 improved F3F-3s, as new monoplane fighters like the Brewster F2A and Grumman's own F4F Wildcat were taking longer to develop than had been planned.

With the introduction of the Brewster F2A-1, the Navy's biplane fighter days were numbered. All F3Fs were withdrawn from squadron service by the end of 1941, though 117 were assigned to naval bases and used for training and utility duties until December 1943.

A few F3Fs were used by the U.S. Army Air Force as ferry-pilot trainers, under the designation UC-103.

A civilian aerobatic two-seat variant, the G-22A "Gulfhawk II," was constructed in 1938 and flown by Major Alfred "Al" Williams (retired), head of Gulf Oil's aviation department.

Variants

Data from: Aerofiles - Grumman

G-11
Company designation for F3F-1 carrier-borne fighters.
XF3F-1
Three prototypes of the F3F, powered by a single 700 hp (520 kW) Pratt & Whitney R-1535-84 Twin Wasp Junior
F3F-1
Initial production version for the US Navy, 54 built.
G-19
Company designation for the F3F-2 fighters.
XF3F-2
A single prototype of the refined F3F-1, powered by a single 850 hp (630 kW) Wright XR-1820-22 Cyclone G
F3F-2
Second production model for the US Navy, powered by a single 950 hp (710 kW) Wright R-1820-22 Cyclone, 81 built.
XF3F-3
A single prototype of the F3F-3 with curved windshield and new cowling converted from an F3F-2.
F3F-3
Final production variant for the US Navy, 27 built.
G-22 Gulfhawk II
A single hybrid F2F/F3F, powered by a 1,000 hp (750 kW) Wright R-1820 Cyclone, for display pilot Al Williams, sponsored by the Gulf Oil Company for demonstration flights and aerobatic displays. The G-22 Gulfhawk II was retired to the National Air Museum in October 1948.
G-32 / G-32A Gulfhawk III
A civilian version of the F3F, powered by a 1,000 hp (750 kW) Wright R-1820 Cyclone. Two aircraft were built, one for Grumman Aircraft Company and the second, Red Ship, for Al Williams as the G-32A Gulfhawk III
UC-103
Both G-32 aircraft were impressed into the USAAF in 1942; Williams Gulfhawk III was destroyed in a crash in Florida and the second survived until 1971 when it crashed after being abandoned due to an inflight fire.

Operators

 United States
  • United States Army Air Forces
  • United States Marine Corps
  • United States Navy
  • Survivors

    Today, there are four flying aircraft, three F3F-2 models and the Gulf Oil G-32A, all which were restored by Herb Tischler's Texas Airplane Factory in Fort Worth. The restorations took four years and consisted of rebuilding the G-32A from original blueprints with tooling built at the Texas Airplane Factory. The wreckage of three -2 aircraft which had originally crashed in Hawaii were utilized to complete the other restorations.

  • 0972 – F3F-2 owned by Hawks Zeroq3 in Sonoma, California. This airframe was restored by Chris Prevost and has been on the flight line at Vintage Aircraft in Sonoma, California.
  • 0976 – F3F-2 on static display at the National Naval Aviation Museum in Pensacola, Florida. This aircraft was ditched off the coast of San Diego on 29 August 1940 while attempting a landing on Saratoga. The fighter was rediscovered by a U.S. Navy submarine in June 1988, and recovered on 5 April 1991. It was restored at the San Diego Aerospace Museum before going on display at the National Naval Aviation Museum.
  • 1028 – F3F-2 on display at the Fantasy of Flight in Polk City, Florida.
  • 1033 – F3F-2 owned by the Greatest Generation Naval Museum in Carlsbad, California.
  • 335 – G-22 on static display at the Steven F. Udvar-Hazy Center of the National Air and Space Museum in Chantilly, Virginia.
  • Replica – G-32A owned by Comanche Warbirds Inc in Houston, Texas. This airframe is a replica rebuilt at the Texas Airplane Factory using the identity of G-32A construction number 447, which crashed in 1971.
  • Specifications (F3F-3)

    Data from Great Aircraft of the World

    General characteristics

  • Crew: one pilot
  • Length: 23 ft 2 in (7.06 m)
  • Wingspan: 32 ft 0 in (9.75 m)
  • Height: 9 ft 4 in (2.84 m)
  • Wing area: 260 ft² (24.15 m²)
  • Empty weight: 3,285 lb (1,490 kg)
  • Max. takeoff weight: 4,795 lb (2,175 kg)
  • Powerplant: 1 × Wright R-1820-22 "Cyclone" 9-cylinder radial engine, 950 hp (710 kW)
  • Performance

  • Maximum speed: 264 mph (229 kn, 425 km/h) at 15,250 ft (4,658 m)
  • Cruise speed: 150 mph (130 kn, 240 km/h)
  • Range: 980 mi (850 nmi, 1,600 km)
  • Service ceiling: 33,200 ft (10,120 m)
  • Rate of climb: 2,800 ft/min (14 m/s) at sea level
  • Armament

  • Guns:
  • 1× 0.30 in (7.62 mm) M1919 machine gun, 500 rounds (left)
  • 1× 0.50 in (12.7 mm) M2 machine gun, 200 rounds (right)
  • Bombs: 2× 116 lb (52.6 kg) Mk IV bombs, one under each wing
  • Popular culture

    The F3F was featured as an "experimental fighter" in Warner Bros.'s Wings of the Navy (1939). The F3F-2 was featured in the 1940 film Flight Command, starring Robert Taylor as a pilot whose work developing instrument landing systems helps his lost squadron return to NAS North Island.

    Perhaps the most prominent and popular record of F3Fs is in the 1941 Technicolor film Dive Bomber, also set at NAS North Island. This film extensively used parked F3Fs as background, and one single aircraft in flight in the last action scene.
