De Havilland Vampire

Origins

In January 1941, Sir Henry Tizard made an informal approach to the de Havilland Aircraft Company, suggesting that the company proceed to design a fighter aircraft that would harness the revolutionary new jet propulsion technology under development, along with an appropriate engine to go with it. While no official Specification had then been issued, de Havilland decided to proceed with an exploration of the concept; the company quickly conceived of a single-engined aircraft that had air-intakes set into the wing roots to feed a centrally mounted engine, which made use of centrifugal design. The aero-engine designer Major Frank Halford had been given access to Frank Whittle's pioneering work on gas turbines; for the projected jet-powered fighter, Halford decided to proceed with the design of a "straight through" centrifugal engine capable of generating 3,000 lb of thrust, which was considered to be high at the time. Halford's engine was developed, and emerged as the Halford H.1. By April 1941, design work on the engine had been completed; a prototype H.1 engine performed its first test run one year later.

The low power output of the early jet engines had meant that only twin-engined aircraft designs were considered to be practical during the early stages of development; however, as more powerful jet engines were quickly developed, particularly Halford's H.1 (later known as the de Havilland Goblin), the practicalities of single-engined jet fighter were soon realized. de Havilland were approached to produce an airframe for the H.1 as insurance against Germany using jet bombers against Britain; this was considered more important that de Havilland's own suggestion of a high-speed jet bomber. Their first design, designated as the DH.99, was an all-metal, twin-boom, tricycle undercarriage aircraft armed with four cannon. The use of a twin boom enabled the jet pipe to be kept relatively short, which avoided the power loss that would have occurred if a long pipe was used, as would have been necessary by a conventional fuselage. It also put the rudder empennage clear of interference from the exhaust. Performance was estimated at 455 miles per hour (732 km/h) at sea level and initial climb of 4,590 ft/min (1,400 m/min) on 2,700 lb thrust. The Ministry of Aircraft Production (MAP) expressed doubts regarding the estimations for the aircraft's performance and weight; however, the project received permission to proceed in July 1941.

The DH.99 design was soon modified to incorporate a combined wood-and-metal construction in light of recommendations from the MAP; the design was thus renumbered to DH.100 by November 1941. The aircraft was considered to be a largely experimental design due to its use of a single engine and some unorthodox features, unlike the Gloster Meteor which had been specified for production early on. In February 1942, the MAP suggested dropping the project for a bomber but de Havilland stated that the twin-boom was, despite Ministry doubts, only an engineering problem to be overcome. On 22 April 1942, the construction of two prototypes (serials LZ548 and LZ551) was authorized by the Ministry while Specification E.6/41 was produced and issued to cover the work. Accordingly, the company proceeded with the detailed design work phase of the DH.100 in early 1942.

Internally designated as the DH.100 and originally named the "Spider Crab", the aircraft was entirely a de Havilland project, being principally worked upon at the company's facility at Hatfield, Hertfordshire. The construction of the aircraft exploited de Havilland's extensive experience in the use of moulded plywood for aircraft construction; many design features that were used upon the DH.100, such as the fuselage nacelle and tall triangular vertical surfaces, had been present on the company's preceding Mosquito, a widely produced fast bomber of the war.

The layout of the DH.100 used a single jet engine installed in an egg-shaped fuselage which was primarily composed of plywood for the forward section and aluminium throughout the aft section. It was furnished with conventional mid-mounted straight wings; air brakes were installed on the wings to slow the aircraft, better enabling it to manoeuvre into a firing position behind slower aircraft - a feature that had also been incorporated in the Meteor. Armament comprised four 20mm Hispano Mk.V cannon located underneath the nose; from the onset of the design phase, even when the aircraft was officially intended to serve only as an experimental aircraft, the provision for the cannon armament had been included.

On 20 September 1943, the first DH.100 prototype, serial number LZ548/G, conducted its maiden flight from Hatfield Aerodrome; it was piloted by Geoffrey de Havilland Jr, the company's chief test pilot and son of the company's founder. This Flight took place only six months after the Meteor had performed its own maiden flight; the first flight had been delayed due to the need to dispatch the only available engine suitable for flight to America to replace one destroyed in ground engine runs in Lockheed's prototype XP-80 jet fighter. A total of three prototypes, LZ548/G, LZ551/G, and MP838/G were produced in order to support the type's development.

Production and further development

On 13 May 1944, an initial production order for 120 Vampire Mk I aircraft was received; it was quickly increased to 300 aircraft soon thereafter. The production Vampire Mk I did not fly until April 1945. Due to the extensive wartime pressures upon de Havilland's production facilities for existing aircraft type, English Electric Aircraft undertook production of the Vampire at their Preston, Lancashire factories instead; the company would go onto produce the majority of the aircraft. Only about half a dozen production aircraft had been built by the end of the Second World War, although it did not result in the type becoming a victim of the extensive post-war cutbacks that were soon implemented, which had terminated the production of many existing aircraft along with development work upon several more.

De Havilland initiated a private venture night fighter, the DH.113 intended for export, fitting a two-seat cockpit closely based on that of the Mosquito night fighter, and a lengthened nose that accommodated an AI Mk X radar. An order to supply the Egyptian Air Force was received, but this was blocked by the British government as part of a general ban on supplying arms to Egypt. Instead, the RAF took over the order and put them into service as an interim measure between the retirement of the de Havilland Mosquito night fighter and the full introduction of the Meteor night fighter. Removal of the radar from the night fighter and fitting of dual controls resulted in a jet trainer model of the aircraft, the DH.115 Vampire which entered British service as the Vampire T.11. This trainer variant was built in large numbers, both for the RAF and for export.

An alternative powerplant to the de Havilland Goblin soon became available in the form of the Rolls-Royce Nene, which was likewise a turbojet engine capable of generating similar levels of thrust. The Vampire II designation was applied to three experimental Nene-powered Vampires, which were used to assess their performance. One of these was evaluated by the RAF before it was decided that the rival Goblin would be adopted for the RAF Vampires instead; another contributed to development work for the Vampires of the Royal Australian Air Force (RAAF).

Although the un-installed Nene had a higher thrust than the Goblin, the level flight speed was no greater. To reduce the installed-engine intake losses caused by having to feed air to the rear face of the impeller, two additional intakes were added behind the cockpit; these had the negative side-effect of causing elevator reversal and buffeting tendencies, which in turn reduced the Vampire's Mach limitation. The Vampires of the RAAF were powered by the Nene engine; these were initially outfitted with dorsal intakes, but the intakes were subsequently repositioned underneath the fuselage instead. In 1949, Boulton Paul Aircraft redesigned the wing-root intakes and internal ducting based on the installation of the Nene in the prototype Hawker Sea Hawk. The Mistral, the French name for their models of the Vampire, also used the Nene engine with BPA intakes.

The Vampire III, was the first of several models that sought to address the demands for greater range from the type. Accordingly, underwing fuel tanks of both 100 and 200 gallon capacities; other modifications included the lowering of the tailplane and the reshaping of the vertical surfaces of the tail. The design changes to accommodate hardpoint-mounted drop tanks had the additional benefit of enabling the carriage of various stores and had effectively readied the type for performing ground-attack duties. The wing was considerably modified to improve low altitude performance, the span having been reduced by 2ft, the adoption of square-cut wingtips, the thickening of the skin, greater structural strength, and undercarriage modifications to withstand the overall increased weight.

3,268 Vampires were built in 15 versions, including a twin-seat night fighter, a trainer and a carrier-based aircraft designated Sea Vampire. The Vampire was used by 31 air forces. Germany, the Netherlands, Spain and the U.S. were the only major Western powers not to use the aircraft.

Records and achievements

On 8 June 1946, the Vampire was introduced to the British public when Fighter Command's 247 Squadron was given the honour of leading the flypast over London at the Victory Day Celebrations. The Vampire was a versatile aircraft, setting many aviation firsts and records, being the first RAF fighter with a top speed in excess of 500 mph (800 km/h). On 3 December 1945, a Sea Vampire piloted by Captain Eric "Winkle" Brown became the first pure-jet aircraft to land on and take off from an aircraft carrier.

Vampires and Sea Vampires were used in trials from 1947 to 1955 to develop recovery and deck-handling procedures and equipment for the operation of aircraft without an undercarriage from flexible rubber decks on aircraft carriers. Deletion of the undercarriage would reduce the aircraft weight, allow extra fuel to be carried, and ease deck handling. Despite demonstrating that the technique was feasible, with many landings being made with undercarriage retracted on flexible decks both at RAE Farnborough and on board the carrier HMS Warrior, the proposal was not taken further. Aviation author Geoffrey Cooper quotes author Marriott stating that the rubber deck system "..would have required extensive facilities both aboard ship and at naval air stations to support it. Any gains in aircraft performance were more than cancelled by the complexity and cost of implementation."."

On 23 March 1948, John Cunningham, flying a modified Vampire Mk I, which had been furnished with extended wing tips, powered by the Ghost engine, achieved a new world altitude record, having attained a maximum altitude of 59,446 ft (18,119 m).

On 14 July 1948, six Vampire F.3s of No. 54 Squadron RAF became the first jet aircraft to fly across the Atlantic Ocean when they arrived in Goose Bay, Labrador. They went via Stornoway in the Outer Hebrides of Scotland, Keflavik in Iceland and Bluie West 1, Greenland. From Goose Bay airfield they went on to Montreal (c. 3,000 mi/4,830 km) to start the RAF's annual goodwill tour of Canada and the US, where they gave formation aerobatic displays. At the same time USAF Colonel David C. Schilling led a group of F-80 Shooting Stars flying to Fürstenfeldbruck Air Base in Germany to relieve a unit based there. There were conflicting reports later regarding competition between the RAF and USAF to be the first to fly the Atlantic. One report said the USAF squadron delayed completion of its movement to allow the Vampires to be "the first jets across the Atlantic". Another said that the Vampire pilots celebrated “winning the race against the rival F-80s.”

Overview

The de Havilland Vampire was a jet-powered twin-boom aircraft, typically employed in the fighter and fighter bomber roles. Aviation author Francis K Mason referred to it as being "the last unsophisticated single-engine front line aircraft to serve with Britain's Fighter Command"; the Vampire was a relatively straightforward aircraft, employing only manually operated flight controls, no radar, a simple airframe, and, aside from the propulsion system, made use of mostly conventional practices and technologies. The destinctive twin-boom tail configuration of the Vampire was one of the only non-traditional airframe features when compared to its contemporaries.

In comparison to later aircraft, the Vampire had a relatively disorganised cockpit that in some aspects lacked ergonomic measures; such as the fuel gauges being difficult for the pilot to observe without pulling the control column back. A few controls, such as the low-pressure fuel cock, were known for being difficult to move or were otherwise obstructed by other controls. The pilot was provided with a fairly favourable external view, in part aided by the relatively small size of the Vampire.

Engine

The Vampire was first powered by a single Halford H1 (later and more widely known as the de Havilland Goblin) turbojet engine, initially capable of producing 2,100 lbf (9.3 kN) of thrust, designed by Frank B Halford and manufactured by de Havilland. This engine was a centrifugal-flow type, a configuration later superseded after 1949 by the slimmer axial-flow units. In 1947, Wing Commander Maurice Smith, assistant editor of Flight magazine, stated upon piloting his first jet-powered aircraft, a Vampire Mk III: "Piloting a jet aircraft has confirmed one opinion I had formed after flying as a passenger in the Lancastrian jet test beds, that few, if any, having flown in a jet-propelled transport, will wish to revert to the noise, vibration and attendant fatigue of an airscrew-propelled piston-engined aircraft".

Initially, the relatively high fuel consumption of the Goblin engine had provided early models of the Vampire with a limited range; this had been a common problem with all early jet aircraft. Later marks featured considerably increased internal fuel capacity as a result. The H.1 Goblin engine, conceived in 1941, remained unchanged in basic form for 13 years; according to aerospace publication Flight: "The Goblin...can fairly claim to be the world's most reliable turbojet". Over successive models, it gained increased turbine temperature and thrust. Later-built Vampire Mk Is were powered by the Goblin II; the F.3 onwards used the improved Goblin III; by the mid-1950s, the Goblin Mk. 35 export engine, capable of 3,500 lbf, had become available as well.

Certain marks of the Vampire were also operated as flying test-beds for the Rolls-Royce Nene engine, leading to the FB30 and 31 variants that were built in, and operated by, Australia. Due to the low positioning of the engine, a Vampire could not remain on idle for long as the heat from the jet exhaust would melt the tarmac behind the aircraft. If the engine did stall in flight, there was no onboard means to re-light the engine, meaning that a forced landing would be necessitated.

Handling

According to Mason, the controls of the Vampire were considered to be relatively light and sensitive, employing an effective elevator arrangement that enabled generous acceleration from relatively little control inputs along with highly balanced ailerons that could achieve high rates of roll. In comparison to the elevator and ailerons, the rudder required more vigorous actuation in order to achieve meaningful effect. Pilots converting from piston-engined types would find themselves having to adapt to the slower acceleration of turbojet engines and the corresponding need to moderate rapid throttle movements to avoid instigating a compressor stall.

The Vampire had a relatively good power/weight ratio and was reputedly quite maneuverable within the 400-500MPH range. Heavy use of the rudder was required at slower speeds, during which pilots had to be cautious during shallow turns to avoid stalls; this would be typically embarrassing rather than dangerous due to the relative ease of recovery, which was principally achieved via positive elevator application. At speeds in excess Mach 0.71, increasing levels of buffeting were encountered. The Vampire was compatible with a wide range of aerobatic manoeuvers, Mason comparing its capabilities in this respect to purpose-built sporting aircraft. It has been claimed that the type was the last British jet-powered fighter capable of accurately precipitating conditions such as hammer stalls, stall turns, and wingovers.

Preparing the Vampire for take-off would only require pilots to perform six vital actions: setting the trim to neutral, opening the high and low-pressure fuel cocks, activating the booster pump, setting the flaps, and retracting the air brakes. If laden with external fuel tanks or bombs, pilots would have to retract the undercarriage quite quickly, else increasing airflow as the aircraft picked up speed would prevent the undercarriage doors from closing. Landing procedure was similarly free of complexity: disengaging the wheel brakes, lowering the undercarriage, setting the flaps to fully down, and effecting the air brakes. Typically, power-on landings were conducted due to the slow response of the engine to throttle changes, while the wheel brakes had to be applied carefully in order to avoid locking the wheels; there was no anti-lock braking system present.

United Kingdom

Royal Air Force

In 1946, the first Vampire Mk I fighters entered RAF service in the interceptor role. Soon thereafter, considerable numbers of Mk I aircraft began equipping RAF squadrons of the Second Tactical Air Force stationed in Germany, often to replace wartime fighters such as the Hawker Typhoon, Hawker Tempest, and North American Mustang. On 3 July 1948, the Vampire became the first jet aircraft to equip peacetime units of the Royal Auxiliary Air Force, gradually replacing the de Havilland Mosquito in this capacity.

On 23 June 1948, the first production Vampire Fighter-Bomber Mk 5 (otherwise commonly designated as the FB.5), which had been modified from a Vampire F.3, carried out its maiden flight. The FB.5 retained the Goblin III engine of the F.3, but featured armour protection around engine systems, wings clipped back by 1 ft (30 cm), and longer-stroke main landing gear to handle greater takeoff weights and provide clearance for stores/weapons load. An external tank or 500 lb (227 kg) bomb could be carried under each wing, and eight "3-inch" rocket projectiles ("RPs") could be stacked in pairs on four attachments inboard of the booms. Although an ejection seat was considered, it was not fitted.

At its peak, a total of 19 RAF squadrons flew the Vampire FB.5 in Europe, the Middle East and the Far East. By far, the theatre in which the largest number of Vampires were stationed was Germany; this extensive deployment by the RAF has been viewed as one measure of the emerging Cold War climate between West and East Europe, as well as being a reaction to events such as the Korean War and the Berlin Blockade. Vampires were also operated by a number of active and reserve squadrons stationed in the UK.

RAF Vampires were used in action in the Far East during the Malayan Emergency in the late 1940s and early 1950s. The Vampire FB.5 typically undertook attack missions with rockets and bombs against targets often located in remote jungle areas common in Malaysia. The Vampire FB.5 became the most numerous single-seat variant of the type, 473 aircraft having been produced.

Experience of Vampire operation in tropical climates led to the development of new models featuring refrigeration equipment for pilot comfort and increasingly powerful models of the Goblin engine, to counter the degradation of performance in hot conditions. The RAF decided to adopt a new model of the Vampire featuring the Goblin 3 engine. Accordingly, in January 1952, the first Vampire FB.9 was introduced to service and were first used by the Far East Air Force, soon replacing its older FB.5 aircraft. The FB.9 was deployed to various parts of the Middle East and Africa. In use against Mau Mau insurgents in Kenya, from 1954, it was gradually replaced by the de Havilland Venom, a swept wing development of the Vampire.

The Vampire NF.10 served from 1951 to 1954 with three squadrons (23, 25 and 151) but was often flown in daytime as well as night time. After its replacement by the De Havilland Venom, these aircraft underwent conversion to the NF(T).10 standard, after which they were operated by the Central Navigation and Control School at RAF Shawbury. Other aircraft were sold on to the Indian Air Force for further use.

By 1953, the Vampire FB.5 was being increasingly considered to be obsolete, having not kept up with the advancements made on the Meteor 8. The RAF eventually relegated the single-seat Vampire to advanced training roles in the mid-1950s, and the type had been generally phased out of RAF service by the end of the decade.

The final variants of the Vampire was the T (trainer) aircraft. Being first flown from the old Airspeed Ltd factory at Christchurch, Hampshire on 15 November 1950, production deliveries of the Vampire trainer began in January 1952. Over 600 examples of the T.11 were produced at Hatfield and Chester and by Fairey Aviation at Manchester Airport. By 1965, the Vampire trainer had been mostly withdrawn, its replacement in the training role being the BAC Jet Provost; only a small number of Vampire T.11s remained in service, typically for the training of foreign students until these were too were retired in 1967.

A small number of aircraft that were used in secondary roles carried on in these capacities until the withdrawal of the last operational aircraft from service with No. 3 Civilian Anti-Aircraft Co-operation Unit at Exeter at the end of 1971. A single aircraft continued to be flown and remained in official service with the RAF as part of the "Vintage Pair" display team (along with a Gloster Meteor); however, this aircraft was lost as a result of a crash in 1986.

Royal Navy

The Admiralty had immediately taken great interest in the Vampire following a series of carrier-landing trials which had been conducted on the aircraft carrier HMS Ocean using the modified third prototype of the Vampire in December 1945. At one point, the service had been allegedly considering the adoption of the type as the standard naval fighter to equip the Fleet Air Arm with; however, according to Mason, there had been a prevailing attitude that carrier operations lacked the flexibility to enable combat operations to be conducted with jet aircraft while at sea due to factors such as jet blast and the limited range of initial models. In 1947, the Royal Navy decided to place an order for a navalised variant of the Vampire FB.5, which had been separately ordered by Air Ministry; the navalised model was quickly given the name Sea Vampire.

The Sea Vampire has several key differences from their land-based counterparts. It could be easily distinguished be the presence of a V-section arrestor hook that retracted to a high-mounted position above the jet pipe. The Sea Vampire was fitted with enlarged air brakes and landing flaps for superior low speed control during landing approaches, along with elevated load factors to account for the greater stresses involved in carrier landings.

On 15 October 1948, the first Sea Vampire performed its maiden flight. A pair of prototypes were followed by 18 production aircraft which were used to gain experience in carrier jet operations before the arrival of the two-seat Sea Vampire T.22 trainers. The Sea Vampire was initially delivered to 700 Naval Air Squadron and 702 Naval Air Squadron, soon replacing their piston-engine powered de Havilland Sea Hornets.

Australia

In 1946, approval was given for the purchase of an initial 50 Vampire fighter aircraft for the RAAF. The first three machines were British-built aircraft, an F1, F2 and FB.5, and were given serial numbers A78-1 to A78-3. The second aircraft, the F2 (A78-2), was significant in that it was powered by the more powerful Rolls-Royce Nene jet engine, rather than the standard Goblin.

All of the 80 F.30 fighters and FB.31 fighter-bomber Vampires that were subsequently built by de Havilland Australia were powered by Commonwealth Aircraft Corporation (CAC) versions of the Nene engine manufactured under licence at their facility in Melbourne. The Nene required a greater intake cross-section than the Goblin, and the initial solution was to mount auxiliary intakes on top of the fuselage behind the canopy. Unfortunately these intakes led to elevator blanking on formation of shock waves, and three aircraft and pilots were lost in unrecoverable dives. All Nene-engined aircraft were later modified to have the auxiliary intakes beneath the fuselage, thus avoiding the problem.

In June 1949, the first Vampire F.30 fighter (A79-1) made its first flight; it was followed by 56 more F.30 variants before the final 29 aircraft were completed as FB.31s, being fitted with strengthened and clipped wings along with underwing hardpoints. A single F.30 was also converted to the F.32 standard, which was mostly identical to the Vampire FB.9 save for the addition of climate control conditioning. In 1954, all single seat Vampires were retired by the RAAF, but remained in service in Citizen Air Force squadrons until the early 1960s.

In addition, the Vampire T.33, T.34 and T.35 were used by the RAAF and the Royal Australian Navy (RAN) (known as Mk33 through to Mk35W in RAAF service) and many were manufactured or assembled at de Havilland Australia's facilities in Sydney. The Mk35W was a Mk35 fitted with spare Mk33 wings following overstress or achievement of fatigue life. Vampire trainer production in Australia amounted to 110 aircraft, and the initial order was filled by 35 T.33s for the RAAF, deliveries being made in 1952 with five T.34s for the RAN delivered in 1954. The trainers remained in service in the RAAF until 1970 while RAN Vampires were retired in 1971.

Canada

In 1946, a single Vampire F.1 began operating on an evaluation basis in Canada at the Winter Experimental Establishment in Edmonton. The Vampire F.3 was selected as one of two types of operational fighters for the Royal Canadian Air Force (RCAF) and was first flown in Canada on 17 January 1948 where it went into service as a Central Flying School training aircraft at RCAF Station Trenton. Operating a total of 86 aircraft, the Vampire F.3 became the first jet fighter to enter RCAF service in any significant numbers.

The Vampire had the function of introducing Canadian fighter pilots not only to jet propulsion, but also to other amenities such as cockpit pressurisation and the tricycle landing gear arrangement. It proved to be a popular aircraft, being easy to fly and often considered a "hot rod." In Canadian service, the Vampire served in both operational and air reserve units (400, 401, 402, 411, 438 and 442 squadrons). During the late 1950s, the type was retired and was replaced in RCAF service by the Canadair Sabre.

Egypt

The Egyptian Air Force received its first of a planned 66 Vampire FB52s in December 1950, eventually receiving 50 from de Havilland production. An order for 12 Vampire NF.10 night fighters was cancelled owing to an arms embargo and the aircraft were acquired by the RAF. A factory was built at Helwan to build the Vampire under licence, but political disputes between Egypt and the United Kingdom over the presence of British troops in Egypt led to the project being delayed, before being abandoned following the Egyptian revolution of 1952. Instead, Egypt turned to Italy, and purchased 58 ex-Italian Air Force FB52As, using Syria as an intermediary, with deliveries from 1955 to 1956.

By 1954, Egypt was operating a fleet of 49 Vampires, which had been acquired from both Italy and Britain, in the fighter-bomber role. In 1955, a further 12 Vampire trainers were ordered, deliveries of which started in July that year. On 1 September 1955, in a response to an Israeli commando raid on an Egyptian-held fort at Khan Yunis, four Egyptian Vampires crossed into Israeli airspace, but were intercepted by Israeli Meteor jets, with two Vampires being shot down. By 1956, Egyptian Vampires were in the process of being replaced in the front-line fighter role by the much more capable Mikoyan-Gurevich MiG-15 and MiG-17 swept-wing fighters, and several Vampires were given to Saudi Arabia and Jordan. During the Suez Crisis, the Egyptians mainly used their Vampires for ground-attack missions against the advancing Israeli forces, particularly at the Mitla Pass, and are recorded as having lost a total of four Vampires in combat with Israeli jet aircraft. Several more were destroyed on the ground by Anglo-French air raids.

Finland

The Finnish Air Force received six FB.52 Vampires in 1953. The model was nicknamed "Vamppi" in Finnish service. An additional nine twin-seat T.55s were purchased in 1955. The aircraft were assigned to 2nd Wing at Pori, but were transferred to 1st Wing at Tikkakoski at the end of the 1950s. The last Finnish Vampire was decommissioned in 1965.

France

As part of a larger effort to build up the post-war French Air Force, a number of Goblin-powered Vampire FB.5s were delivered to France from 1949 onwards. This variant of the Vampire was subsequently manufactured under licence by Sud-Est at Marignane, the first 67 aircraft were assembled from British-produced components and were standard aircraft for the most part; these were followed by a further 183 Vampires, which incorporated a greater proportion of French-produced elements. The French developed the FB.53 model, a Nene-powered variant, which was named in French service as the Mistral. A total of 250 Mistrals were built, equipped with Hispano-Suiza built engines, French ejector seats and enlarged wing root ducts. On 2 April 1951, the first Mistral made its maiden flight.

India

No. 7 Squadron, Indian Air Force (IAF) received Vampires in January 1949. No. 17 Squadron IAF also operated the type. No. 37 Squadron IAF flew a number of Vampire NF54 night reconnaissance missions over Goa during the 1961 Indian annexation of Portuguese India, sometimes coming under anti-aircraft fire.

On 1 September 1965, during the Indo-Pakistani War, No. 45 Squadron IAF responded to a request for strikes against a counter-attack by the Pakistani Army (Operation Grand Slam), and twelve Vampire Mk 52 fighter-bombers were successful in slowing the Pakistani advance. However, the Vampires encountered two Pakistan Air Force (PAF) F-86 Sabres, armed with air-to-air missiles; in the ensuing dogfight, the outdated Vampires were outclassed. One was shot down by ground fire and another three were shot down by Sabres. The Vampires were withdrawn from front line service after these losses.

Italy

The Vampire was procured by Italy to equip the Italian Air Force. The type was licensed-manufactured by Macchi at Varese and Fiat at Turin, who constructed a total of 80 Vampire FB.52As. Italy later ordered 14 Vampire NF.10s, designated the NF.52.

Norway

The Royal Norwegian Air Force (RNAF) purchased a total of 20 Vampires F.3s, 36 FB.52s and six T.55 trainers. The Vampire was in Norwegian use as a fighter from 1948 to 1957, equipping a three-squadron Vampire wing stationed at Gardermoen. In 1957, the type was withdrawn when the RNAF decided to re-equip with the Republic F-84G Thunderjet. In 1955, the Vampire trainers were replaced by the Lockheed T-33, these aircraft were returned to the United Kingdom and saw later use by the Royal Air Force.

Sweden

In 1946, the Swedish Air Force purchased its first batch of 70 FB 1 Vampires, having been looking for a jet-powered fighter to replace its outdated SAAB 21 and J 22 aircraft of its fighter force. In Swedish service, the Vampire received the designation J 28A, it was assigned to the F 13 Norrköping Wing. The type soon provided such good service that the Vampire was soon selected to serve as the backbone of the fighter force. In 1949, a total of 310 of the more modern FB.50s, designated J 28B, which were based on the Vampire FB.5, were procured. The last of these was delivered in 1952, after which all piston-engined fighters were decommissioned. In addition, a total of 57 two-seater DH 115 Vampires, designated J 28C, were also used for training purposes.

In 1956, the Swedish Vampires were retired from the fighter role; it was replaced in service with the J 29 (SAAB Tunnan) and J 34 (Hawker Hunter). In 1968, the final Vampire trainer was retired.

Switzerland

In 1946, the Swiss Air Force purchased an initial four Vampire F.1s, one of which crashed on 2 August 1946 while the other three remained in service until 1961. In 1949, the Swiss government signed a contract to locally manufacture the Vampire FB.6 in Switzerland using British-built Goblin engines; accordingly, a batch of 85 Vampire FB.6s were produced. In 1952, the first production Vampire NF.10 was delivered to Switzerland for evaluation purposes.

In 1949, the first batch of 75 Vampire Mk.6 (J-1005 to J-1079) was purchased. Most of these were phased out of service in 1968/1969, the last aircraft being withdrawn in 1973. A second batch of 100 Mk.6 aircraft (J-1101 to J-1200) were built under licence by a consortium of Swiss aviation companies, including Eidgenössische Flugzeugwerke Emmen, Pilatus Aircraft and Flug- und Fahrzeugwerke Altenrhein. Aircraft from this batch were in use from 1951 to 1974, and were retained in storage until 1988. A further three DH-100 Mk.6 (J-1080 to J-1082) were subsequently built from remaining spare parts. A force of 39 DH-115 Mk 55 Vampire two-seat trainers (U-1201 to U-1239) were also in service from 1953 to 1990.

Rhodesia

The Rhodesian Air Force acquired 16 Vampire FB.9 fighters and a further 16 Vampire T.11 trainers in the early 1950s, its first jet aircraft, equipping two squadrons. These were regularly deployed to Aden between 1957 and 1961, supporting British counter-insurgency operations. 21 more two-seaters and 13 single-seaters were supplied by South Africa in the late 1960s and early 1970s. Rhodesia operated Vampires until the end of the bush war in 1979. In 1977, six were pressed into service for Operation Dingo. They were eventually replaced by the BAE Hawk 60 in the early 1980s. After 30 years service, they were the last Vampires used on operations anywhere.

Variants

DH.100: three prototypes to specification E.6/41.

LZ548 first flown 20 September 1943

LZ551 first flown 17 March 1944 and modified for deck landing trials, the first jet aircraft to land on an aircraft carrier, on display in 2013 at the Fleet Air Arm Museum.

MP838 first flown on 21 January 1944, the first armed aircraft.

Vampire Mk I: single-seat fighter version for the RAF; 244 production aircraft being built.

Mk II: three prototypes, with Rolls-Royce Nene turbojet engine. One built and two conversions.

F.3: single-seat fighter for the RAF. Two prototypes were converted from the Mk 1; 202 production aircraft were built, 20 were exported to Norway

Mk IV: Nene-engined project, not built.

FB.5: single-seat fighter-bomber version. Powered by the Goblin 2 turbojet; 930 built for the RAF and 88 for export.

FB.6: single-seat fighter-bomber. Powered by a Goblin 3 turbojet; 178 built, 100 built in Switzerland for the Swiss Air Force.

Mk 8: Ghost-engined, one conversion from Mk 1.

FB.9: tropicalised fighter-bomber through addition of air conditioning to Mark 5. Powered by Goblin 3 turbojet; 326 built, mostly by de Havilland, but also by Fairey Aviation.

Mk 10 or DH.113 Vampire: Goblin-powered two-seater prototype; two built.

NF.10: two-seat night fighter version for the RAF; 95 built including 29 as the NF.54.

Sea Vampire Mk 10: prototype for deck trials. One conversion.

Mk 11 or DH.115 Vampire Trainer: private venture, two-seat jet trainer prototype.

T.11: two-seat training version. Powered by a Goblin 35 turbojet; 731 were built by DH and Fairey Aviation. Some fitted with ejection seats.

Sea Vampire F.20: naval version of the FB.5; 18 built by English Electric.

Sea Vampire F.21: six aircraft converted from F.3s with strengthened belly and arrester hook for trials of undercarriage-less landings on flexible decks.

Sea Vampire T.22: two-seat training version for the Royal Navy; 73 built by De Havilland.

FB.25: FB.5 variants; 25 exported to New Zealand

F.30: single-seat fighter-bomber version for the RAAF. Powered by Rolls-Royce Nene turbojet; 80 built in Australia.

FB.31: Nene-engined, 29 built in Australia.

F.32: one Australian conversion with air conditioning.

T.33: two-seat training version. Powered by the Goblin turbojet; 36 were built in Australia.

T.34: two-seat training version for the Royal Australian Navy; five were built in Australia.

T.34A: Vampire T.34s fitted with ejection seats.

T.35: modified two-seat training version; 68 built in Australia.

T.35A: T.33 conversions to T.35 configuration.

FB.50: exported to Sweden as the J 28B; 310 built, 12 of which were eventually rebuilt to T.55 standard.

FB.51: export prototype (one conversion) to France.

FB.52: export version of Mk 6, 101 built; 36 exported to Norway and in use from 1949 to 1957

FB.52A: single-seat fighter-bomber for the Italian Air Force; 80 built in Italy.

NF.54: export version of Vampire NF.10 for the Italian Air Force; 29 being built.

T.55: export version of the DH.115 trainer; 216 built and six converted from the T.11.

S.N.C.A.S.E. 'Vampire' FB.53: Four pre-series single-seat fighter-bombers for the Armee de l'Air; 250 built in France, as the Sud-Est SE 535 Mistral.

S.N.C.A.S.E. SE-532 Mistral: Initial production version of the Mk.53 for the Armée de l'Air; 97 built.

S.N.C.A.S.E. SE-535 Mistral: Development of the SE-532, 150 built for the Armée de l'Air.

Operators

 Austria Australia Burma Canada Ceylon Chile Dominican Republic Egypt Finland France India Indonesia Iraq Ireland Italy Japan Jordan Katanga Lebanon Mexico New Zealand Norway Portugal Rhodesia Saudi Arabia South Africa Sweden  Switzerland Syria United Kingdom Venezuela Zimbabwe

Surviving aircraft

Although today over eighty Vampires are still airworthy, only a small number are flying.

Australia

One ex-Australian two-seat Mk 35W Vampire, S/N A79-617 was restored by Red Star Aviation of Hackettstown, New Jersey and then repatriated to Australia, where it is displayed in air shows. Two ex-RAAF Mk 35s (A79-637 and A79-665) are owned by the Historical Aircraft Restoration Society (HARS) at Illawarra Regional Airport, NSW, one of which is being restored to flying condition.

Canada

One ex-Swiss DH-115 Mk 55 two-seat Vampire (U-1213) is airworthy and flying with Waterloo Warbirds.

New Zealand

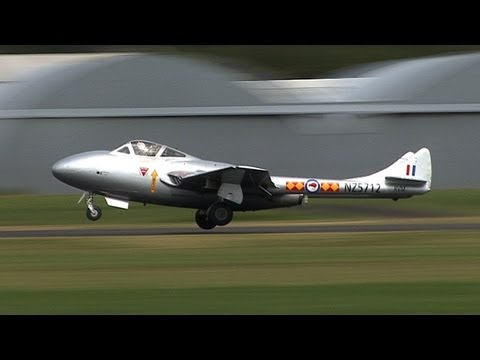

An ex-RNZAF T.11, on loan from RNZAF Museum, Christchurch was being restored at the New Zealand Fighter Pilots Museum.

Norway

Two other ex-Swiss vampires, a T.55 and an FB.52 are operated by the Norweigian Airforce Historical Squadron, and fly at many displays in Europe

South Africa

As of November 2015, serial numbers 276 and 277 are flown by the SA Air Force Museum and a third flyable Vampire is at Wonderboom Airport.

Sweden

Two ex-Swiss aircraft (T.11 and FB.6) are flying in Sweden.

Switzerland

Two DH-100 Mk.6(HB-RVH & HB-RVN) and two DH-115 Trainer (HB-RVF & HB-RVJ)

United Kingdom

An ex-Swiss Vampire T.55 was brought to the UK and repainted in RAF camouflage, and is now operated by the Classic Air Force out of Coventry airport registered as G-HELV. An airworthy Vampire T.11 is operated by the Vampire Preservation Group from North Weald in Essex, UK.

United States

Several ex-Swiss and ex-Australian Vampires operate as collectors' aircraft in the United States. Several other US-based Vampires are abandoned and in disrepair.

Aircraft on display

Examples of the de Havilland Vampire on display include:

Australia

RAAF Museum Point Cook Victoria. F.30.

Fighter World, Williamtown, NSW. A79-1 the first jet aircraft to be built in Australia.

Fleet Air Arm Museum, New South Wales, Sea Vampire Mk T.22 XG766

Forbes, New South Wales. Monument next to Lake Forbes, ex-RAAF A79-109.

Tamworth, Australia, Hands of Fame Park.

Temora Aviation Museum, New South Wales, ex-RAAF A79-617 (Flying condition)

Wagga Wagga, New South Wales, ex-RAAF A79-612 on pylon in Bolton Park next to the Sturt Highway

Wingham, New South Wales ex-RAAF A79-593 on pylon in Central Park.

Braybrook, Victoria, Central West Plaza shopping centre.

Gnangara Road, Landsdale, Perth, Western Australia - "Snoopy" on a pylon next to a machinery yard.

RAAF Townsville Aviation Heritage Centre (A79-656 and A79-804) DH.115 Vampire T.35

Austria

Austrian Airforce Museum Zeltweg/Styria (Zeltweg Air Base) (Vampire Two Seat Trainer).

Belgium

Royal Museum of the Armed Forces and Military History (Vampire T.11)

Canada

Aero Space Museum, Calgary, Alberta (Vampire F.3)

Alberta Aviation Museum (Vampire T.35 (1964))

Canada Aviation and Space Museum (Vampire Mk 3).

Canadian Warplane Heritage Museum.

Canadian Museum of Flight.

Comox Air Force Museum (Vampire Mk 3).

Reynolds-Alberta Museum.

Chile

Museo Nacional Aeronáutico y del Espacio, two examples, one is being refurbished for display during 2014.

One example exhibited inside Cerro Moreno, Antofagasta AFB.

One example as gate guardian of Diego Aracena AFB of Iquique.

An example placed in a restaurant of Antofagasta city in northern Chile.

A Vampire was previously placed on a pole in the intersection of Gran Avenida and Américo Vespucio in Santiago, Chile but was destroyed due to a bombing attack in the 1980s, remains are in the open at Los Cerrillos Museo Aeronáutico.

Czech Republic

Letecke Muzeum Kbely.

Finland

Aviation Museum of Central Finland (three examples of Vampire Mk 52 and two examples of Mk 55 in storage).

Finnish Aviation Museum (one Vampire Mk.52 and one Vampire T.55 trainer)

Germany

Technikmuseum Speyer

India

Indian Air Force Museum, Palam, New Delhi.

Naval Aviation Museum Goa.

Air Force Technical College, Bangalore.

Indonesia

Indonesian Air Force Dirgantara Mandala Museum, Adisutjipto Air Force Base, Yogyakarta.

Ireland

Collins Barracks (Dublin) as part of the National Museum of Ireland.

Israel

Israeli Air Force Museum.

Italy

Volandia (DH-100 FB.6).

Italian Air Force Museum (DH-113 NF Mk.54).

Japan

Japan Air Self-Defense Force Hamamatsu Air Base Publication Center in Hamamatsu, Japan (Vampire T.55) 63-5571 (Formerly G-5-14).

Lebanon

Lebanese Air Force Museum at Rayak Air Base in Rayak. A de Havilland Vampire T.55 is on display.

Malta

Malta Aviation Museum, Ta' Qali in Malta. (Vampire T.11).

México

Mexican Military Aviation Museum in Mexico. (Vampire Mk.I).

Mexican Army and Air Force Museum in Jalisco. (Vampire Mk.I).

New Zealand

Museum of Transport and Technology in Auckland, New Zealand (Vampire FB.9).

RNZAF Ohakea (Vampire FB.9) gate guard.

Royal New Zealand Air Force Museum.

Southward Car Museum.

Ashburton Aviation Museum (Vampire T.11).

Poland

Polish Aviation Museum, Kraków, Swiss-built Mk.6.

Saudi Arabia

Royal Saudi Air Force Museum.

South Africa

SAAF 205 FB.52 South African Air Force Museum, AFB Port Elizabeth, Static display.

SAAF 208 FB.52 South African Air Force Museum, AFB Ysterplaat, Cape Town, Static display.

SAAF 229 FB.52 South African Air Force Museum, AFB Swartkop, Pretoria, Static Display.

SAAF 277 TMk55 South African Air Force Museum, AFB Swartkop, Pretoria, Airworthy.

United Kingdom

F.1 VF301 on display at the Midland Air Museum, Coventry, England.

FB.5 WA346 under restoration at the Royal Air Force Museum Cosford, England.

T.11 XD382 on static display at East Midlands Aeropark.

T.11 XD447 on static display at East Midlands Aeropark.

T.11 XD593 on display at the Newark Air Museum, England.

T.11 XD626 on display at the Midland Air Museum, Coventry, England.

T.11 XE855 on display at the Midland Air Museum, Coventry, England.

T.11 XE935 on display at the South Yorkshire Aircraft Museum, Doncaster, England.

T.11 XH278 On display at Yorkshire Air Museum, Elvington, Yorkshire.

T.11 XH313 on display at the Tangmere Military Aviation Museum, England

T.11 XJ772 on display at the de Havilland Aircraft Heritage Centre, Hertfordshire, England

T.11 XK590 on display at the Wellesbourne Wartime Museum, Warwickshire, England.

T.11 XK624 on display at the Norfolk and Suffolk Aviation Museum, Flixton, England.

T.11 WZ515 on display at the Solway Aviation Museum, Carlisle, England.

T.11 WZ518 on display at the North East Aircraft Museum, Sunderland, England.

T.11 WZ590 on display at the Imperial War Museum Duxford, England.

T.11 on display at Headquarters No. 2247 (Hawarden) Squadron Air Training Corps, Hawarden, Flintshire, Wales.

T.11 XK623 on display at Caernarfon Airworld Museum.

T.22 XA109 on display at Montrose Air Station Heritage Centre, Angus, Scotland.

United States

Pima Air & Space Museum, adjacent to Davis-Monthan AFB in Tucson, Arizona.

Evergreen Aviation Museum in McMinnville, Oregon.

Planes of Fame Air Museum in Valle-Williams Arizona.

An ex-Swiss example is displayed at the Quonset Air Museum, North Kingstown, RI, USA, and is owned and flown by the Red Star Aviation Museum.

Venezuela

FB.52 (3C35) and T.11 (IE35) at the Aeronautics Museum of Maracay, Venezuela.

Specifications (Vampire FB.6)

Data from The Illustrated Encyclopedia of Aircraft, The De Havilland Vampire Mk. 5 & 9

General characteristics

Crew: 1

Length: 30 ft 9 in (9.37 m)

Wingspan: 38 ft (11.58 m)

Height: 8 ft 10 in (2.69 m)

Wing area: 262 ft² (24.34 m²)

Empty weight: 7,283 lb (3,304 kg)

Max. takeoff weight: 12,390 lb (5,620 kg)

Powerplant: 1 × de Havilland Goblin 3 centrifugal turbojet, 3,350 lbf (14.90 kN)

Performance

Maximum speed: 548 mph (882 km/h)

Range: 1,220 mi (1,960 km)

Service ceiling: 42,800 ft (13,045 m)

Rate of climb: 4,800 ft/min (24.4 m/s)

Armament

Guns: 4 × 20 mm (0.79 in) Hispano Mk.V cannon with 600 Rounds total (150 RPG).

Rockets: 8 × 3-inch "60 lb" rockets

Bombs: or 2 × 500 lb (225 kg) bombs or two drop-tanks
