Work begun 1992 Traffic automobile | Status In service Character expressway, twin-tube | |
 | ||
Opened December 22, 2007 (initial segment)March 7, 2015 (entire tunnel) Toll ¥530 to ¥930 (cars)¥1,030 to ¥1,850 (trucks)(with electronic toll collection)¥930-¥1,850 (cash) Route Shuto Expressway Central Circular Route (C2) | ||
Tokyo metropolitan expressway the yamate tunnel

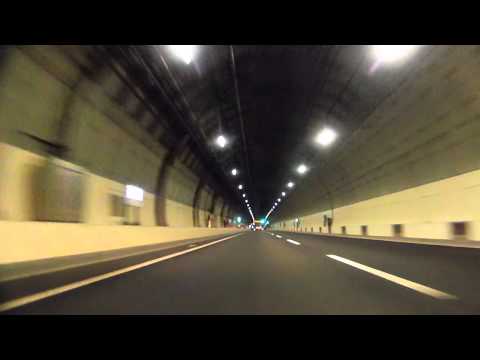

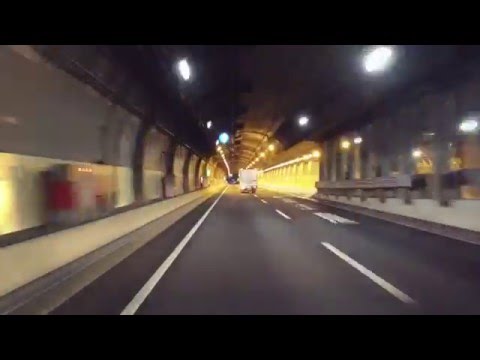

The Yamate Tunnel (山手トンネル, Yamate Tonneru) carries the Central Circular Route (C2) of the Shuto Expressway in Tokyo, Japan from the Takamatsu on-ramp in Toshima to near the Ōi Junction in Shinagawa. The overall length is 18.2 km.
Contents
- Tokyo metropolitan expressway the yamate tunnel
- Metropolitan yamate tunnel
- History
- Facilities
- Ramps and junctions
- Other underground viaducts
- Additional reading
- References
Lying 30 m below the surface, about 70% was constructed by the tunnelling shield method. The roadway consists of two lanes in each direction. Nearly all of the tunnel lies beneath Yamate Dori. On completion the Yamate Tunnel surpassed the Kan'etsu Tunnel on the Kan-Etsu Expressway, to become the longest road tunnel in Japan and the second longest road tunnel in the world. Most of the tunnel follows the route of Yamate Street (National Route 317).
Metropolitan yamate tunnel
History
Plans for an expressway on the route were first drawn up around 1970, initially in the form of an elevated expressway over the Meguro River between Shibuya and Oimachi. The elevated expressway plan was shelved shortly thereafter following concerns about environmental issues and local resident protests, but re-emerged in the 1990s in the form of a tunnel plan. The final plan for the southern portion of the tunnel, approved in 2004, followed Yamate Street and the Meguro River in order to minimize tunneling under private property.
Construction on the Yamate Tunnel began in 1992. The Takamatsu – Nishi Shinjuku segment opened on December 22, 2007. On the same date, an above-ground segment linking the tunnel to the Kumanochō Interchange in Itabashi and Toshima also opened. The 9.4 km section between Nishi Shinjuku and Ohashi opened on 28 March 2010. The last section linking Ohashi to the Bayshore Route opened on 7 March 2015.
Facilities
The tunnel has many operational and safety facilities. Among them are emergency telephones and cameras at 100 m intervals. Fire-safety equipment includes infrared sensors, fire extinguishers, foam sprayers, and pushbutton alarms. Emergency exits leading to a separate emergency path are located no more than 350 m apart. Stairways lead up to Yamate Street. A duct running parallel to the roadway supplies fresh air and removes exhaust. Dust-collection systems are designed to remove 80% of particulates from the air.
The Ohashi Junction in Meguro, connecting the tunnel to Route 3, required construction of stacked elliptical ramps 400 meters in circumference and 175 meters in diameter, similar in size to the National Stadium track. For soundproofing reasons, the junction was encased in over 120,000 cubic meters of concrete. The structure was used as the centerpiece of an urban planning project that includes the Meguro Sky Garden park and several high-rise condominium towers.
Ramps and junctions
Other underground viaducts
The Yamate Tunnel passes above the Yūrakuchō and Ōedo subway lines. It crosses below the Tōzai and Marunouchi subway lines, as well as the Keiō and Keiō New Lines and the Tōkyū Den-en-toshi Line. Additionally, the tunnel parallels the Ōedo Line along a segment between Nakai and Nishi Shinjuku Gochome Stations. Nakai and Nakano Sakaue Stations, lying beneath the Yamate Tunnel, have escalators that pass between Yamate's two tunnels.
