Rhodamine 6G

Rhodamine 6G /ˈroʊdəmiːn/ is a highly fluorescent rhodamine family dye. It is often used as a tracer dye within water to determine the rate and direction of flow and transport. Rhodamine dyes fluoresce and can thus be detected easily and inexpensively with instruments called fluorometers. Rhodamine dyes are used extensively in biotechnology applications such as fluorescence microscopy, flow cytometry, fluorescence correlation spectroscopy and ELISA.

Contents

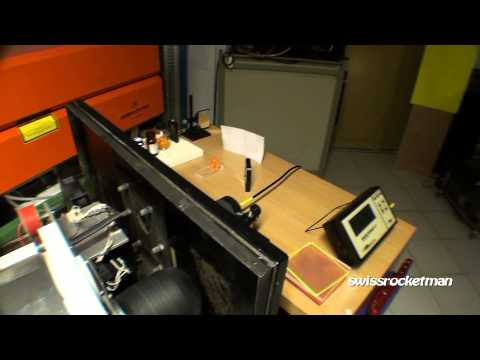

• 7mj rhodamine 6g dye laser pumped by a 14mj tea n2 laser
• Solubility
• References

Rhodamine 6G is also used as a laser dye, or gain medium, in dye lasers, and is pumped by the 2nd (532 nm) harmonic from an Nd:YAG laser or nitrogen laser. The dye has a remarkably high photostability, high fluorescence quantum yield (0.95), low cost, and its lasing range has close proximity to its absorption maximum (approximately 530 nm). The lasing range of the dye is 555 to 585 nm with a maximum at 566 nm.

Rhodamine 6G usually comes in three different forms. Rhodamine 6G chloride is a bronze/red powder with the chemical formula C₂₇H₂₉ClN₂O₃. Although highly soluble, this formulation is very corrosive to all metals except stainless steel. Other formulations are less soluble, but also less corrosive. Rhodamine 6G perchlorate (C₂₇H₂₉ClN₂O₇) comes in the form of red crystals, while rhodamine 6G tetrafluoroborate (C₂₇H₂₉BF₄N₂O₃) appears as maroon crystals.
