Operated by

Peak Rail

Closed

1968

Phone

+44 1629 580381

Stations

3

Length

6,437 m

Opened

1863

Peak Rail

Original gauge

4 ft 8 ⁄2 in (1,435 mm) standard gauge

Preserved gauge

4 ft 8 ⁄2 in (1,435 mm)

1987

Peak Rail acquires Darley Dale and Track Relay work begins

Address

Matlock Station, Station Yard, Matlock DE4 3NA, UK

Hours

Open today · 10AM–5PMSaturday10AM–5PMSunday10:30AM–5PMMonday10AM–5PMTuesday10AM–5PMWednesday10AM–5PMThursday10AM–5PMFriday10AM–5PMSuggest an edit

Similar

Rowsley South railway st, Midland Railway – Butterley, Matlock railway station, Heights of Abraham, National Tramway Museum

Peak rail july 3rd 2016 4k ultra hd


Peak Rail is a preserved railway in Derbyshire, Central England, which operates a steam and heritage diesel service for tourists and visitors to both the Peak District and the Derbyshire Dales.

Contents

The preserved railway line is over three and a half miles (5.6 km) in length and, as of April 2016, operates train services from Matlock station (shared with Derwent Valley Line services from Derby via Ambergate) via the site of Matlock Riverside and Darley Dale to Rowsley South.

Peak Rail intends to extend its operational services northward to Bakewell when resources allow, extending to a total of 4.25 miles (6.84 km). Beyond Bakewell, the railway trackbed is used by the Monsal Trail, but a restored line could operate single track alongside (as is done by the heritage Avon Valley Railway) once safety issues are resolved.

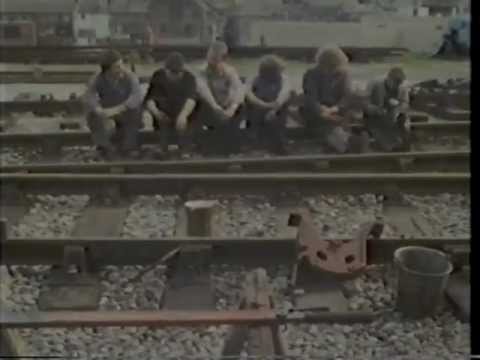

We re getting there peak rail open space bbc2


First preservation attempts with the Buxton Steam CentreEdit

In 1975, the Peak Railway Preservation Society was established and opened a site at the now-closed Buxton Steam Centre with restoration facilities and a 300-yard operating line. They also operated a successful restaurant ("The Palatine") in two railway carriages on site. Proposals were put forward to extend the operating line onto the single track freight line towards Peak Forest, but were not met with success.

Closure of the Buxton Steam Centre and relocation to Darley DaleEdit

In the 1980s, Peak Rail relocated its headquarters to Darley Dale and by 1991 the railway had reopened the section of line between Matlock Riverside and Darley Dale.

In 1997, the line was extended within a half-mile south of the Derbyshire village of Rowsley itself. A new station was constructed next to the site of the former loco shed at Rowsley South. The station was capable of holding long incoming charter trains and had a car park to accommodate a large number of cars and other vehicles. The station at Rowsley South has also been utilised for local charity events and cycle races, as well as steam and vintage vehicle rallies. With its location on the edge of the Peak District, the railway joins other attractions in the area, including Bakewell, Haddon Hall, Chatsworth House, the Rowsley shopping village, the village of Rowsley and the Cauldwell's Mill museum.

Extension to Matlock (Network Rail) stationEdit

After the construction of the Matlock by-pass, and the new Sainsburys supermarket in the former Cawdor Quarry, a new track alignment and track layout was installed between Matlock Riverside and Matlock (Network Rail) station to provide a new connection to the national network.

Discussions regarding access to the Matlock down platform have resulted in an agreed 50-year lease, including the re-connection of the Network Rail and Peak Rail metals. The rails were originally disconnected due to a rearrangement of Network Rail track as a part of other redevelopments in the area south of the present Matlock Riverside station.

The extension to Matlock (NR) was finally re-opened on 2 July 2011.

Future developmentsEdit

In 2004, Derbyshire County Council published a study which concluded that reopening the former line for a local service was technically feasible and that the track bed should remain clear of development, but it was not an economic possibility in the near future.

Expansion towards BakewellEdit

An extension towards Bakewell would include moving Rowsley station into the village, with full restoration of the former Rowsley Station site to its former condition, and expansion towards Bakewell via Haddon Halt:

  • Phase 1 would restore and re-lay track to the site of Rowsley station in Rowsley itself, plus replacement of one or two bridges.
  • Phase 2 would be reinstating a bridge joining up to Rowsley viaduct above a nearby road, followed by restoration of both the viaduct and trackbed as far as a proposed Haddon Halt.
  • Phase 3 would then be restoring both the old Haddon Tunnel and Coombes Road viaduct to former use before relaying track to a few metres from the edge of the Bakewell station site itself.
  • Phase 4 would remove infill between the platforms, then relaying track into the old station site and then restoring the site to its former use.

    • Negotiations for the lease of the mile of trackbed to the north have resulted in the offer of a 99-year lease, from Rowsley South to Rowsley village. However, the extension is unlikely to happen before 2016–17 or until finance becomes available.

    Monsal TrailEdit

    Derbyshire County Council and the Peak Planning Board support a scheme to develop the trackbed from Bakewell to Blackwell Mill as a cycle track, the Monsal Trail. With a stated aim to extend to Matlock in the long term, this part of the plan is currently subject to a planning application showing a cycle path broadly following the trackbed as far south as Darley Dale. These plans acknowledge the existing railway as well as phase one of the extension project but make no mention of the proposed extension beyond Rowsley village toward Bakewell.

    Special eventsEdit

    The railway operates special events as well as the normal timetabled services. These include "Santa Specials" for children and families, and the "Warring Forties" event, with battle re-enactments of World War Two skirmishes involving military vehicles and re-enactors on the site; Diesel Galas; and local music festivals.

    A restaurant service called "The Palatine" operates on given days throughout the season, whilst at Darley Dale there is a museum of the line's local history.

    Operating groups at the railwayEdit

    Several railway preservation groups are based at the railway, often working in support of and cooperation with Peak Rail. These include:

  • The Heritage Shunters Trust, which has a large collection of former British Railways and private company shunters.
  • The Derbyshire Dales Narrow Gauge Railway, which operated narrow gauge trains over a short running line by the picnic ground at Rowsley. Presently all services on the DDNGR are cancelled until further notice.
  • The LMS Carriage Association, which restore examples of L.M.S and other coaching stock.
  • The Renown Repulse Locomotive Group, responsible for the restoration of two former British Rail Class 50 locomotives.
  • Andrew Briddon, who has several of his locomotives based upon the railway.
  • Other locomotive and stock owners who are restoring wagons and stock upon the line

    • For further details see Rowsley South.

    OperationalEdit

  • Hunslet Austerity 0-6-0ST No. 3883 built in 1944. (previous number WD 168 Lord Phil)

    • Undergoing overhaulEdit

  • GWR 4575 Class 2-6-2T No. 4588, built in 1927. Formerly based at the Dartmouth Steam Railway she was moved to Tyseley Locomotive Works in 2015 and is being overhauled at Tyseley prior to moving to Peak Rail.
  • RSH No. 7136 built in 1944. (Carries No. 68013 "Royal Pioneer". Previously No.WD150)

    • StoredEdit

  • GWR 4575 Class 2-6-2T No. 5553, built in 1928. Owned by Pete Waterman. Moved in 2015 from Crewe Heritage Centre and will be overhauled on site.
  • GWR 5205 Class 2-8-0T No. 5224, built in 1924. Owned by Pete Waterman. Moved in 2015 from Crewe Heritage Centre and will be overhauled on site.

    • OperationalEdit

  • BR 0-4-0 Class 01 no. D2953 [1] BR Green. Built in 1956.
  • BR 0-4-0DH Class 02 no. D2854. BR Green. Built in 1960.
  • BR 0-6-0DM Class 03 no. 03099. BR Blue. Built in 1960.
  • BR 0-6-0DM Class 03 no. 03113. BR Blue. Built in 1960.
  • BR 0-6-0DM Class 03 no. D2139 BR Green. Built in 1960.
  • BR 0-6-0DM Class 04 no. D2284. BR Green. Built in 1960.
  • BR 0-6-0DE Class 07 no. 07001. BR Blue.
  • BR 0-6-0DE Class 08 no. 08016. BR Blue.
  • BR 0-6-0DE Class 09 no. 09001. EWS Red.
  • BR A1A-A1A Class 31 no. 31270. Regional Railways livery. Built in 1961.
  • BR 1Co-Co1 Class 44 no. D8 "Penyghent" [2]. BR Green. Built in 1959.
  • BR 0-6-0DE Class 97/6 no. 97654. Built in 1959.
  • Thomas Hill Vanguard 4wDH "Charlie" no. 265V regular works train loco. Built in 1975
  • Thomas Hill Vanguard 4wDH "Cheedale" no. 284V. Built in 1979
  • Drewry/Vulcan Foundry 0-4-0DM no. WD72229. Built in 1945
  • Hudswell Clarke 0-6-0DM "Ashdown" no. D1186. Built in 1959
  • Yorkshire Engine Co 0-4-0DH "James" no. 2675. Built in 1961.

    • Undergoing overhaul/restorationEdit

  • BR 0-6-0DM Class 04 no. D2205.
  • BR 0-4-0DM Class 06 no. 06003. BR Blue.
  • BR 0-6-0DH Class 14 no. D9525. BR Green. Built in 1965.
  • BR Co-Co Class 50 no. 50030 "Repulse" BR large logo blue. built in 1968.
  • Yorkshire Engine Co 0-6-0DH no. 2940 of 1965 "Libby"

    • StoredEdit

  • BR 0-4-0DH Class 02 no. D2866.
  • BR 0-4-0DH Class 02 no. D2868. BR Green. Built in 1960.
  • BR 0-6-0DM Class 03 no. 03027.
  • BR 0-6-0DM Class 03 no. 03180.
  • BR 0-6-0DM Class 03 no. D2199. BR Green. Built in 1961.
  • BR 0-6-0DM Class 04 no. D2229. Built in 1955.
  • BR 0-6-0DM Class 04 no. D2272.
  • BR 0-6-0DM Class 04 no. D2284.
  • BR 0-6-0DM Class 04 no. D2337. BR Green. Built in 1956.
  • BR 0-6-0DM Class 05 no. D2587. BR Green. Built in 1959.
  • BR 0-6-0DE Class 08 no. D3000. BR Black. Built in 1952.
  • BR 0-6-0DH Class 14 no. D9500.
  • BR Co-Co Class 37 no. 37152. BR Railfreight livery. Built in 1963.
  • BR Co-Co Class 50 no. 50029 "Renown" br large logo blue. built in 1968.
  • North British 0-6-0DH 27932 of 1962
  • North British 0-4-0DH 27097 of 1953 (oldest s.g. diesel hydraulic in the UK)
  • Brush Traction 0-6-0DE BT803 of 1979 (formerly with Tyne & Wear Metro and Channel Tunnel construction)
  • Yorkshire 0-4-0DH (2679 of 1961)

    • Undergoing overhaul/restorationEdit

  • BR Class 117 nos. 51354 and 51396 built in 1959.

    • Former ResidentsEdit

    UNFINISHED

    SteamEdit

    Note that the locations given may not be current as locomotives move between railways from time to time.

  • GWR 4073 Class 4-6-0 no 7027 Thornbury Castle. Undergoing restoration from Scrapyard condition at the Crosville Depot in Weston-Super-Mare.
  • LMS Stanier 8F Class 2-8-0 no 48624. Operational at the Great Central Railway, was originally painted in unauthentic LMS Crimson lake.

    • DieselEdit

    N/a

    Signalling on the railwayEdit

    There are four signal boxes on the route. Two boxes control the only two level crossings on the old Midland Railway main line route from Manchester to London St Pancras. The crossings are both in the Darley Dale area on the Peak Rail line. The third signal box is out of use, and came from Bamford in the Hope Valley. There are plans to move this structure to Rowsley South railway station for refurbishment and future operational use. The fourth is also being commissioned and came from Luffenham. It will control the Matlock area.

  • Church Lane Crossing: controls the section from Darley Dale to Rowsley South under the no signaller token block method, as well as the traditionally gated level crossing at Churchtown. Originally, this signal box came from Gorsey Bank level crossing on the nearby Wirksworth branch, the signals here are Midland Railway lower quadrant examples on wooden posts dating from 1927. The signal box operates the only current example of a preserved "Josslock" motor point, an electro-hydraulically worked electro-pneumatic point machine, whereby a standard electro-pneumatic point is driven by a hydraulic power pack.
  • Darley Dale Crossing: controls the section from Darley Dale to Matlock Riverside under the one train staff key, as well as the other gated level crossing at Station Road. Based on an L.M.S. ground level design, it was erected in 2007 to replace the older Midland style replica cabin which had become life-expired.
  • Darley Dale station: the passing loop at Darley Dale is worked using the Absolute Block method, with the signal box at the other end releasing the signal of the opposite signal box to allow trains to enter the applicable up or down loop line.
  • Matlock Riverside: an original BR cabin, formerly located at Luffenham junction. The restored cabin is mounted on a non prototypical stone-block base due to its exposed position. An internal staircase has also been fitted in the same manner to protect against vandalism. The 19-lever frame was recovered from Glendon North Junction. Mechanical interlocking allows the signals exiting and entering the loop via the Darley Dale end to be cleared in opposing directions when the cabin is switched out via the King lever locking.
  • Rowsley South: unused at present. Cabin was originally located at Bamford, it was moved to the up platform at Darley Dale initially but unused for many years. Eventually it was moved to Rowsley in January 2014, whereafter restoration began, it be used to control the loco shed sidings and yard exits as a shunt frame using a unique now in the UK though still widely used in Europe -wire driven point operation using the ex Barrow Hill sidings turnover style lever frame and point operating gear which has now been installed at Rowsley awaiting the cabin to be erected.

    • Two train runningEdit

    In late February 2007, the railway's 'Two-Train Running' project was completed and approved by HM Railway Inspectorate. Through improvements to infrastructure and signalling, this project allows two trains in steam on the line, utilising a refurbished and extended passing loop at Darley Dale. Each section of the railway is worked by a train staff, each with a key to operate the ground frames and electrical signal releases at the signal boxes and the ground frames at Rowsley South, Rowsley North, Darley South Yard sidings and Matlock Riverside.

    Darley Dale footbridgeEdit

    In mid-2009, the original ex-Midland Railway Darley Dale footbridge was purchased from the Midland Railway - Butterley with an aim towards restoration and eventual repositioning at its original location at Darley Dale. Part of this project requires the removal of the unused signal box structure to facilitate the erection of the footbridge. Fundraising for this ambitious project began in late 2009 and remains continuously.
