Carries Vehicle traffic Locale American Fork, Utah No. of spans Two Total length 108 m Location American Fork | Crosses I-15 Longest span 177 feet (54 m) Opened May 2011 Width 23 m | |
 | ||
Maintained by Utah Department of Transportation Address 22 E 1100 S St, American Fork, UT 84003, USA Owner Utah Department of Transportation Materials Steel, Reinforced concrete Similar Mount Timpanogos Utah Tem, American Fork City Hall, Bank of American Fork, American Fork, Harrington Elementary School | ||

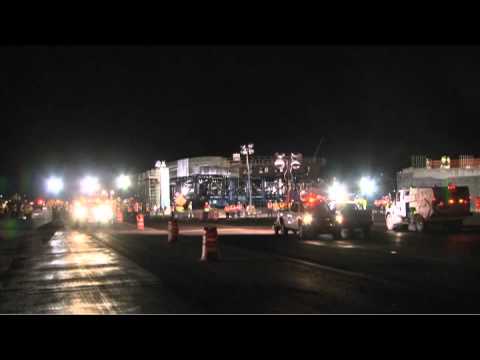

Sam white bridge move timelapse
The Sam White Bridge is a reinforced concrete and steel overpass beam bridge which crosses Interstate 15 in American Fork, Utah. The original bridge was named for Sam White, a former homesteader in the nearby city of Pleasant Grove. It had only 14 feet 7 inches (4.45 m) underpass clearance. The new bridge has an underpass clearance of 17 feet 3 inches (5.26 m), which exceeds the minimum standard for interstate bridges in the United States.
Contents
The new 354-foot, 3.82-million-pound (1.73-million-kg, 1910-short-ton, 1733-tonne) bridge was built on the side of the interstate—500 feet (150 m) from its final location—in order to reduce traffic impact. It was then moved into place over a five-hour period using self-propelled modular transporters, finishing the process three hours ahead of schedule. It is the longest two-span bridge to be moved in the Western Hemisphere, and the second longest in the world to be moved.
Utah Department of Transportation, state and federal transportation and construction officials from around the United States, as well as some from other countries, were present to view it being moved into place. An area of a nearby business park was set aside for the public to watch the bridge being moved into place.
