Crosses Mississippi River Longest span 825 feet (251 m) Total length 2,605 m Body of water Mississippi River Bridge type Cantilever bridge | Design Cantilever bridge Opened 1 May 1930 Area 2 ha Location Delta | |
 | ||
Carries 1 Kansas City Southern rail line, one service lane Locale Delta, Louisiana and Vicksburg, Mississippi Maintained by Kansas City Southern Railway Address Old Highway 80, Vicksburg, LA 39180, USA Similar Vicksburg Bridge, Helena Bridge, Greenville Bridge, Natchez–Vidalia Bridge, Gramercy Bridge | ||
American trains 1 old vicksburg bridge vicksburg ms

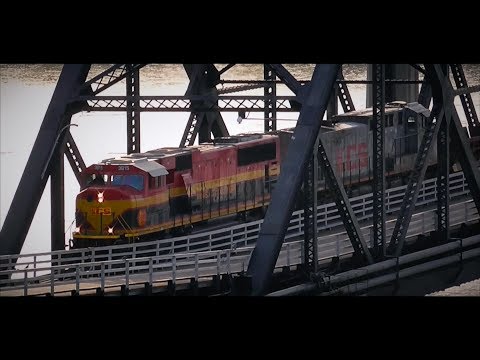

The Old Vicksburg Bridge, also known as Mississippi River Bridge, is a cantilever bridge carrying one rail line across the Mississippi River between Delta, Louisiana and Vicksburg, Mississippi.
Contents
Down in old vicksburg
History
Until 1998, the bridge was open to motor vehicles and carried U.S. Route 80 (US 80) across the Mississippi River, though one road lane runs through the bridge for inspection by workers. It was replaced by the new Vicksburg Bridge, a short distance down river, for vehicle crossings.
It was listed on the National Register of Historic Places in 1989.
During the period when the bridge was open to regular traffic a rather unusual system was used to handle the tractor-trailer truck traffic which used the bridge. Located at each end of the bridge, there were a pair of railroad styled signal towers, which required trucks to stop. At one time trucks were allowed to traverse the bridge along with other vehicle and train traffic. In order to do this the truck driver would pull the passenger side mirror in and then position his front passenger side tire against a rail located just off the roadway surface. Using this method trucks could meet and pass each other while traveling east or west. The most unnerving was going east and meeting a train moving westward on the trucks passenger side and another truck west bound on the drivers side. The signal towers prevented this from occurring anymore. Once stopped, the towers would close off traffic for all vehicles in both directions, and then allow trucks to cross the bridge alone, using the full width of both of the narrow lanes, as opposed to staying in just one lane. Due to numerous safety concerns, crossings by trucks were limited to day time only operation, with trucks being required to wait until dawn before being allowed on the bridge. The Mississippi River is roughly 2,320 miles long.
