Learjet 40

Updated on
Edit
Like
Comment
Share on FacebookTweet on TwitterShare on LinkedInShare on Reddit
Range

3,156 km

Wingspan

15 m

Length

17 m

Engine type

Garrett TFE731

Top speed

865 km/h

Cruise speed

852 km/h

Unit cost

9,500,000–9,500,000 USD

Learjet 40 httpss3euwest1amazonawscomimagesprivatef

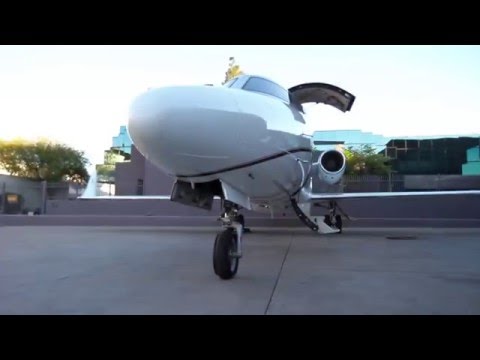

Learjet 40 engine run from the copilot s seat


The Learjet 40 (LJ40) is a light business jet produced by Bombardier Aerospace.

Contents

Learjet 40 n411aj


Design and development

Learjet 40 Learjet 40 Wikipedia

The Learjet 40 is derived from the Learjet 45, but with a shorter fuselage (by 24.5 inches/60 cm), and is powered by two Honeywell TFE731-20AR engines. These are known as the "AR" engines. The 40 model takes place of discontinued light Learjet 31a in Learjet model line, with several welcome performance and comfort improvements taken from 45 model.

Learjet 40 Premier Jet Aviation jetav Bombardier Learjet 40XR Specs and

The prototype aircraft, a rebuilt Model 45, first flew on August 31, 2002, and the first production aircraft performed its maiden flight on September 5, 2002. Both flights took place from the Wichita Mid-Continent Airport. The LJ40 entered into service in January, 2004.

Learjet 40 Learjet 40XR Buyer39s and Investor39s Guide Corporate Jet Investor

The Learjet 40XR is an upgraded version introduced in October, 2004, offering higher takeoff weights, faster cruise speeds and faster time-to-climb rates as compared to the LJ40. The increases are due to the upgrading of the engines to the TFE731-20BR configuration. These are the "BR" engines. LJ40 owners can upgrade their aircraft through the incorporation of several service bulletins.

Specifications (Learjet 40)

General characteristics

Learjet 40 Bombardier Learjet 40XR Price Specs Interior

  • Crew: 2 (minimum)
  • Capacity: 7 passengers
  • Length: 55.56 ft (16.93 m)
  • Wingspan: 47 ft 9 3/8 in (14.56 m)
  • Height: 14.13 ft (4.31 m)
  • Wing area: 311.6 ft ² (28.95 m²)
  • Loaded weight: 13,633 lb (6,200 kg)
  • Max. takeoff weight: 21,000 lb (9,545 kg)
  • Cabin Height: 4.9 ft (1.5 m)
  • Cabin Width: 5.1 ft (1.55 m)
  • Cabin Length: 19.75 ft (6.02 m)
  • Cabin Volume: 368 ft³ (10.42 m³)
  • Door Height: 4.8 ft (1.46 m)
  • Door Width: 2.5 ft (0.76 m)
  • Baggage Volume Internal: 15 ft³ (0.425 m³)
  • Baggage Volume External: 50 ft³ (1.42 m³)
  • Maximum Landing Weight: 19,200 lb (8,727 kg)
  • Usable Fuel: 5,325 lb (2,420 kg)
  • Payload with Full Fuel: 993 lb (451 kg)
  • Maximum Payload: 2,305 lb (1,047 kg)
  • Powerplant: 2 × Honeywell TFE731-20AR or -20BR in the Lear 40XR turbofan engines, 3500 lb (15.56 kN) each

    • Performance

  • Maximum speed: 464 kn (Mach .81) (534 mph, 865 km/h)
  • Cruise speed: 457 kn (526 mph, 852 km/h)
  • Range: 1,692 nmi (1,947 mi, 3,156 km)
  • Service ceiling: 51,000 ft (15540 m)
  • Rate of climb: 2,820 ft/min (14.32 m/s)
  • Long Range Cruise Speed: 425 kn (489 mph, 793 km/h)
  • Range – Seats Full: 1,552 nmi (1,786 mi, 2,895 km)
  • Balance Field Length: 4,285 ft (1,306 m)
  • Landing Distance (Factored): 4,442 ft (1,354 m)
  • Rate of Climb – One Engine Out: 710 ft/min (3.6 m/s)
  • One Engine Inoperative Service Ceiling at Maximum Weight: 27,000 ft (8,200 m)
