Top speed  877 km/h
Length  13 m
Engine type  General Electric CJ610
Manufacturer  Learjet
Wingspan  11 m
Unit cost  200,000–900,000 USD
First flight  January 24, 1966
Learjet 24 Learjet Learjet 24 Specifications Technical Data Description

Flyersteam learjet 24 xa lnk taxi and takeoff from lax

The Learjet 24 is an American six-to-eight-seat (two crew and four to six passengers) twin-engine, high-speed business jet, which was manufactured by Learjet as the successor to the Learjet 23.


Learjet 24 Learjet 24 Photos AirplanePicturesnet

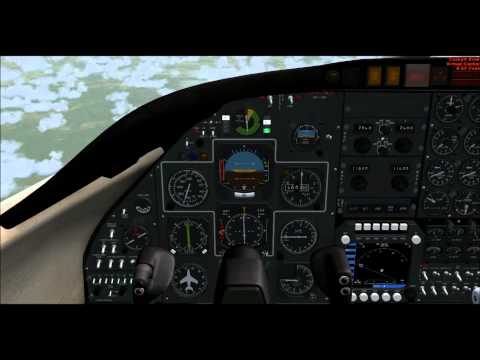

fsx learjet 24


Learjet 24 httpsuploadwikimediaorgwikipediacommonsthu

The Learjet 24 was designed as an improved version of the Learjet 23, which was limited to 12,500 pounds (5,700 kg) gross weight. Engineers designed the model 24 to accept up to the full 13,500 pounds (6,100 kg) gross weight permitted by FAR-25 standards.

Other improvements introduced in the Learjet 24 included:

Learjet 24 Learjet 24 Photos AirplanePicturesnet
  • increased cabin pressurization, to allow a higher operating altitude
  • the addition of one extra window on each side of the cabin
  • more powerful engines
  • a new windshield
  • auxiliary fuel in wing tip tanks
  • a fire-extinguishing system for the engines
  • With these changes, the LJ24 became the first business jet to be certified under FAR-25.

    The first flight of a Learjet 24 took place on January 24, 1966. From May 23 to 26, 1966, a Learjet 24 flew around the world in 50 hours and 20 minutes flying time as a demonstration of its capabilities. Different variants were the 24A, B, C, D, E and F, with changes of takeoff weight, in-fuselage fuel tank, range, cabin and engines.

    Altogether 259 Model 24s were built, and in 2001, there were still 210 Learjet 24s in use. Thirty-nine LJ24s have been lost through accidents.

    Noise compliance

    In 2013, the FAA modified 14 CFR part 91 rules to prohibit the operation of jets weighing 75,000 pounds or less that are not stage 3 noise compliant after December 31, 2015. The Learjet 24 is listed explicitly in Federal Register 78 FR 39576. Any Learjet 24s that have not been modified by installing Stage 3 noise compliant engines or have not had "hushkits" installed for non-compliant engines will not be permitted to fly in the contiguous 48 states after December 31, 2015. 14 CFR §91.883 Special flight authorizations for jet airplanes weighing 75,000 pounds or less - lists special flight authorizations that may be granted for operation after December 31, 2015.

    Learjet 24A

    Standard version. Converted from existing Learjet 23. Takeoff weight 13,499 pounds (6,123 kg). FAA certified on November 9, 1966. 81 aircraft built.

    Learjet 24B

    Improved variant, powered by two 2,950 lbf (13.1 kN) thrust General Electric CJ610-6 turbojet engines, and 13,499 pounds (6,123 kg) maximum take-off weight. FAA certified December 17, 1968. 49 aircraft built.

    Learjet 24C

    A light-weight version of the 24B, fuselage tank not fitted which would have caused a reduction in range. The Learjet 24C project was abandoned in December 1970. Take-off weight 5,675 kilograms (12,511 lb). None built.

    Learjet 24D

    Similar to Learjet 24C, however by changing surface tanks range and takeoff weight were increased to 6,129 kilograms (13,512 lb). Round cabin windows replaced by angular. FAA certified July 17, 1970. Replaced the 24B in production. A reduced gross weight (restricted to 12,500 pounds (5,700 kg) version was also available (the 24D/A). 99 built.

    Learjet 24D/A

    Light-weight version with a restricted take-off weight of 5,669 kg (12,500 lb).

    Learjet 24E and 24F

    Two new versions were announced in 1976 the 24E and 24F, they introduced a new cambered wing and aerodynamic improvements to reduce stall and approach speed (Century III wing). The 24E did not have a fuselage fuel tank for higher payload but shorter range. Some 24E models had the fuselage tank installed later to restore range. Powered by two 2,950 lbf (13.1 kN) thrust General Electric CJ610-8A turbojet engines. On April 15, 1977, the FAA approved extended ceiling to 51,000 feet (16,000 m), the highest level then achieved in civilian aviation. 29 aircraft built.


     United States
  • NASA – one has been used as Lear Jet Observatory
  •  Mexico
  • FLYERSTEAM - Air Ambulance and Air Show performer
  • Former Operators

     United States
  • Pacific Southwest Airlines - PSA only owned one Learjet 24 (Only used for training).
  • Aircraft on display

  • 055 – Learjet 24 on static display at the Tillamook Air Museum in Tillamook, Oregon.
  • 24-131 – Learjet 24 on static display at Wings Over the Rockies Air and Space Museum in Denver, Colorado.
  • 203 – Learjet 24B on static display at the Evergreen Aviation & Space Museum in McMinnville, Oregon.
  • 281 – Learjet 24D on display at the Frontiers of Flight Museum in Dallas, Texas.
  • Specifications (Learjet 24F)

    Data from Jane's All The World's Aircraft 1976–77

    General characteristics

  • Crew: Two (pilot & co-pilot)
  • Capacity: 6 passengers
  • Length: 43 ft 3 in (13.18 m)
  • Wingspan: 35 ft 7 in (10.84 m)
  • Height: 12 ft 3 in (3.73 m)
  • Wing area: 231.8 sq ft (21.53 m²)
  • Airfoil: NACA 64A109
  • Empty weight: 7,130 lb (3,324 kg)
  • Max. takeoff weight: 13,500 lb (6,123 kg)
  • Powerplant: 2 × General Electric CJ610-6 turbojet engines, 2,950 lbf (13.1 kN) each
  • Performance

  • Never exceed speed: Mach 0.86 (at max take-off weight)
  • Maximum speed: 545 mph (473 knots, 877 km/h) at 31,000 ft (9,450 m)
  • Cruise speed: 481 mph (418 knots, 774 km/h) at 45,000 ft (13,715 m)
  • Stall speed: 100 mph (87 knots, 161 km/h)
  • Range: 1,695 mi (1,472 nmi, 2,728 km) 4 passengers, max fuel, 45 min reserves
  • Service ceiling: 45,000 ft (13,715 m)
  • Rate of climb: 6,800 ft/min (34.6 m/s)
