Evektor SportStar

Updated on
Share on FacebookTweet on TwitterShare on LinkedInShare on Reddit
Covid-19
Top speed  213 km/h
Length  5.37 m
Wingspan  8.65 m
Manufacturer  Evektor-Aerotechnik
Evektor SportStar SportStar RTC Evektor

09 evektor sportstar sl why this is such a good aircraft to own


The SportStar and EuroStar are a family of a two-seat, light sport aircraft (LSA), manufactured by Evektor-Aerotechnik of the Czech Republic and powered by a Rotax 912ULS, 100 horsepower (75 kW) engine.

Contents

Evektor SportStar Evektor SportStar Specifications A photo

The SportStar was the first approved special light-sport aircraft (S-LSA) and was named "S-LSA Aircraft of the Year" by AeroNews Network.

Evektor SportStar Evektor Sportstar Pictures

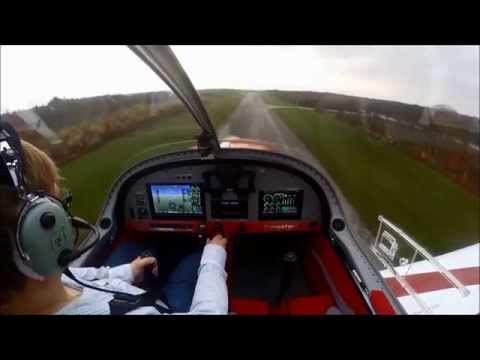

Evektor sportstar takeoff and gusty landing at ebul


Design and development

Evektor SportStar Evektor SportStar LSA Sport Aircraft International Evektor

The SportStar is an all-metal design made from anodized, corrosion-proofed aluminum. The airframe uses a pop-riveted and bonded construction, which the company claims will improve fatigue characteristics and result in a longer service life. The company also claims this construction technique results in better crashworthiness, the elimination of rivet zippering in an accident and quieter in-flight noise levels due to the elimination of oil-canning and flexing.

Evektor SportStar cdn2planeandpilotmagcomstories2010decevektor

The SportStar was designed for towing sailplanes up to 1544 lbs (700 kg) gross weight and for towing banners up to 1479 sq ft (140 m2).

Variants

Evektor SportStar SportStar RTC Evektor
EuroStar SL
Model for the European ultralight category, with a gross weight of 1,041 lb (472 kg)
EuroStar SL+
Version of the EuroStar SL with a new wing and integral fuel tanks, bigger baggage compartment and lower empty weight by 8 kg (18 lb).
EuroStar SLW
Model for the European ultralight category, with a gross weight of 1,041 lb (472 kg). It combines the EuroStar fudelage with the wing and stabilizer from the Harmony.
Harmony
Model for the US LSA market, based on the Harmony airframe, with enlarged ailerons and rudder to improve crosswind capabilities, an improved wing, winglets and tail, wider and longer cockpit, as well as refined wheel pants and other fairings.
SportStar
Initial model
SportStar SL
Improved model
SportStar Max
Version for the US LSA market with a gross weight of 1,320 lb (599 kg)
SportStar RTC
SportStar RTC was developed to meet EASA VLA certification and intended for use in flight training.
Evektor EPOS
Electric aircraft version, using the SportStar RTC fuselage and a new wing design.

Specifications (SportStar MAX)

Data from Evektor website

General characteristics

Evektor SportStar Evektor SportStar Light Sport at John Wayne Airport Canon 7d YouTube
  • Crew: one
  • Capacity: one passenger
  • Length: 17 ft 7.5 in (5.98 m)
  • Wingspan: 28 ft 5 in (8.65 m)
  • Height: 8 ft 2 in (2.48 m)
  • Wing area: ft² (m²)
  • Empty weight: 668 lb (308 kg)
  • Useful load: 640 lb (292 kg)
  • Loaded weight: 1320 lb (600 kg)
  • Max. takeoff weight: 1320 lb (600 kg)
  • Powerplant: 1 × Rotax 912ULS, ground adjustable propeller, 100 hp (75 kW)
  • Propellers: Klassic 1700/3/R, composite, propeller, 1 per engine
  • Propeller diameter: 5 ft 6 in (1.7 m)
  • Performance

  • Never exceed speed: 146 knots (270 km/h)
  • Maximum speed: 115 knots (213 km/h)
  • Cruise speed: 110 knots (204 km/h)
  • Stall speed: 40 knots (74 km/h)
  • Range: 700 nm (1300 km)
  • Service ceiling: 15,500 ft (4720 m)
  • Rate of climb: 1020 ft/min (5.2 m/s)
  • Wing loading: lb/ft² (kg/m²)
  • Power/mass: 12.68 lb/hp (0.13 W/kg)
  • References

    Evektor SportStar Wikipedia
