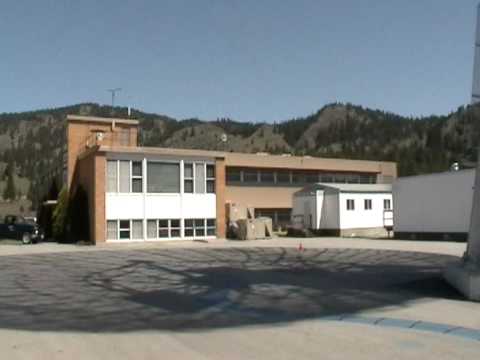

The Dominion Radio Astrophysical Observatory is a research facility founded in 1960 and located south-west of Okanagan Falls, British Columbia, Canada. The site houses three instruments – an interferometric radio telescope, a 26-m single-dish antenna, and a solar flux monitor – and supports engineering laboratories. The DRAO is operated by the Herzberg Institute of Astrophysics of the National Research Council of the Canadian government. The observatory was named an IEEE Milestone for first radio astronomical observations using VLBI.
Contents
Dominion radio astrophysical observatory
Synthesis telescope
The Synthesis Telescope consists of seven nine-metre, metal-mesh reflector antennas along a 600-m east-west baseline. The antennas are equipped with single-circular polarisation receivers at 408 MHz and dual circular receivers at 1420 MHz, from which all four Stokes parameters may be formed. A spectrometer may also be employed at 1420 MHz for study of the 21-cm hydrogen line. Maps of the sky are formed using the technique of aperture synthesis.
John A. Galt Telescope
The John A. Galt Telescope consists of a single 25.6-metre-diameter (84 ft) metal-mesh antenna which can be equipped to observe at 408 MHz and at 1.5, 2.7, 4.9, 6.6, and 8.4 GHz, including the hydrogen line near 1.4 GHz, the OH lines around 1.6 GHz, and the methanol line near 6.6 GHz. The telescope, formerly simply referred to as the 26-metre Telescope, was renamed in honour of John A. Galt, first employee and former director of the DRAO, during a special ceremony in 2014.
Solar-flux monitor
The monitor consists of two solid-surface dish antennas simultaneously observing at 10.7-cm wavelength, located near Penticton, British Columbia.
Canadian Hydrogen Intensity Mapping Experiment
The Canadian Hydrogen Intensity Mapping Experiment (CHIME) is a radio interferometer under construction which will map the 21 cm line of neutral Hydrogen over the cosmological redshift range of 0.8 to 2.5. It consists of four cylindrical reflector antennas, each 100 metres long and 20 metres wide. Each cylinder will have 256 dual-polarisation feed antennas spaced along the focal line. Data from this telescope will be used to measure baryon acoustic oscillations, giving a length scale that can be used to measure the expansion history of the universe.
Engineering
In addition to observing facilities, the DRAO operates design and development laboratories for receivers and electronics. Projects include instrumentation for external observatories, such as the Very Large Array and the James Clerk Maxwell Telescope.
