Built 1963 Area 4,047 m² Architectural style Modern architecture Architect Le Corbusier | NRHP Reference # 78000435 Opened 1963 Added to NRHP 20 April 1978 | |
![]() | ||
Location Cambridge, Massachusetts Similar Harvard Art Museums, Sainte Marie de La Tourette, Unité d'habitation, Pavillon Le Corbusier, Notre Dame du Haut |
Carpenter center for the visual arts
The Carpenter Center for the Visual Arts at Harvard University, in Cambridge, Massachusetts is the only building actually designed by Le Corbusier in the United States, and one of only two in the Americas (the other is the Curutchet House in La Plata, Argentina). Le Corbusier designed it with the collaboration of Chilean architect Guillermo Jullian de la Fuente at his 35 rue de Sèvres studio; the on-site preparation of the construction plans was handled by the office of Josep Lluís Sert, then dean of the Harvard Graduate School of Design. He had formerly worked in Le Corbusier's atelier and had been instrumental in winning him the commission. The building was completed in 1962.
Contents
- Carpenter center for the visual arts
- Map of Carpenter Ctr 24 Quincy St Cambridge MA 02138 USA
- Catherine galasso at the carpenter center for the visual arts harvard university
- Commission
- Design and construction
- Le Corbusiers Five Points
- Later history
- Criticism
- References
Map of Carpenter Ctr, 24 Quincy St, Cambridge, MA 02138, USA
Catherine galasso at the carpenter center for the visual arts harvard university
Commission
During the mid-1950s, the idea of creating a place for the visual arts at Harvard began to take shape. A new department dedicated to the visual arts was created, and the need for a building to house the new department arose. A budget was set for $1.3 million, and the proposal was included in a Harvard fundraising program. The project immediately elicited a response from St. Vrain Carpenter, an alumnus who supplied $1.5 million for the proposed design center. The donation propelled the project forward, and the Committee for the Practice of Visual Arts began to look for an architect to undertake the project. Originally, the committee had recommended that the building be designed by "a first rate American architect" who would be in the company of Charles Bulfinch and Walter Gropius, among others. However, José Luis Sert, who was at the time Dean of the Graduate School of Design and chairman of the committee suggested that his friend and previous collaborator, Le Corbusier, be asked to design the building. Delayed due to scheduling and payment conflicts, Le Corbusier eventually accepted and made his first of two visits to Cambridge in 1959.

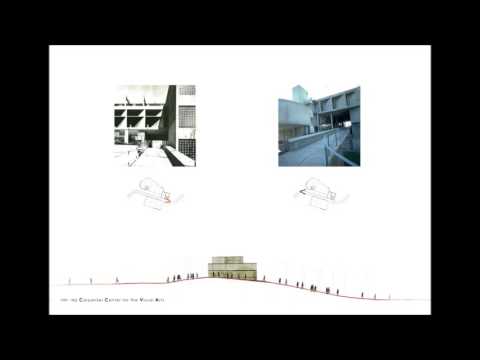

Design and construction
After much debate, a site was chosen between Quincy and Prescott Streets, abiding by the original proposal for the building. The allotted space was quite small, so the completed building presents itself as a compact, roughly cylindrical mass bisected by an S-shaped ramp on the third floor. Le Corbusier's earliest design showed a much more pronounced ramp that further separated the two parts of the central mass. However, the early design created the problem of too much disruption of the central mass. This problem auditorium reconciled by using a pinwheel effect so that in the finally executed design, the two halves meet at a vertical core that houses an elevator. The concrete ramp is cantilevered from this central spine and stands atop a few pilotis. The landing at the top of the ramp is located in the core of the building and leads to various studios and exhibition spaces seen through glass windows and doors, providing views into the building's instructional and displaying functions without interrupting the activities in progress.
The exterior of the Carpenter Center presents itself very differently from different angles. From Prescott Street looking toward the curved studio space, one can see the brise-soleil that are placed perpendicular to the direction of the central portion of the ramp, making only their narrow ends visible from the street. The Quincy Street view, however, reveals ondulatoires on this studio's exterior curve, which interfere with the building's curve less than the brise-soleil do on the opposite side. On the ramp from Quincy street just before entering the building, one sees grids of square and rectangles of the windows, brise-soleils, and studio spaces, rather than the curves of the two halves of the building.
Le Corbusier's Five Points
During his career, Le Corbusier developed a set of architectural principles that dictated his technique, which he called "the Five Points of a New Architecture" and were most evident in his Villa Savoye. The five points are:
Because the Carpenter Center was to be his only building in America, he felt it should be a synthesis of his architectural principles and therefore incorporated his Five Points into its design.
Later history
The building now houses the department of Visual and Environmental Studies of the University, and is the venue for screenings by the Harvard Film Archive.
Le Corbusier never actually saw the building. He was invited to the opening ceremony, but he declined the invitation on account of his poor health.
The French artist Pierre Huyghe explored the creation of the building in his 2004 work This Is Not A Time For Dreaming".
Criticism
Le Corbusier later became well-known as being a major influence for the urban renewal projects that replaced Scollay Square with Boston City Hall Plaza and the West End of Boston.
