Top speed

540 km/h

Length

24 m

Cruise speed

470 km/h

Wingspan

29 m

Range

2,500 km

Manufacturer

Antonov

Antonov An-32 httpsuploadwikimediaorgwikipediacommons44

Unit cost

6,000,000–9,000,000 USD (2000)

Antonov an 32 from take off

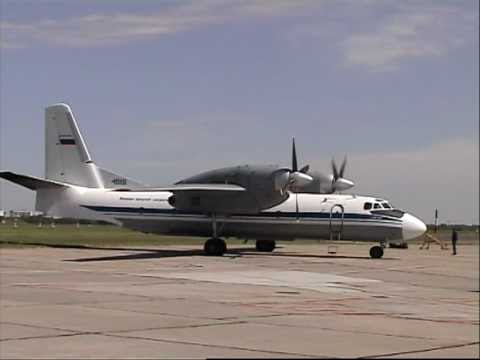

The Antonov An-32 (NATO reporting name: Cline) is a twin-engined turboprop military transport aircraft.

Contents

Croatian air force antonov an 32 take off zagreb croatia


Design and development

The An-32 is essentially a re-engined An-26. The launch customer was the Indian Air Force, which ordered the aircraft partly due to good relations between then USSR leader Leonid Brezhnev and then India leader Indira Gandhi. The An-32 is designed to withstand adverse weather conditions better than the standard An-26. The high placement of the engine nacelles above the wing allowed for larger diameter propellers, which are driven by 5,100 hp rated Ivchenko AI-20 turboprop engines, providing almost twice the power of the An-26's AI-24 powerplants. Estimated price for a modernised An-32 version is 15 million US dollars.

Operational history

The An-32 has excellent take-off characteristics in hot and high conditions, (up to + 55 °C (131 °F; 328 K) and 4,500 m (14,800 ft) elevation suitable for use as a medium tactical military transport roles as well as commercial roles. Operating as a cargo transport over the short and medium range air routes, the An-32 is suitable for air-dropping cargo, passenger carrying, medevac, firefighting, skydiving or paratrooping roles.

Variants

Antonov An-32 Antonov An32 all models Photos AirplanePicturesnet

  • An-32 : Twin-engined transport aircraft
  • An-32A : The first civil variant, the majority of the 36 aircraft built were delivered to various MAP and MOM enterprises, for use in transporting assemblies between plants.
  • An-32B : Improved version
  • An-32B-100 : Modernised version of the An-32B. MTOW increased to 28.5 tons, payload increased to 7.5 tons.
  • An-32B-110 : New avionics allowing aircraft to be operated by two crew members. Metric (Russian) avionics variant.
  • An-32B-120 : Imperial (non-Russian) avionics variant of An-32B-110.
  • An-32B-300 : Version fitted with Rolls-Royce AE 2100 turboprop engines, providing 4,600 hp each.
  • An-32LL (Letayushchaya Laboratoriya flying laboratory): The first prototype converted to a propfan technology testbed, with a large eight-bladed propeller in place of the standard AV-68DM on the port engine.
  • An-32MP : Marine Patrol version.
  • An-32P Firekiller : Aerial firefighting version. Special category type certificate granted on 10 March 1995. A total of eight tons of liquid can be discharged from the two external tanks simultaneously or one after the other. Drops are conducted at 40–50 m above ground level and 240 to 260 km/h. Can be used as a cargo aircraft when not fighting fires.
  • An-32V-200 : A tactical transport/cargo aircraft outgrowth from the An-32B-100, with more modern avionics allowing two crew operation. Intended for export; despite reasonable interest few have been sold.
  • An-32 RE : Modernised version of the An-32B. MTOW increased to 28.5 tons, payload increased to 7.5 tons. New avionics.
  • Military operators

    More than 240 An-32 aircraft are being operated in the countries around the world.

     Angola
  • People's Air and Air Defence Force of Angola
  •  Bangladesh
  • Bangladesh Air Force :3 aircraft received and currently in service.2 An-32B&1 An-32C.
  •  Colombia
  • Colombian Army: Two aircraft
  •  Croatia
  • Croatian Air Force – two aircraft operational, modernized in 2004.
  •  Equatorial Guinea
  • Air Force of Equatorial Guinea
  •  India
    Antonov An-32 2016 Indian Air Force An32 disappearance Wikipedia

  • Indian Air Force: Bought 125 aircraft, 105 are still in service. Entire fleet is undergoing modernization; 35 upgraded An-32s have been delivered by Ukrspetsexport. The upgrades include modern avionics equipment, new oxygen systems and improved crew seats. The remaining aircraft are being upgraded in India.
  •  Iraq
  • Iraqi Air Force: Six delivered as of October 2012.
  •  Mexico
  • Mexican Air Force: One An-32.
  • Mexican Navy: One An-32B.
  •  Peru
  • Peruvian Air Force
  • Peruvian Army
  • Peruvian Navy
  •  Sri Lanka
  • Sri Lanka Air Force
  •  Sudan
  • Sudanese Air Force
  • Former military operators

     Afghanistan
    Antonov An-32 Antonov An32 all models Photos AirplanePicturesnet

  • At least six were delivered to the Afghan Air Force from 1987. All remaining aircraft were retired in June 2011.
  •  Armenia
  • Armenian Air Force
  •  Ivory Coast
  • Military of Ivory Coast
  •  Ethiopia
  • Ethiopian Air Force
  •  Jordan
  • Jordanian Air Force
  •  Libya
  • Libyan Air Force
  •  Mongolia
  • Mongolian Air Force
  •  Rwanda
  • Military of Rwanda
  •  Tanzania

    Civil operators

    Antonov An-32 Antonov An32 all models Photos AirplanePicturesnet

    In July 2016, a total of 25 Antonov An-32 aircraft remain in airline service. The largest operator is Aero Transporte S.A (ATSA) of Peru with four aircraft. Some 16 other airlines operate smaller numbers of the type.

    Accidents and incidents

  • On 25 March 1986, an Indian Air Force An-32 disappeared over the Indian Ocean on a delivery flight from the Soviet Union (via Muscat, Oman.) No trace was ever found of the aircraft or its three crew and four passengers.
  • On 15 July 1990, an Indian Air Force An-32 transport plane crashed in the Ponmudi Mountain range while en route from Tambaram Air Force Station to Thiruvananthapuram in India.
  • On 22 November 1995,a Sri Lankan Air Force An-32B which chartered from the Kazakh was shot down during a landing in Jaffna, and all 63 troops aboard killed.
  • On 8 January 1996, an An-32 freighter crashed into a crowded marketplace in Kinshasa, Zaire, resulting in the deaths of approximately 237 people on the ground. The crew attempted to abort the takeoff at Kinshasa-N'Dolo Airport after the aircraft failed to gain height. All six crew members survived. Overloading was cited as a possible cause.
  • On 28 March 1998, a Peruvian Air Force An-32 carrying the dual civil/military registration OB-1389/FAP-388 and inbound from Tumbes evacuating 50 people stranded by El Niño-driven floods had an engine failure while approaching Piura. As the aircraft was overloaded, the pilot couldn't keep height and the AN-32 struck three houses of a nearby shantytown and crashed into a canal. While the crew of five survived, 21 passengers died plus one person on the ground.
  • On 26 August 2007, a Great Lakes Business Company An-32B carrying nine tons of minerals, 12 passengers, and a crew of three experienced engine trouble after takeoff from Kongolo Airport, Kongolo, Democratic Republic of the Congo, and crashed short of the runway while attempting to return to the airport, killing 14 of the 15 people on board.
  • On 10 June 2009, an Indian Air Force, An-32 transport aircraft carrying 13 people crashed shortly after it took off from Mechukha in Arunachal Pradesh, a state bordering China. All the 13 people on board were reported to have been killed. Soon after the crash, India agreed a $US400 million deal with Ukraine for an An-32 fleet upgrade. This upgrade as reported will extend the life of these transport aircraft by nearly 15 years.
  • On 12 December 2014, a Sri Lankan Air Force, An-32 transport aircraft carrying 5 people crashed on approach to land at the Rathmalana Airport after taking off from Katunayaka Bandaranayake International Airport. The pilot, co-pilot and two of the air crew were killed in the crash and the fifth crew member suffered critical injuries and died after six days from the accident due to his injuries.
  • On 22 July 2016, an Indian Air Force AN-32 travelling from Chennai to Port Blair went missing above the Bay of Bengal with 29 people on board. The plane left the Tambaram air base near Chennai at 8.30 am. It went missing from the radar at 9.12 am, 280 km east of Chennai, In that 8 are the personnel from Visakhapatnam-based Naval Science and Technological Laboratory's Naval Armament Depot
  • Specifications (An-32)

    Data from Jane's All The World's Aircraft 1988–89

    General characteristics

  • Crew: 4
  • Capacity: 42 paratroopers/50 passengers/24 Casualties on stretcher with three medical personnel
  • Length: 23.78 m (78 ft 0¾ in)
  • Wingspan: 29.20 m (95 ft 9½ in)
  • Height: 8.75m (28 ft 8½ in)
  • Wing area: 75 m² (807 ft²)
  • Empty weight: 16,800 kg (37,038 lb)
  • Max. takeoff weight: 27,000 kg (59,400 lb)
  • Powerplant: 2 × ZMKB Progress AI-20DM turboprop, 3,812 kW (5,112 ehp) each
  • Performance

  • Maximum speed: 530 km/h (286 knots, 329 mph)
  • Cruise speed: 470 km/h (254 knots, 292 mph) (econ cruise)
  • Range: 2,500 km (1,350 nmi, 1,553 mi)
  • Service ceiling: 9,500 m (31,165 ft)
