Top speed  270 km/h
Manufacturer  ATEC v.o.s.
Wingspan  9.6 m
ATEC 321 Faeta ATEC ATEC 321 FAETA

Atec 321 faeta 2014

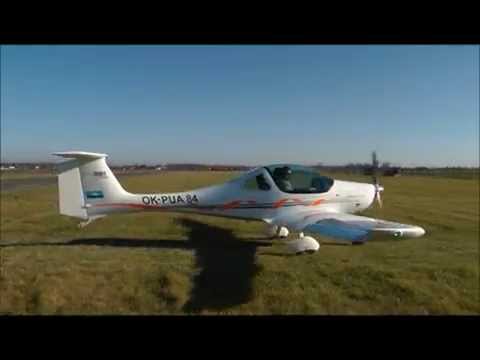

The ATEC 321 Faeta is a Czech ultralight and light-sport aircraft, designed and produced by ATEC v.o.s. of Libice nad Cidlinou. It was developed from the earlier ATEC 122 Zephyr 2000. The aircraft is supplied as a complete ready-to-fly-aircraft.

Contents

ATEC 321 Faeta Atec 321 Faeta Photos AirplanePicturesnet

Atec 321 faeta


Design and development

ATEC 321 Faeta wwwatecaircrafteuimgP1100817JPG

The Faeta was designed to comply with the Fédération Aéronautique Internationale microlight rules and US light-sport aircraft rules. It features a cantilever low-wing, a two-seats-in-side-by-side configuration enclosed cockpit under a bubble canopy, fixed tricycle landing gear, a T-tail and a single engine in tractor configuration. It is an approved SLSA in the USA.

ATEC 321 Faeta Atec 321 Faeta Photos AirplanePicturesnet

The aircraft fuselage is made with a carbon fibre shell and composite sandwich bulkheads. The 9.6 m (31.5 ft) span wing is made from carbon fibre sandwiches built upon a laminated wooden spar. The wing varies from the Zephyr in that it has a different tapered planform and uses a new airfoil. The design attempts to provide a lower empty weight and stall speed than the 122 Zephyr. The standard engine available is the 100 hp (75 kW) Rotax 912ULS four-stroke powerplant.

Specifications (321 Faeta)

Data from Bayerl and Tacke

General characteristics

ATEC 321 Faeta ATEC 321 Faeta Untitled Aviation Photo 1845372 Airlinersnet
  • Crew: one
  • Capacity: one passenger
  • Wingspan: 9.6 m (31 ft 6 in)
  • Wing area: 10.1 m2 (109 sq ft)
  • Empty weight: 278 kg (613 lb)
  • Gross weight: 472.5 kg (1,042 lb)
  • Fuel capacity: 70 litres (15 imp gal; 18 US gal)
  • Powerplant: 1 × Rotax 912ULS four cylinder, liquid and air-cooled, four stroke, 75 kW (101 hp)
  • Propellers: 3-bladed composite
  • Performance

    ATEC 321 Faeta ATEC 321 Faeta Wikipedia
  • Maximum speed: 270 km/h (168 mph; 146 kn)
  • Cruising speed: 227 km/h (141 mph; 123 kn)
  • Stall speed: 52 km/h (32 mph; 28 kn)
  • Rate of climb: 7 m/s (1,400 ft/min)
  • Wing loading: 46.78 kg/m2 (9.58 lb/sq ft)

  • ATEC 321 Faeta Pekolen ATEC 321 Faeta YouTube
