Official name Wolwedans Dam Location Western Cape Type of dam Arch-gravity Height 70 m Catchment area 123 km² Impound Great Brak River | Country South Africa Opening date 1990 Impounds Great Brak River Length 268 m Purpose Water supply | |
 | ||
Owner Department of Water and Sanitation Similar Floriskraal Dam, Berg River Dam, Gamkapoort Dam, Wemmershoek Dam, Eikenhof Dam | ||

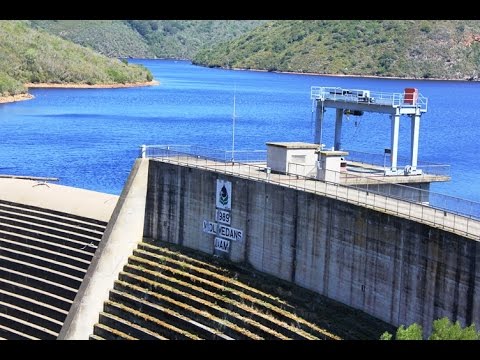

Wolwedans dam road op6834 mountain passes of south africa
Wolwedans Dam is a concrete dam in South Africa located on the Great Brak River near Mossel Bay, Western Cape, South Africa. The dam is the main source of water for the municipality of Mossel Bay as well as the gas-to-liquids refinery PetroSA. The dam serves mainly for municipal and industrial water supply purposes.
Contents
- Wolwedans dam road op6834 mountain passes of south africa
- Map of Wolwedans Dam South Africa
- Design
- References
Map of Wolwedans Dam, South Africa
Design
Completed in early 1990, it was the first in the world single center arch-gravity dam made of roller-compacted concrete fully relying on three-dimensional arch action for stability. The 70-m high dam has a vertical upstream face and a stepped downstream face at a slope of 0.5:1 (H:V). It has a constant extrados radius of 135 m and a crest length of 268 m. The non-overflow crest is 5 m wide. The dam was built of 0.25 m thick roller-compacted concrete layers with induced joints at 10 m spacing and de-bounding every 4th layer. The RCC of approximately 200,000 m3 (260,000 cu yd) was placed in October and November 1988 and between May and November 1989. The induced joints were grouted in winter, between July and November 1993. The reservoir was filled to capacity in 1992.
The RCC mix properties were:
