Top speed 169 km/h Wingspan 6.4 m Unit cost 1,285–1,285 USD (1971) First flight July 4, 1959 | Range 370 km Length 4.57 m Engine type Reciprocating engine | |
![]() | ||
Taylor monoplane flight around kaikohe
The Taylor J.T.1 Monoplane is a British fixed-wing aircraft design for a home build aircraft, developed in the 1950s by J.F. Taylor.
Contents
- Taylor monoplane flight around kaikohe
- Taylor monoplane engine running 1
- History
- Construction
- Operation
- Specifications
- References

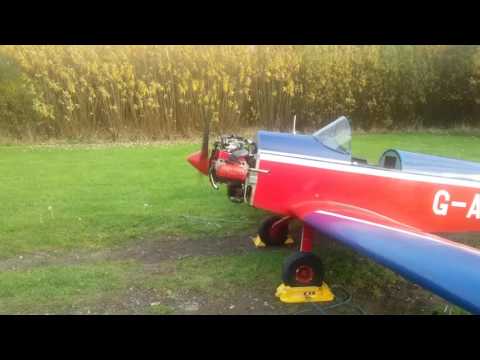

Taylor monoplane engine running 1
History

The J.T.1 Monoplane was designed by John Taylor in 1956 and the prototype (registered G-APRT) was built by him at Ilford, Essex between 1958-1959. It flew for the first time on 4 July 1959 at White Waltham. At that time it represented the first post war homebuilt design to come from England.
Construction

It was designed to be constructed in small spaces with the minimum of tools and material cost, requiring only average building skills from the constructor. It is aimed exclusively at the lower power range such as the 40 hp (30 kW) Volkswagen air-cooled engine, therefore giving economy with an acceptable cruise speed. It is semi- aerobatic.
Operation

The airframe of the J.T.1 Monoplane was proof loaded to verify the stress calculations and no modification has ever been introduced since the prototype was approved. The total number flying to date is over 110 examples.

As a result of a request for an aircraft with higher performance than the Taylor Monoplane, Taylor designed a high performance single-seater, the Taylor Titch. Taylor built the prototype, registered G-ATYO, at Leigh-on-Sea, Essex between 1965 and 1966; the Titch first flew at Southend Airport on 4 January 1967.
Specifications
Data from Jane's All The World's Aircraft 1982–83
General characteristics
Performance
