Top speed

215 km/h

Length

6.25 m

Wingspan

10 m

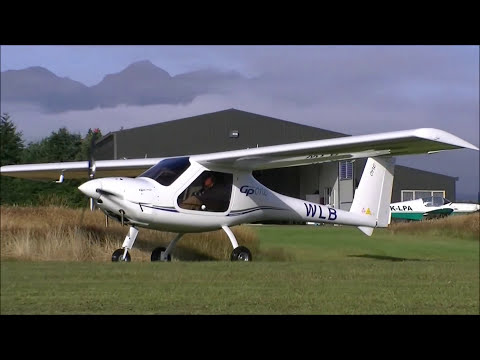

Skyleader gp one light sport aircraft flying in nz at lake manapouri


The Skyleader GP One is a Czech ultralight aircraft, designed and produced by Skyleader Aircraft and introduced at the AERO Friedrichshafen show in 2010. The aircraft is supplied as a complete ready-to-fly-aircraft.

Contents

Skyleader gp one light sport aircraft 1st flight in new zealand


Design and development

The GP One was designed to comply with the Fédération Aéronautique Internationale microlight rules. It features a cantilever high-wing, a two-seats-in-side-by-side configuration enclosed cockpit accessed by doors, fixed tricycle landing gear and a single engine in tractor configuration.

The aircraft is made from carbon fibre and has a predicted empty weight of 280 kg (617 lb). Its 10.2 m (33.5 ft) span wing has an area of 11.165 m2 (120.18 sq ft) and mounts flaps. The standard engine available is the 80 hp (60 kW) Rotax 912UL four-stroke powerplant.

Production started in 2011, with the first customer deliveries in 2012.

Specifications (GP One)

Data from Bayerl and Skyleader

General characteristics

  • Crew: one
  • Capacity: one passenger
  • Length: 6.25 m (20 ft 6 in)
  • Wingspan: 10.2 m (33 ft 6 in)
  • Height: 2.1 m (6 ft 11 in)
  • Wing area: 11.165 m2 (120.18 sq ft)
  • Aspect ratio: 9.32:1
  • Empty weight: 280 kg (617 lb)
  • Gross weight: 472.5 kg (1,042 lb)
  • Fuel capacity: 105 litres (23 imp gal; 28 US gal)
  • Powerplant: 1 × Rotax 912UL four cylinder, liquid and air-cooled, four stroke aircraft engine, 60 kW (80 hp)
  • Propellers: 3-bladed ground adjustable, composite

    • Performance

  • Maximum speed: 215 km/h (134 mph; 116 kn)
  • Cruise speed: 193 km/h (120 mph; 104 kn)
  • Stall speed: 64 km/h (40 mph; 35 kn)
  • Never exceed speed: 260 km/h (162 mph; 140 kn)
  • Range: 1,370 km (851 mi; 740 nmi)
  • Endurance: 6.1 hours plus 0.5 hour reserve
  • Wing loading: 42.3 kg/m2 (8.7 lb/sq ft)
