Top speed

250 km/h

Length

6.86 m

Manufacturer

PZL

Wingspan

15 m

First flight

May 19, 1966

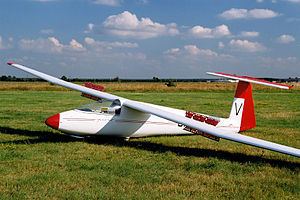

SZD-30 Pirat imgprocairlinersnetphotosairliners25707917

Pilatus szd 30 pirat


The SZD-30 Pirat is a single-seat multi-purpose glider aircraft from the Polish firm PZL Bielsko, which first flew in 1966 and was produced beginning in 1967.

Contents

SZD-30 Pirat PZLBielsko SZD30 Pirat Untitled Aviation Photo 1819878

Oldgliders szd 30 pirat


Development

SZD-30 Pirat FileSzybowiec SZD30 Pirat nad aremjpg Wikimedia Commons

The SZD-30 is of wooden construction. The high-mounted wing incorporates air brakes on both upper and lower surfaces. The inner section of the wing is constant-chord and the outer section is tapered.

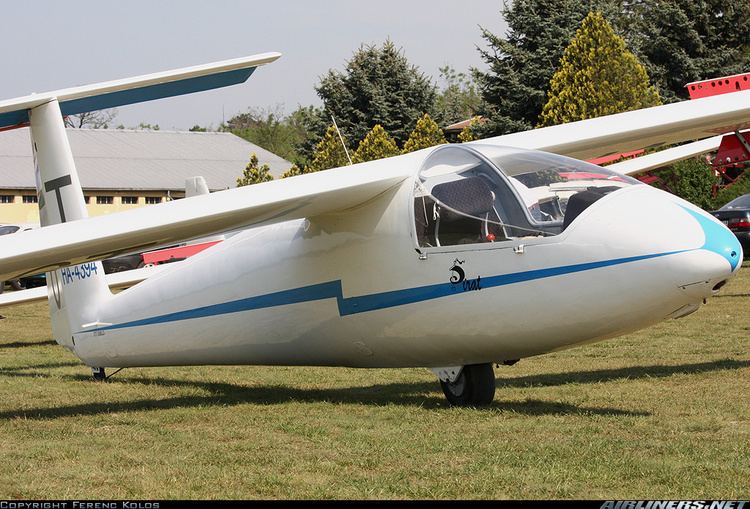

SZD-30 Pirat PZLBielsko SZD30 Pirat Aeroklub Velika Gorica Aviation Photo

The forward section of the otherwise all-wood fuselage is made of fiberglass. The single-wheel main landing gear is fixed. The formed one-piece canopy is side-mounted. The fuselage can be equipped with radios and oxygen system. There are two baggage compartments. Water ballast is not available.

Variants

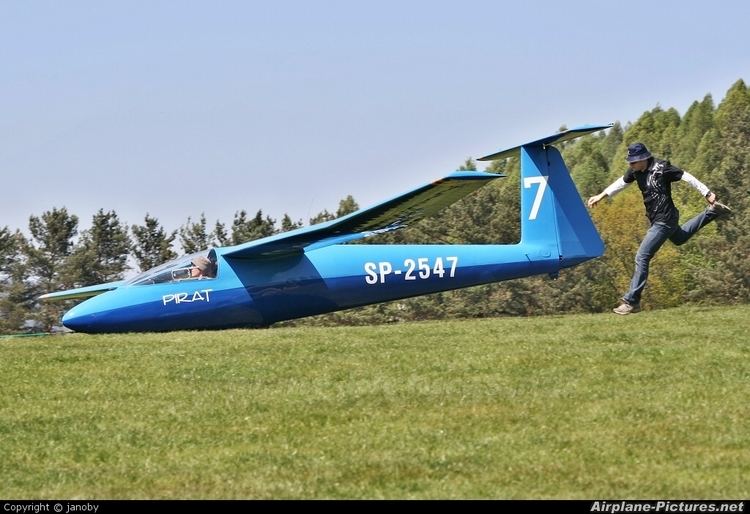

SZD-30 Pirat SP2547 Private PZL SZD30 Pirat at ar Photo ID 75412

  • SZD-30 - initial production version, with fully balanced ailerons
  • SZD-30B - a single prototype
  • SZD-30C - later production version, with smaller partially balanced ailerons of fiberglass, and larger cockpit. The first -30C flew on 10 January 1978.

    • Specifications

    General characteristics

    SZD-30 Pirat SZD30 Pirat Wikipedia

  • Crew: 1
  • Length: 6.86 m (22 ft 6 in)
  • Wingspan: 15.00 m (49 ft 3 in)
  • Height: 0.96 m (3 ft 2 in)
  • Wing area: 13.8 m2 (148.5 ft2)
  • Aspect ratio: 16.3
  • Wing profile: FX-61-168/60-1261
  • Empty weight: 260 kg (573 lb)
  • Gross weight: 370 kg (816 lb)

    • Performance

  • Maximum speed: 250 km/h (155 mph)
  • Maximum glide ratio: 33
  • Rate of sink: 0.7 m/s (138 ft/min)

    • Operational Limitations

    In 2011, following a number of cases of glue failure in wooden joints leading to structural failure, the type certificate holder issued a bulletin which reduces a number of the limiting speeds of the aircraft. Specifically, the maximum speed (VNE) is reduced to 195 km/h (121 mph, 105 knots) and aerobatic flight is prohibited.
