Name Q4000 Cost US$156 million Construction started 18 December 1999 | Ordered 1999 Length 95 m Builder Brownsville | |
 | ||
Owner Cal Dive Title XI, Inc. Operator Helix Energy Solutions Group Port of registry United States, Houston, Texas | ||

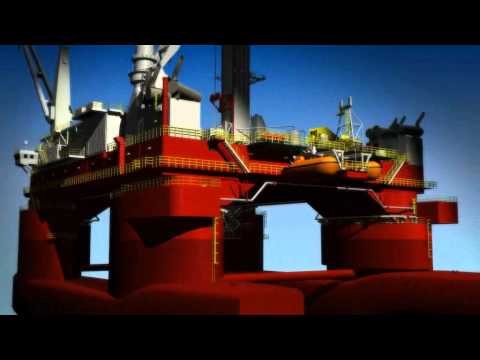

Q4000 flyaround
Q4000 is a unique multi-purpose oil field construction and intervention vessel commissioned in 1999 by Cal Dive International, and was built at the Keppel AmFELS shipyard in Brownsville, Texas. She was delivered in 2002 within the $180 million budget, and operates under the flag of the United States. She is operated by Helix Energy Solutions Group. The original Q4000 concept was conceived and is owned by SPD/McClure. The design was later modified by Bennett Offshore, which was selected to develop both the basic and detailed design.
Contents
Q4000 also has a unique column-stabilized semisubmersible design that combines dynamically positioned station-keeping with a large deck space, significant deck load capacity and a high transit speed of 12 knots. The vessel provides a stable platform for a wide variety of tasks, including subsea completion, decommissioning and coiled tubing deployment, and she is specifically designed for oil well intervention and construction in depths of up to 3048 meters of water.
Specifications
The design of the Q4000 includes the following features:
Deepwater Horizon spill response
Q4000 was in the Gulf of Mexico participating in the response to the Deepwater Horizon oil spill. The vessel was used to position the large containment dome and also to attempt the "top kill" in which large quantities of drilling mud were pumped down the Q4000 drilling pipe into the failed Deepwater Horizon blowout preventer valve (BOP) in an attempt to stop the flow of oil. Both attempts failed to stop the oil leaking from the well. After removal of the failed riser and drill pipe on the Horizon BOP, a capping stack sealed the top of the well on July 15, 2010, stopping the flow of oil into the Gulf of Mexico. The Q4000 was used in a successful static kill procedure, where mud, followed by cement, was pumped into the well, sealing the leak at the source. The Horizon BOP was secured on the deck of the Q4000 around 10:20pm on September 4, 2010. The failed Horizon BOP was collected as key evidence into the investigation of the causes of the Deepwater Horizon Oil Spill.
