PZL Bielsko SZD 55

Updated on
Edit
Like
Comment
Share on FacebookTweet on TwitterShare on LinkedInShare on Reddit
Top speed

255 km/h

Length

6.85 m

First flight

August 15, 1988

Wingspan

15 m

Introduced

1988

Manufacturer

PZL

PZL Bielsko SZD-55 PZL Bielsko SZD551 Nexus HB3107 Haller Martin by Michel

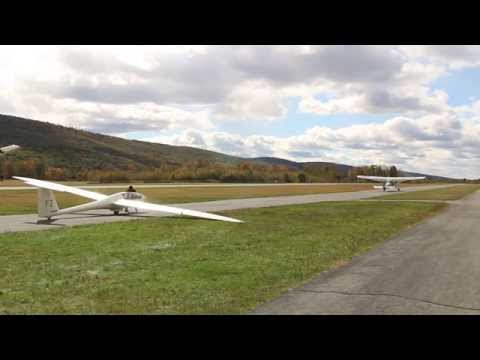

Pzl bielsko szd 55 aerotow at the wurtsboro airport


The PZL Bielsko SZD-55 is a Standard Class sailplane produced by PZL Bielsko since 1988. It was built in direct competition with the Schempp-Hirth Discus. The SZD-55 is still in production with approximately 110 built.

Contents

PZL Bielsko SZD-55 SZD55 in English

Design and development

PZL Bielsko SZD-55 PZLBielsko SZD551 Ilmasotakoulun Lentokerho ry Aviation Photo

The SZD-55 is built of fiberglass and has an elliptical wing. It has top surface Schempp-Hirth type airbrakes. It is a glider with pleasant handling that is easy to assemble, due to automatic controls hookup. With an empty weight of about 215 kg, it is the lightest of the current standard class gliders and is known for its excellent climbing and thermalling characteristics. The SZD-55 has a fairly cambered wing-section and performs well at lower speeds, but with plenty of water ballast (it can take 200 liters) it can also keep up well at higher speeds.

PZL Bielsko SZD-55 PZLBielsko SZD55 Untitled Aviation Photo 2032324 Airlinersnet

Main designer of the SZD-55 was mgr Tadeusz Łabuć. Since the mid-eighties, the best glider in the standard class was undoubtedly the German standard Discus, whose excellent performance was attributed to its unusual triple trapeze wing shape. So it was logical to adopt a similar idea for use of this outline of the new construction: the elliptical contour of the wing leading edge. Documentation of the glider was developed in 1987 same as prototypes for factory numbers X-144 (SP-P501) and X-145 (SP-P502) and flew 15.08.1988 and 03.01.1989 by January Roman.

PZL Bielsko SZD-55 PZLBielsko SZD55 Promyk HB3080 Priv by Michel BROSSAUD

Despite enormous difficulties in obtaining advanced materials (carbon fabric, kevlar) and the need for glass-epoxy laminates, the manufacturer managed to create a glider with an unladen weight of just over 200 kg. Klaus Holighaus, one of the finest manufacturers of gliders (Nimbus and Discus family) stated that if using a fiberglass technology PZL Bielsko factory reached less weight than gliders constructed using carbon fiber and Kevlar that means that they developed a new technology. This technology was later improved upon during the design and building of the SZD-56 Diana.

Specifications

Data from http://szd.com.pl/downloads/4e66270921313szd-55-1-en.pdf SZD Allstar

General characteristics

PZL Bielsko SZD-55 uploadwikimediaorgwikipediacommonsddbGlider

  • Crew: 1
  • Length: 6.85 m (22 ft 6 in)
  • Wingspan: 15.00 m (49 ft 3 in)
  • Height: 1.47 m (4 ft 10 in)
  • Wing area: 9.60 m2 (103.3 sq ft)
  • Aspect ratio: 23.44
  • Airfoil: NN-27, modified
  • Empty weight: 215 kg (474 lb)
  • Max takeoff weight: 500 kg (1,102 lb)

    • Performance

    PZL Bielsko SZD-55 PZL Bielsko SZD55 Wikipedia

  • Stall speed: 63–84 km/h (39–52 mph; 34–45 kn) at 275-500kg
  • Never exceed speed: 255 km/h (158 mph; 138 kn) in smooth air
  • g limits: +5.3 -2.65
  • Maximum glide ratio: 44
  • Best glide speed: 90–119 km/h (49–64 kn; 56–74 mph)
  • Rate of sink: 0.48–0.68 m/s (94–134 ft/min)
  • Minimum sink speed: 75–100 km/h (40–54 kn; 47–62 mph)
  • Wing loading: 28.5–52.1 kg/m2 (5.8–10.7 lb/sq ft)

    • References
