Mitsubishi Ki 33

Updated on
Share on FacebookTweet on TwitterShare on LinkedInShare on Reddit
Covid-19
Range  980 km
Length  7.54 m
Weight  1,132 kg
First flight  1936
Wingspan  11 m
Cruise speed  405 km/h
Engine type  Nakajima Kotobuki
Mitsubishi Ki-33 httpsuploadwikimediaorgwikipediacommonsthu

World of warplanes mitsubishi ki 33 t shirt plane


The Mitsubishi Ki-33 (キ33, Ki-sanjūsan) was an experimental monoplane fighter aircraft designed for the Japanese Imperial Army. Two prototypes flew in 1936 but the design never entered production.

Contents

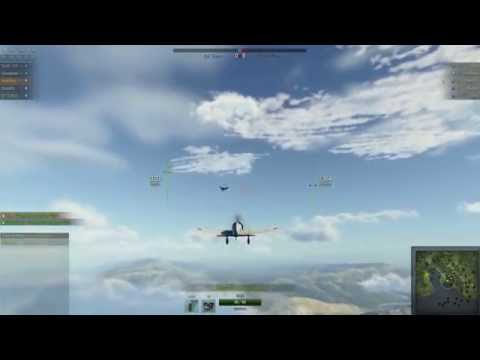

Mitsubishi ki 33 how to clive


Design & Development

The Ki-33 was initially produced by Mitsubishi in response to Japanese army specifications for a fighter to replace the existing Kawasaki Ki-10 biplane. In mid 1935 Kawasaki, Mitsubishi and Nakajima were instructed to build competitive prototypes. Mitsubishi, preoccupied with refining the Ka-14 into the A5M fighter and adapting the G3M bomber for series production for the Imperial Japanese Navy, lacked sufficient design capacity to develop another fighter from scratch, and therefore submitted its earlier and unsuccessful Ki-18 design, with comparatively minor changes, as the Ki-18 had proven to be a good fighter aircraft and the reasons for its rejection were based on principles rather than quality. Labeled the Mitsubishi Ki-33, the modified design was powered by a Nakajima Ha-1-Ko engine rated at 555 kW (744 hp) at 3,700 m (12,140 ft). An aft-sliding canopy was added, the aft fuselage decking was raised and the vertical tail surfaces were modified. The prototypes were completed during the early summer of 1936. Service trials from November 1936 until the spring of 1937 proved that the Kawasaki Ki-28 was the fastest of the three contenders, but the Nakajima Ki-27 was by far the most maneuverable, and on this basis was selected by the Imperial Japanese Army Air Force.

Operators

 Japan
  • Imperial Japanese Army Air Force
  • Specifications

    Data from Famous Airplanes of the World, first series, #76: Army Experimental Fighters (1)

    General characteristics

  • Crew: 1
  • Length: 7.54 m (24 ft 9 in)
  • Wingspan: 11 m (36.05 ft 0⅝ in)
  • Height: 3.19 m (10 ft 6 in)
  • Wing area: 17.80 m². (191.6 ft²)
  • Empty weight: 1,132 kg (2,496 lb)
  • Max. takeoff weight: 1,462 kg (3,223 lb)
  • Powerplant: 1 × Nakajima Ha-1-Ko radial engine, 556 kW (745 hp)
  • Performance

  • Maximum speed: 474 km/h at 3,000 m (295 mph at 9,845 ft)
  • Rate of climb: 14.04 m/s (2,760 ft/min)
  • Wing loading: 82.1 kg/m² (16.8 lb/ft²)
  • Power/mass: 2.1 kg/hp (4.5 lb/hp)
  • Armament

  • Guns: 2× fixed, forward-firing 7.7 mm (0.303 in) Type 89 machine guns
  • References
