Mid Hudson Bridge

Updated on
Edit
Like
Comment
Share on FacebookTweet on TwitterShare on LinkedInShare on Reddit
Crosses

Hudson River

Construction started

15 May 1925

Total length

914 m

Design

Suspension bridge

Opened

25 August 1930

Location

Highland

Mid-Hudson Bridge

Carries

3 lanes of US 44 / NY 55

Locale

Highland, New York and Poughkeepsie, New York

Official name

Franklin D. Roosevelt Mid-Hudson Bridge

Maintained by

New York State Bridge Authority

Address

475 U.S. 44 55, Highland, NY 12528, USA

Similar

Walkway over the Hudson, Newburgh–Beacon Bridge, Kingston–Rhinecliff Bridge, Bear Mountain Bridge, Rip Van Winkle Bridge

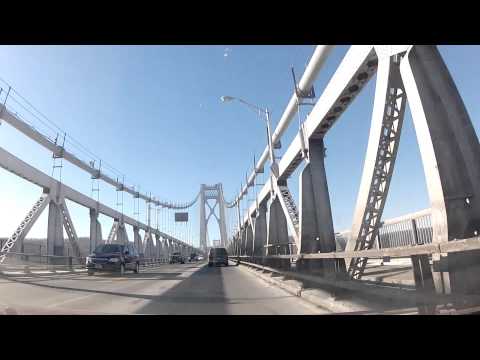

Mid hudson bridge westbound


The Mid-Hudson Bridge (officially the Franklin Delano Roosevelt Mid-Hudson Bridge) is a toll suspension bridge which carries US 44 and NY 55 across the Hudson River between Poughkeepsie and Highland in the state of New York. Governor and local resident Franklin D. Roosevelt and his wife Eleanor attended the opening ceremony on August 25, 1930. The bridge was renamed the "Franklin D. Roosevelt Mid-Hudson Bridge" in 1994 though the span is rarely referred to by its official name.

Contents

The bridge is 3,000 feet (910 m) long with a clearance of 135 feet (41 m) above the Hudson. At opening, it was the sixth-longest suspension bridge in the world. The chief engineer was Polish immigrant Ralph Modjeski, who had previously engineered the strengthening of the nearby Poughkeepsie Railroad bridge. Primary contractor was the American Bridge Company of Ambridge, Pennsylvania with steel from Carnegie. The span is unusual in that stiffening trusses were intentionally constructed on top of, not below, the deck.

The toll for passenger vehicles is $1.50 (cash) and $1.25 (E-Z Pass) for eastbound traffic only.

Mid hudson bridge westbound


History

Proposals for the Mid-Hudson span were proposed by state legislature in 1923. At that time, there were no fixed crossings across the river south of Albany. The Bear Mountain Bridge in Westchester County and the Holland Tunnel in Manhattan were under construction at that time. Governor Alfred E. Smith signed the bill in June 1923. Construction would be undertaken by the New York State Department of Public Works (now the New York State Department of Transportation).

Construction began in 1925. Caissons weighing 66,000 tons were sunk into the riverbed; dirt was removed by crews working in a pressurized environment. The 315-foot-tall (96 m) Gothic steel towers were constructed in April 1929. Three years after opening, ownership was transferred to the New York State Bridge Authority in 1933, shortly after the Authority was created.

The toll plaza was originally located on the eastern side of the bridge, but was moved to the western side in Ulster County when a new highway approach was opened in December 1967.

The bridge today

Today, the bridge carries three lanes of US 44 and NY 55 and a pedestrian/bicycle walkway over the Hudson. The bridge allows connections to US 9 on the east side, and US 9W to the west. The center lane is generally closed, except for rush hour traffic eastbound from 6am to 9am, and westbound from 3pm to 6pm. The center lane is also occasionally opened when work is being done on either side of the bridge. Five lane signals (referred to as "gantries" by NYSBA) indicate which lanes are open for travel. Approaches on either side of the bridge are four lanes, causing a bottleneck going onto the one- or two-lane span. The bridge has a computer-controlled LED decorative lighting system attached to the suspension cables, allowing the bridge to be decorated for Christmas (red, green) or the Fourth of July (red, white, and blue), and for other holidays.

In 2009, composer Joseph Bertolozzi completed Bridge Music, a project which allows listeners to hear the Mid-Hudson bridge played like a musical instrument. The work was created for New York's 400th anniversary observance of Henry Hudson's voyage up the Hudson. Originally intended to be a live performance piece, this "audacious plan" to compose music for a suspension bridge using the bridge itself as the instrument brought Bertolozzi wide international attention. A recording of the results, the 2009 CD "Bridge Music" (on the Delos label DE1045), entered the Billboard Classical Crossover Music Chart at #18, and has been released globally.
