Malleable iron

Updated on
Share on FacebookTweet on TwitterShare on LinkedIn
Malleable iron Malleable Iron Pipe

Lecture 39 malleable iron

Malleable iron is cast as white iron, the structure being a metastable carbide in a pearlitic matrix. Through an annealing heat treatment, the brittle structure as first cast is transformed into the malleable form. Carbon agglomerates into small roughly spherical aggregates of graphite leaving a matrix of ferrite or pearlite according to the exact heat treatment used. Three basic types of malleable iron are recognized within the casting industry: blackheart malleable iron, whiteheart malleable iron and pearlitic malleable iron.


Malleable iron Malleable Iron Pipe Fitting China Malleable Iron Pipe Fitting

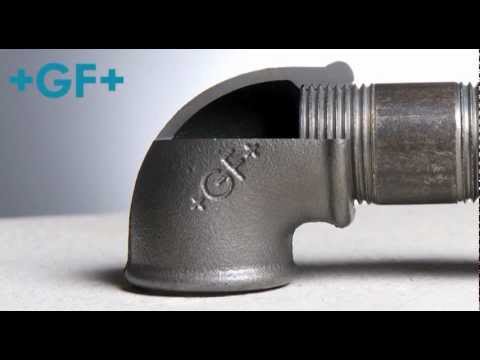

Gf malleable iron fittings taper parallel jointing


Malleable iron Malleable Iron Pipe Fittings Socket Sand Casting Investment

Malleable iron was used as early as the 4th century BCE, and malleable iron artifacts have been discovered by archaeologists between 4th century BCE and 9th century CE in China. By the Tang Dynasty, the use of malleable iron in China waned, although there are malleable iron artifacts dating to the 9th century. Malleable iron is mentioned in England in a patent dating to the 1670s. Réaumur conducted extensive research on malleable iron in 1720. He discovered that iron castings which were too hard to be worked could be softened by packing them into iron ore or hammer slag and exposing them to high temperature for a number of days. Creating malleable iron began in the United States in 1826 when Seth Boyden started a foundry for the production of harness hardware and other small castings.

Castability, heat treating and post-casting operations

Malleable iron malleableironfittingscomwpcontentuploads2013

Like similar irons with the carbon formed into spherical or nodular shapes, malleable iron exhibits good ductility. Incorrectly considered by some to be an "old" or "dead" material, malleable iron still has a legitimate place in the design engineer's toolbox. Malleable iron is a good choice for small castings or castings with thin cross sections (less than 0.25 inch, 6.35 mm). Other nodular irons produced with graphite in the spherical shape can be difficult to produce in these applications, due to the formation of carbides from the rapid cooling.

Malleable iron Malleable Iron Pipe Fittings Socket Sand Casting Investment

Malleable iron also exhibits better fracture toughness properties in low temperature environments than other nodular irons, due to its lower silicon content. The ductile to brittle behavior transformation temperature is lower than many other ductile iron alloys.

In order to properly form the spherical-shaped nodules of graphite during in the annealing process, care must be taken to ensure that the iron casting will solidify with an entirely white iron cross section. Thicker sections of a casting will cool slowly, allowing some primary graphite to form. This graphite forms random flake-like structures and will not transform to carbide during heat treatment. When stress is applied to such a casting in application, the fracture strength will be lower than expected for white iron. Such iron is said to have a 'mottled' appearance. Some countermeasures can be applied to enhance the formation of the all white structure, but malleable iron foundries often avoid producing heavy sections.

After the casting and heat treatment processes, malleable iron can be shaped through cold working, such as stamping for straightening, bending or coining operations. This is possible due to malleable iron's desirable property of being less strain rate sensitive than other materials.


It is often used for small castings requiring good tensile strength and the ability to flex without breaking (ductility). Uses include electrical fittings, hand tools, pipe fittings, washers, brackets, fence fittings, power line hardware, farm equipment, mining hardware, and machine parts.
