Top speed

580 km/h

Wingspan

16 m

Weight

4,950 kg

First flight

1944

Range

2,000 km

Length

11 m

Engine type

Radial engine

Kawasaki Ki-102 richardferrierefreefr3vueskawasakiki102b3vjpg

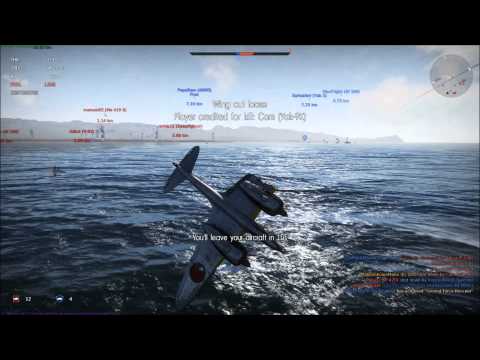

War thunder kawasaki ki 102 otsu review and gameplay


The Kawasaki Ki-102 (Army Type 4 assault aircraft) was a Japanese warplane of World War II. It was a twin-engine, two-seat, long-range heavy fighter developed to replace the Ki-45 Toryu. Three versions were planned: the Ki-102a day fighter, Ki-102b ground-attack and Ki-102c night fighter. This aircraft's Allied reporting name was "Randy".

Contents

Kawasaki Ki-102 WINGS PALETTE Kawasaki Ki102Ki108 Randy Japan

Design and history

Kawasaki Ki-102 Kawasaki Ki102 Randy Ground Attack Heavy Fighter Night

It entered service in 1944, but saw limited action. The main type (102b) was kept in reserve to protect Japan, although it did see some limited duty in the Okinawa campaign. It was kept out of front line service because it was hoped that it would be the carrier of the Igo-1-B air-to-ground guided missile when the Allied invasion of Japan occurred.

Versions

Kawasaki Ki-102 Kawasaki Ki102
Ki-102
prototypes, 3 built
Ki-102a (Type Kō)
Externally similar to the 102b, but with turbosuperchargers that enabled the engine to maintain its rating at higher altitudes. The 57 mm (2.24 in) cannon was swapped in favor of a 37 mm (1.46 in) cannon, and the 12.7 mm (.50 in) rear gun was deleted, 26 built.
Ki-102b (Type Otsu)
Ground-attack variant similar to prototypes, except with revised tail wheel, 207 built
Ki-102c (Type Hei)
Night fighter version with lengthened fuselage and span. Radar under a Plexiglas dome, oblique-firing 20 mm cannons, and the 20 mm cannons in the belly replaced with 30 mm (1.18 in) cannons completed the package, two built.
Ki-108
High-altitude fighter prototype with pressurised cabin, two conversions from Ki-102b aircraft using the structural improvements used on the 102c.
Ki-108 Kai
Improved version of the Ki-108 with longer fuselage and enlarged wings. Two built.

Specifications (Ki-102b)

Data from Japanese Aircraft of the Pacific War

General characteristics

Kawasaki Ki-102 Imperial Japanese Aviation Resource Center A Warbirds Resource

  • Crew: 2
  • Length: 11.45 m (37 ft 7 in)
  • Wingspan: 15.57 m (51 ft 1 in)
  • Height: 3.70 m (12 ft 2 in)
  • Wing area: 34 m² (366 ft²)
  • Empty weight: 4,950 kg (10,900 lb)
  • Loaded weight: 7,300 kg (16,000 lb)
  • Powerplant: 2 × Mitsubishi Ha-112-II Ru 14-cylinder radial engine, 1,120 kW (1,500 hp) each

    • Performance

    Kawasaki Ki-102 TheBlueprintscom Blueprints gt WW2 Airplanes gt Kawasaki

  • Maximum speed: 580 km/h (310 kn, 360 mph)
  • Range: 2,000 km (1,100 nmi, 1,200 mi)
  • Service ceiling: 10,000 m (33,000 ft)
  • Rate of climb: 2,340 ft/min (714 m/min)
  • Power/mass: 2.4 kg/kW (5.4 lb/hp)

    • Armament

  • Guns:
  • 1 × 57 mm (2.24 in) Ho-401 cannon—replaced in the 102a with a 37 mm (1.46 in) cannon, deleted in the 102c
  • 2 × 20 mm Ho-5 cannon in the belly—replaced in the 102c with 30 mm (1.18 in) cannons in the package, plus oblique-firing 2 × 20 mm cannons
  • 1 × 12.7 mm (0.50 in) Ho-103 machine gun—deleted in the 102a and 102c
  • Bombs:
  • 2 × 200 L (53 US gal) drop tanks; or
  • 2 × 250 kg (551 lb) bombs
