Kawanishi H6K

Design and development

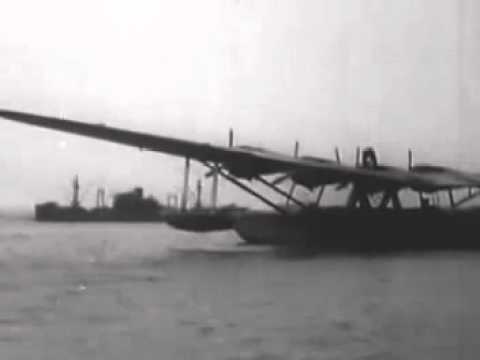

The aircraft was designed in response to a Navy requirement of 1934 for a long range flying boat and incorporated knowledge gleaned by a Kawanishi team that visited the Short Brothers factory in the UK, at that time one of the world's leading producers of flying boats, and from building the Kawanishi H3K, a license-built, enlarged version of the Short Rangoon. The Type S, as Kawanishi called it, was a large, four-engine monoplane with twin tails, and a hull suspended beneath the parasol wing by a network of struts. Three prototypes were constructed, each one making gradual refinements to the machine's handling both in the water and in the air, and finally fitting more powerful engines. The first of these flew on 14 July 1936 and was originally designated Navy Type 97 Flying Boat, later H6K. Eventually, 217 would be built.

Operational history

H6Ks were deployed from 1938 onwards, first seeing service in the Sino-Japanese War and were in widespread use by the time the full-scale Pacific War erupted, in 1942. At that time of the war, four Kōkūtai (Air Groups) operated a total of 66 H6K4s.

The type had some success over South East Asia and the South West Pacific. H6Ks had excellent endurance, being able to undertake 24-hour patrols, and were often used for long-range reconnaissance and bombing missions. From bases in the Dutch East Indies, they were able to undertake missions over a large portion of Australia.

However, the H6K became vulnerable to a newer generation of heavier armed and faster fighters. It continued in service throughout the war, in areas where the risk of interception was low. In front-line service, it was replaced by the Kawanishi H8K.

Variants

H6K1

Evaluation prototypes with four Nakajima Hikari 2 engines, 4 built.

H6K1 (Navy Flying Boat Type 97 Model 1)

Prototypes with 746 kW 1,000 hp Mitsubishi Kinsei 43 Engines, 3 converted from the original H6K1 prototypes.

H6K2 Model 11

First production model. Includes two H6K2-L officer transport modification, 10 built.

H6K2-L (Navy Transport Flying Boat Type 97)

Unarmed transport version of H6K2 powered by Mitsubishi Kinsei 43 engines, 16 built.

H6K3 Model 21

Modified transport version of H6K2 for VIPs and high-ranking officers, 2 built.

H6K4 Model 22

Major production version, modified H6K2 with revised weapons, some with 694 kW (930 hp) Mitsubishi Kinsei 46 engines. Fuel capacity increased from 7,764 L (1,708 Imp gal) to 13,410 L (2,950 Imp gal). Includes two H6K4-L transport versions, 100 to 127 (if other numbers are all correct) built.

H6K4-L

Transport version of H6K4, similar to H6K2-L, but with Mitsubishi Kinsei 46 engines, 20 built and another two converted from the H6K4.

H6K5 Model 23

Fitted with 969 kW (1,300 hp) Mitsubishi Kinsei 51 or 53 engines and new upper turret replacing the open position, 36 built.

Operators

 Indonesia

Air Service Volunteer Corps - A single H6K5 flying boat was restored to flight by Indonesian forces during the Indonesian War of Independence.

 Japan

Imperial Japanese Navy Air Service

Imperial Japanese Airways

Used on the routes Yokohama-Saipan-Koror (Palau)-Timor, Saigon-Bangkok and Saipan-Truk-Ponape-Jaluit.

Specifications (H6K4)

Data from Warplanes of the Second World War, Volume Five: Flying Boats; Japanese Aircraft of the Pacific War

General characteristics

Crew: 9

Length: 25.63 m (84 ft 3 in)

Wingspan: 40.00 m (131 ft 2 in)

Height: 6.27 m (20 ft 6 in)

Wing area: 170 m² (1,830 ft²)

Empty weight: 11,707 kg (25,755 lb)

Loaded weight: 17,000 kg (37,400 lb)

Max. takeoff weight: 21,500 kg (47,300 lb)

Powerplant: 4 × Mitsubishi Kinsei 43 or 46 14-cylinder, air-cooled, radial engines, 746 kW (1,000 hp) each

Performance

Maximum speed: 331 km/h (211 mph)

Cruise speed: 216 km/h (138 mph)

Range: 6,580 km (4,112 mi)

Service ceiling: 9,610 m (31,520 ft)

Rate of climb: 370 m/min (1,213 ft/min)

Wing loading: 100 kg/m² (20 lb/ft²)

Power/mass: 0.17 kW/kg (0.11 hp/lb)

Armament

1× 7.7 mm (0.30 in) Type 92 machine gun in nose

1× Type 92 machine gun in spine

2× Type 92 machine guns in waist blisters

1× 20 mm Type 99 cannon in tail turret

2× 800 kg (1,764 lb) torpedoes or 1,000 kg (2,205 lb) of bombs
