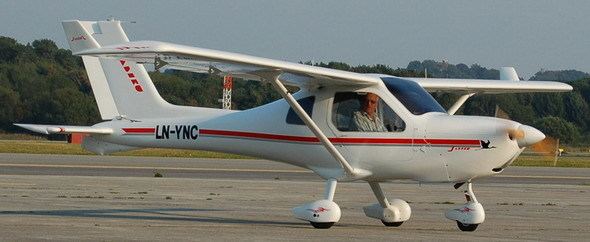

Jabiru J170 Jabiru J170SP JABIRU POWER SOLUTIONS LLC

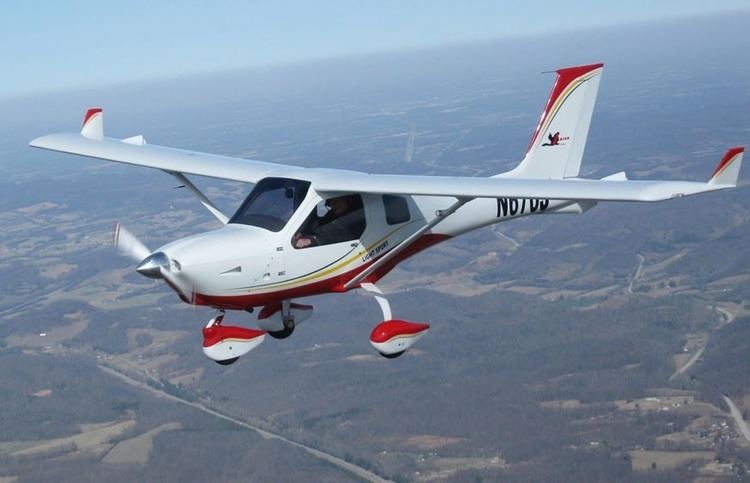

Jabiru j170 light sport aircraft from u s jabiru shelbyville tennessee usa


The Jabiru J170 is an Australian ultralight and light-sport aircraft, designed and produced by Jabiru Aircraft. The aircraft is supplied as a kit for amateur construction or as a complete ready-to-fly-aircraft.

Contents

Jabiru J170 J170 Jabiru Light Sport amp Experimental Aircraft

Design and development

Jabiru J170 J170D Jabiru Aircraft amp Engines Australia

The J170 was derived from the Jabiru J160, by using the J160 fuselage and the wings from the Jabiru J430 plus a bigger elevator to give it a better rate of climb at higher density altitudes. It was designed to comply with the US light-sport aircraft rules at a gross weight of 600 kg (1,323 lb). The J170 features a strut-braced high-wing with winglets, a two-seats-in-side-by-side configuration enclosed cockpit, fixed tricycle landing gear and a single engine in tractor configuration.

Jabiru J170 Airlinersnet

The aircraft is made from composites. Its 9.66 m (31.7 ft) span wet wing has an area of 9.56 m2 (102.9 sq ft), a fuel capacity of 135 litres (30 imp gal; 36 US gal) and flaps. The standard engine available is the 85 hp (63 kW) Jabiru 2200 four-stroke powerplant.

Jabiru J170 Airlinersnet

The J170 complies with both the US light-sport rules and United Kingdom BCAR Section "S" requirements. In Canada it qualifies as an Advanced Ultralight at a gross weight of 560 kg (1,235 lb)

Specifications (J170)

Data from Bayerl and Jabiru Aircraft

General characteristics

Jabiru J170 httpsuploadwikimediaorgwikipediacommonsthu

  • Crew: one
  • Capacity: one passenger
  • Length: 5.775 m (18 ft 11 in)
  • Wingspan: 9.66 m (31 ft 8 in)
  • Height: 2.300 m (7 ft 7 in)
  • Wing area: 9.56 m2 (102.9 sq ft)
  • Aspect ratio: 9.8:1
  • Empty weight: 320 kg (705 lb)
  • Gross weight: 600 kg (1,323 lb)
  • Fuel capacity: 135 litres (30 imp gal; 36 US gal)
  • Powerplant: 1 × Jabiru 2200 four cylinder, air-cooled, four stroke aircraft engine, 63 kW (85 hp)
  • Propellers: 2-bladed wood/composite, 1.52 m (5 ft 0 in) diameter

    • Performance

    Jabiru J170 Jabiru J170 Take off and landing YouTube

  • Maximum speed: 240 km/h (149 mph; 130 kn)
  • Cruise speed: 185 km/h (115 mph; 100 kn)
  • Stall speed: 72 km/h (45 mph; 39 kn) full flaps
  • Never exceed speed: 259 km/h; 161 mph (140 kn)
  • Range: 1,908 km; 1,185 mi (1,030 nmi)
  • Service ceiling: 4,600 m (15,000 ft)
  • g limits: +4/-2
  • Maximum glide ratio: 10:1
  • Rate of climb: 2.5 m/s (500 ft/min)
  • Wing loading: 62.8 kg/m2 (12.9 lb/sq ft)
