An ice hockey rink is an ice rink that is specifically designed for ice hockey, a team competing sport. Alternatively it is used for other sports such as broomball, ringette and rink bandy. It is rectangular with rounded corners and surrounded by a wall approximately 1 meter (40-48 inches) high called the boards.


Ice hockey rink Hockey 101 The Ice Hockey Rink

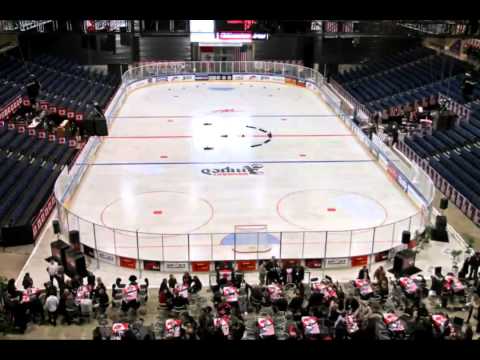

Building an ice world ice hockey rink timelapse 6 minutes

Name origins

Rink, a Scots word meaning 'course', was used as the name of a place where another game, curling, was played. Early in its history, ice hockey was played mostly on rinks constructed for curling. The name was retained after hockey-specific facilities were built.


Ice hockey rink Hockey Rink Diagrams amp Practice Plan Templates HockeyShare Blog by

There are two standard sizes for hockey rinks: one used primarily in North America (NHL, AHL, ECHL, etc.), the other used in the rest of the world (IIHF). The two sizes are known as NHL (for the smaller version used primarily in North America), and Olympic (for international play).


Ice hockey rink cdnwallpapersafaricom7952bgrmwjpg

Hockey rinks in most of the world follow the International Ice Hockey Federation (IIHF) specifications, which is 61 metres (200 ft) × 30.5 metres (100 ft) with a corner radius of 8.5 metres (28 ft). The distance from the end boards to the nearest goal line is 4 metres (13 ft). The distance from each goal line to the nearest blue line is 17.3 metres (57 ft). The distance between the two blue lines is also 17.3 metres (57 ft).

North American

Ice hockey rink Ice hockey rink Wikipedia

Most North American rinks follow the National Hockey League (NHL) specifications of 200 feet (61 m) × 85 feet (26 m) with a corner radius of 28 feet (8.5 m). The distance from the end boards to the nearest goal line is 11 feet (3.4 m). The NHL attacking zones are expanded, with blue lines 64 feet (20 m) from the goal line and 50 feet (15 m) apart. Canadian rinks may vary from NHL ones, especially in the goal crease shape (semi-circular), and in the rink dimensions which can accept widths from 85 to 100 feet.


In Finland the rink should be 60 metres (200 ft) long and between 26–30 metres (85–98 ft) wide.


Ice hockey rink Ice hockey rink Wikipedia

The rink specifications originate from the ice surface of the Victoria Skating Rink in Montreal, constructed in 1862, where the first indoor game was played in 1875. Its ice surface measured 204 feet (62 m) × 80 feet (24 m). The curved corners are considered to originate from the design of the Montreal Arena, also in Montreal, constructed in 1898.


The centre line divides the ice in half crosswise. It is used to judge icing, meaning that if a team sends the puck across the centre line (red line), blue line and then across the goal line (that is to say, shoots or dumps the puck past the goal line from behind their own side of the centre line) it is said to be icing. It is a thick line, and in the NHL must "contain regular interval markings of a uniform distinctive design, which will readily distinguish it from the two blue lines." When discussing differences in the rules of the game, it is often said that a game is played with no red line. This simply means that there is no two-line pass violation. The centre line is still used to judge icing violations.

There are two thick blue lines that divide the rink into three parts, called zones. These two lines are used to judge if a player is offside. If an attacking player crosses the line into the other team's zone prior to the puck crossing, he is said to be offside.

Near each end of the rink, there is a thin red goal line spanning the width of the ice. It is used to judge goals and icing calls.

Faceoff spots and circles

There are 9 faceoff spots on a hockey rink. Most faceoffs take place at these spots. There are two spots in each team's defensive zone, two at each end of the neutral zone, and one in the center of the rink.

There are faceoff circles around the center ice and end zone faceoff spots. There are hash marks painted on the ice near the end zone faceoff spots. The circles and hash marks show where players may legally position themselves during a faceoff or in game play,

Spot and circle dimensions

Both the center faceoff spot and center faceoff circle are blue. The circle is 9 metres (30 ft) in diameter, with an outline 5 centimetres (2.0 in) thick, and the faceoff spot is a solid blue circle 30 centimetres (12 in) in diameter.

All of the other faceoff spots and circles are colored red. Each spot consists of a circle 60 centimetres (2.0 ft) in diameter (as measured from the outermost edges) with an outline 5 centimetres (2.0 in) thick. Within the spot, two red vertical lines are drawn three inches (3”) from the left and right inner edges, and the area between these lines is painted red while the rest of the circle is painted white.

Goal posts and nets

At each end of the ice, there is a goal consisting of a metal goal frame and cloth net in which each team must place the puck to earn points. According to NHL and IIHF rules, the entire puck must cross the entire goal line in order to be counted as a goal. Under NHL rules, the opening of the goal is 72 inches (180 cm) wide by 48 inches (120 cm) tall, and the footprint of the goal is 40 inches (110 cm) deep.


The crease is a special area of the ice designed to allow the goaltender to perform without interference. It is the only large area of the ice painted blue to establish its presence. In most leagues, goals are disallowed if an attacking player enters the goal crease with a stick, skate, or any body part before the puck enters the crease. Goals are also disallowed if an attacking player obstructs the goalie from attempting to make a save. For the purposes of this rule, the crease extends vertically from the painted lines to the top of the goal frame. The rule preventing goals while an attacking player is in the crease was eliminated from the NHL and other North American professional leagues beginning in the 1999–2000 season — however, an NHL skater physically obstructing a goalie's movements within the crease can be called for a "goaltender interference" penalty for such a potential infraction in NHL play.

In amateur and international hockey, the goal crease is a half circle with radius of 1.8 m (6 ft). In the NHL and North American professional leagues, this goal crease is truncated along straight lines extending perpendicularly from the goal line 1 ft (30.5 cm) outside each goal post. In the NHL, there are also two red hashmarks 5 centimetres (2.0 in) thick located 4 ft from the goal line that extend 12.5 centimetres (4.9 in) into the crease from either side.

Goaltender trapezoid

During the 2004-05 American Hockey League (AHL) season, an experimental rule was implemented for the first seven weeks of the season, instituting a goaltender trap zone, more commonly called the trapezoid in reference to its shape. Under the rule, it is prohibited for the goaltender to handle the puck anywhere behind the goal line that is not within the trapezoidal area. If they do so they are assessed a minor penalty for delay of game.

The motivation for the introduction of the trapezoid was to promote game flow and prolonged offensive attacks by making it more difficult for the goaltender to possess and clear the puck. The rule was aimed at reducing the effectiveness of goaltenders with good puck-handling abilities, most notably Martin Brodeur and Marty Turco.

The area consists of a centred, symmetrical trapezoid. The bases of the trapezoid are formed by the goal line and the end boards. The base on the goal line measures 6.71 metres (22.0 ft) — widened from the original 5.5 metres (18 ft) for the 2014-15 NHL season onwards — and the base along the end boards measures 8.5 metres (28 ft), with the depth behind the goal line-to-boards distance specified at 3.35 metres (11.0 ft).

The seven-week experiment proved so successful that the AHL moved to enforce the rule for the rest of the season, and then was approved by the NHL when play resumed for the 2005-06 season following the previous lockout. The ECHL, the only other developmental league in the Professional Hockey Players Association (along with the AHL) also approved the rule for 2005-06.

Referee's crease

The referee's crease is a semicircle ten feet in radius in front of the scorekeepers bench. Under USA Hockey rule 601(d)(5), any player entering or remaining in the referee's crease while the referee is reporting to or consulting with any game official may be assessed a misconduct penalty. The USA Hockey casebook specifically states that the imposition of such a penalty would be unusual, and the player would typically first be asked to leave the referee's crease before the imposition of the penalty. The NHL has a similar rule, also calling for a misconduct penalty. Traditionally, captains and alternate captains are the only players allowed to approach the referee's crease.


The blue lines divide the rink into three zones. The central zone is called the neutral zone or simply centre ice. The generic term for the outer zones is end zones, but they are more commonly referred to by terms relative to each team. The end zone in which a team is trying to score is called the attacking zone or offensive zone; the end zone in which the team's own goal net is located is called the defending zone or defensive zone.

The blue line is considered part of whichever zone the puck is in. Therefore, if the puck is in the neutral zone, the blue line is part of the neutral zone. It must completely cross the blue line to be considered in the end zone. Once the puck is in the end zone, the blue line becomes part of that end zone. The puck must now completely cross the blue line in the other direction to be considered in the neutral zone again.

Half boards

In a hockey rink, the boards are the sides of the rink. The "side boards" are the boards along the two long sides of the rink. The half boards are the boards halfway between the goal line and blue line. The sections of the rink located behind each goal are called the "end boards." The boards that are curved (near the ends of the rink) are called the "corner boards." It is a popular misconception that the half boards are the entire section of boards on the sides of the rink.


Upright bars located at the ends of the team benches.
