The ICP Amigo (English: Friend) is an Italian homebuilt aircraft that was designed and produced by ICP srl of Piovà Massaia. When it was available the aircraft was supplied as a kit for amateur construction.
Contents
- Icp amigo s in korea south ii
- Icp amigo s in korea south iv
- Design and development
- Specifications Amigo
- References
Production was ended and, as of January 2013, the Amigo is no longer listed by ICP as one of their current products.
Icp amigo s in korea south iv
Design and development

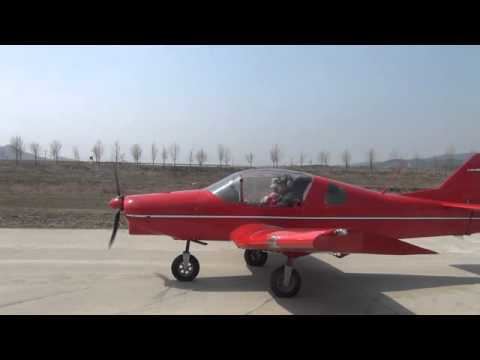

The aircraft features a cantilever low-wing, a two-seats-in-side-by-side configuration enclosed cockpit, fixed tricycle landing gear with wheel pants and a single engine in tractor configuration.
The aircraft is made from aluminum sheet. Its 26.40 ft (8.0 m) span wing has a wing area of 138.00 sq ft (12.821 m2). The acceptable power range is 79 to 118 hp (59 to 88 kW) and the standard engine used is the 80 hp (60 kW) Rotax 912 four stroke powerplant.
The aircraft has a typical empty weight of 274 kg (604 lb) and a gross weight of 441 kg (972 lb), giving a useful load of 167 kg (368 lb). With full fuel of 120 litres (26 imp gal; 32 US gal) the payload for pilot, passenger and baggage is 79 kg (174 lb).
Specifications (Amigo)
Data from AeroCrafter
General characteristics
Performance
