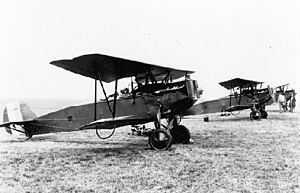

Huff Daland TW 5

Design and development

It was a development of the TA-6 (which itself was a one-off redesigned TA-2 with a 220 hp Lawrance J-1 air-cooled engine) but powered by a 190 hp Wright-Hispano E2. In 1924, the letter-and-number system was revised, and the TW-5 became an Advanced Trainer AT-1. In 1927, Huff-Daland Aero Corporation became a division of Keystone Aircraft Corporation.

Operational history

Versions of the AT-1 were built for the United States Navy as training and observation aircraft.

Variants

TA-6 (Trainer, Air-cooled type 6)

Powered by the 200 hp Lawrance J-1 air-cooled engine, 1 built

TW-5 (Trainer, Water-cooled type 5)

Powered by the 150-hp (112-kW) Wright-Hispano 1 engine, 5 built.

AT-1

U.S. Army Advanced Trainer, 10 built.

AT-2

One aircraft tested in a number of single-seat and two-seat versions

HN-1

United States Navy version of the AT-1 powered by a 180hp Wright-Hispano E2 engine, 3 built.

HN-2

United States Navy version of the AT-1 powered by a 200hp Lawrance J-1, 3 built.

HO-1

United States Navy observation version of the HN-1 powered by a 180hp Wright-Hispano E2 engine with intercangeable wheel or float undercarriage, 3 built

Operators

 United States

United States Army Air Service

United States Navy

Specifications (AT-1)

General characteristics

Crew: 2

Length: 24 ft 7 in (7.5 m)

Wingspan: 31 ft 2 in (9.5 m)

Gross weight: 2,358 lb (1,070 kg)

Powerplant: 1 × Wright Hisso I V-8 water-cooled piston engine, 150 hp (110 kW)

Performance

Maximum speed: 112 mph (180 km/h; 97 kn)
