Top speed 491 km/h Wingspan 15 m First flight April 14, 1959 | Range 1,520 km Length 12 m | |
 | ||

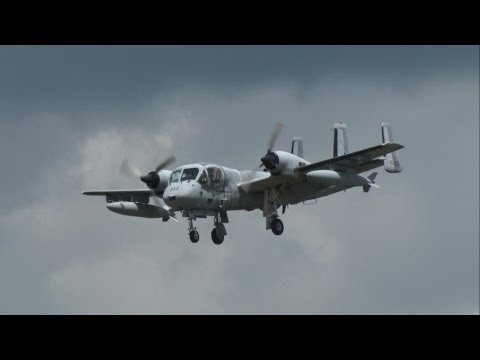

2016 greenwood lake airshow grumman ov 1 mohawk
The Grumman OV-1 Mohawk was an armed military observation and attack aircraft, designed for battlefield surveillance and light strike capabilities. It was a twin turboprop configuration, and carried two crew members in side-by-side seating. The Mohawk was intended to operate from short, unimproved runways in support of United States Army maneuver forces.
Contents
- 2016 greenwood lake airshow grumman ov 1 mohawk
- Grumman ov 1 mohawk surveillance mission
- Development
- United States Army
- Argentine Army
- Variants
- Former Operators
- Airworthy
- Static display
- Specifications OV 1D
- References
Grumman ov 1 mohawk surveillance mission
Development
The Mohawk began as a joint Army-Marine program through the then-Navy Bureau of Aeronautics (BuAer), for an observation/attack plane that would outperform the Cessna L-19 Bird Dog. In June 1956, the Army issued Type Specification TS145, which called for the development and procurement of a two-seat, twin turboprop aircraft designed to operate from small, unimproved fields under all weather conditions. It would be faster, with greater firepower, and heavier armour than the Bird Dog, which had proved vulnerable during the Korean War. The Mohawk's mission would include observation, artillery spotting, air control, emergency resupply, naval target spotting, liaison, and radiological monitoring. The Navy specified that the aircraft must be capable of operating from small "jeep" escort class carriers (CVEs). The DoD selected Grumman Aircraft Corporation's G-134 design as the winner of the competition in 1957. Marine requirements contributed an unusual feature to the design. As originally proposed, the OF-1 could be fitted with water skis that would allow the aircraft to land at sea and taxi to island beaches at 20 kts. Since the Marines were authorized to operate fixed-wing aircraft in the close air support (CAS) role, the mockup also featured underwing pylons for rockets, bombs, and other stores.
The Air Force did not like the armament capability of the Mohawk and tried to get it removed. The Marines did not want the sophisticated sensors the Army wanted, so when their Navy sponsors opted to buy a fleet oil tanker, they dropped from the program. The Army continued with armed Mohawks and developed cargo pods that could be dropped from underwing hard points to resupply troops in emergencies.
The radar imaging capability of the Mohawk was to prove a significant advance in both peace and war. The Side-Looking Airborne Radar (SLAR) could look through foliage and map terrain, presenting the observer with a film image of the earth below only minutes after the area was scanned. In military operations, the image was split in two parts, one showing fixed terrain features, the other spotting moving targets.
The prototype (YAO-1AF) first flew on April 14, 1959. The OV-1 entered production in October 1959.
In mid-1961, the first Mohawks to serve with U.S. forces overseas were delivered to the 7th Army at Sandhofen Airfield near Mannheim, Germany. Before its formal acceptance, the camera-carrying AO-1AF was flown by Ralph Donnell on a tour of 29 European airfields to display it to the U.S. Army field commanders and potential European customers. In addition to their Vietnam and European service, SLAR-equipped Mohawks began operational missions in 1963 patrolling the Korean Demilitarized Zone. Germany and France showed early interest in the Mohawk, and Grumman actually signed a license production agreement with the French manufacturer Breguet Aviation in exchange for American rights to the Atlantic maritime patrol aircraft.
The very nature of the joint Army/Marine program had forced design compromises, such as ejection seats, that made the aircraft expensive and, sometimes, an openly resisted item in Army budgets. Orders for the OV-1 stopped in Fiscal 1964, and the controversy in the Pentagon over the armed Mohawk peaked with a 1965 directive that prohibited the Army from operating armed fixed-wing aircraft (See the Johnson-McConnell agreement of 1966). Operational success in Vietnam led to additional Mohawk orders in 1966, and by 1968, five surveillance companies were operating in Southeast Asia.
The last of the Mohawk versions to enter production was the OV-1D with more powerful T53-701 engines, improved avionics, and interchangeable mission pallets that made it possible to switch the aircraft from infrared to SLAR configuration in about an hour. The first four OV-1Ds were prototypes converted from earlier production airframes, and the first flew in 1969. These were followed by 37 new-build aircraft, the last of which was delivered in December 1970.
Over the years, the mission and the aircraft underwent many changes and roughly 380 were built over all variants. Mohawk variants included the JOV-1 [armed reconnaissance], OV-1A, [visual and photographic], OV-1B [visual, photographic, and side-looking radar (SLAR) pod], the OV-1C [visual, photographic, and infrared], and the OV-1D (SLAR pod and bigger wings), OV-1E [enlarged fuselage for more sensor operators or cargo], EV-1E [special electronic intelligence installation] and RV-1E [advanced ELINT reconnaissance]. A four-engined Model 134E with tiltwings and tail ducted fan for control for VTOL was proposed to the Army but not built. Model 134R was a tandem cockpit version offered to meet the Light Armed Reconnaissance Aircraft (LARA) requirement, but the NA300 was chosen instead becoming the OV-10.
United States Army
The OV-1 saw combat with the U.S. Army in the Vietnam War with 65 lost to operational accidents, antiaircraft fire, ground fire and one shot down by a North Vietnamese fighter and during Operation Desert Storm.
Starting in 1972, the Army National Guard (ARNG) began to receive the Mohawk, with the ARNG eventually operating 13 OV-1Bs, 24 OV-1Cs, and 16 OV-1Ds serving with three aviation units in Georgia and Oregon.
U.S. Army OV-1s were retired from Europe in 1992, from Korea in September 1996, and finally in the United States in 1996, superseded by newer systems, newer aircraft, and the evolution of reconnaissance satellites. The OV-1 was primarily replaced by the EO-5C, a militarized version of the de Havilland Canada Dash 7 turboprop commuter airliner equipped with a SLAR system, until the U.S. Air Force's Northrop Grumman E-8 Joint STARS (Joint Surveillance Target Attack Radar System) aircraft, became fully operational.
As of 2011, Alliant Techsystems has partnered with the Broadbay Group and Mohawk Technologies of Florida in a venture to return an armed, modernized version of the OV-1D to operational use as a counter-insurgency aircraft. A demonstrator has been equipped with a FLIR Star Safire turret and a ventral, trainable M230 chain gun.
Argentine Army
The Argentine Army Aviation received 23 OV-1 in the 1990s. Ten were operational and the rest were used for spare parts. Inactive and retired from use in 2015.
Variants
Former Operators
Airworthy
Static display
Specifications (OV-1D)
Data from Jane's Civil and Military Aircraft Upgrades 1994–95
General characteristics
Performance
