Embraer EMB 121 Xingu

Updated on
Edit
Like
Comment
Share on FacebookTweet on TwitterShare on LinkedInShare on Reddit
Top speed

466 km/h

Length

12 m

Manufacturer

Embraer

Wingspan

14 m

First flight

October 10, 1976

Embraer EMB 121 Xingu httpsuploadwikimediaorgwikipediacommons77

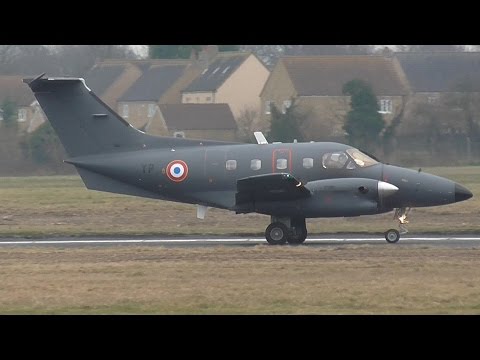

Rare embraer emb 121 xingu french air force take off cbg airport


The Embraer EMB 121 Xingu (pronounced "shingoo") is a twin-turboprop fixed-wing aircraft built by the Brazilian aircraft manufacturer, Embraer. The design of this plane is based on the EMB 110 Bandeirante, using its wing and engine design merged with an all-new fuselage. The EMB 121 first flew on 10 October 1976.

Contents

Embraer EMB 121 Xingu 1000 images about Embraer EMB 121 Xingu on Pinterest Trainers

A modified form of the EMB 121, the EMB 121A1 Xingu II, was introduced on 4 September 1981 with a more powerful engine (PT6A-135), increased seating (8 or 9 passengers) and a larger fuel capacity.

Embraer EMB 121 Xingu EMBRAER EMB 121 Xingu Specifications Technical Data Description

Before production ceased in August 1987, Embraer had produced 106 EMB 121 aircraft, 51 of which were exported to countries outside Brazil. Currently, the French Air Force is the largest operator with 23 aircraft still in service.

Embraer EMB 121 Xingu Embraer EMB121 Wikipdia a enciclopdia livre

Arm e de l air embraer emb 121 xingu take off at cambridge airport


Variants

Embraer EMB 121 Xingu Embraer EMB 121 Xingu Wikiwand
EMB 121A Xingu I
Pratt & Whitney Canada PT6A-28
EMB 121A1 Xingu II
Pratt & Whitney Canada PT6A-135
EMB 121B Xingu III
Projected stretched development, not proceeded with, to have been powered by Pratt & Whitney Canada PT6A-42 engines.
EMB 123 Tapajós
planned version with Pratt & Whitney Canada PT6A-45
VU-9
Brazilian Air Force designation

Military operators

 Brazil
  • Brazilian Air Force
    •  France
  • French Air Force
  • French Navy

    • Specifications (EMB 121A1 Xingu II)

    Data from Jane's All the World's Aircraft 1984-85

    General characteristics

    Embraer EMB 121 Xingu Marine Nationale 87 French Navy Embraer EMB121 Xingu Landing

  • Crew: 1/2
  • Capacity: 9 or 770 kg (1,700 lb) with 1 pilot
  • Length: 12.25 m (40 ft 2 in)
  • Wingspan: 14.05 m (46 ft 1 in)
  • Height: 4.84 m (15 ft 11 in)
  • Wing area: 27.5 m2 (296 sq ft)
  • Aspect ratio: 7.18
  • Empty weight: 3,710 kg (8,179 lb) equipped
  • Max takeoff weight: 5,670 kg (12,500 lb)
  • Fuel capacity: 1,308 kg (2,884 lb)
  • Powerplant: 2 × Pratt & Whitney Canada PT6A-135 turboprop engines, 559 kW (750 hp) each
  • Propellers: 4-bladed Hartzell HC-B4TN-3C/T9212B, 2.36 m (7 ft 9 in) diameter constant-speed metal propeller with auto-feathering and full reverse-pitch

    • Performance

    Embraer EMB 121 Xingu Rare Embraer EMB 121 Xingu French Air Force take off CBG Airport

  • Maximum speed: 467 km/h; 290 mph (252 kn)
  • Cruise speed: 380 km/h; 236 mph (205 kn) at 3,050 m (10,010 ft)
  • Stall speed: 141 km/h; 87 mph (76 kn) power off, flaps down
  • Range: 1,230 km (764 mi; 664 nmi) at 6,100 m (20,000 ft) maximum fuel with 45 minutes reserve
  • Service ceiling: 8,535 m (28,002 ft)
  • Rate of climb: 9.1333 m/s (1,797.89 ft/min)
  • Wing loading: 206.2 kg/m2 (42.2 lb/sq ft)
  • Power/mass: 0.197 kW/kg (0.12 shp/lb)

    • Avionics

    Standard fit

  • Collins VHF-20 comms Tx/Rx
  • dual Collins VIR-30 nav Rx
  • Collins ADF-60A
  • Collins TDR-90
  • Collins CLT-21/31/61/91 control heads
  • Collins DME-40
  • Bendix RDR-1150 HP weather radar
  • two Sperry C-14 gyro-compasses
  • two Sperry VG-14 vertical gyros
  • dual Sperry RD-550B HSIs
  • Dorne & Margolin DMELT-8-1 Emergency Locator Beacon
  • plus optional avionics

    • References

    Embraer EMB 121 Xingu Wikipedia
