DTA Combo

Design and development

The Combo was designed to comply with the Fédération Aéronautique Internationale microlight category. It features a cable-braced or strut-braced hang glider-style high-wing, weight-shift controls, a two-seats-in-tandem open cockpit with a full cockpit fairing and windshield, tricycle landing gear with wheel pants and a single engine in pusher configuration.

The aircraft is made from welded 4130 steel tubing, with Zicral alloy suspension. Its double surface wing is covered in Dacron sailcloth. A number of different wings and engines can be fitted to create several variants.

Variants

Combo FC 912 S Diva

Version with the 9.4 m (30.8 ft) span DTA Diva wing of 12 m² (130 sq ft). This wing is supported by a single tube-type kingpost and uses an "A" frame weight-shift control bar. The powerplant is a four cylinder, air and liquid-cooled, four-stroke, dual-ignition 100 hp (75 kW) Rotax 912S engine. This version has an empty weight of 241 kg (531 lb) and a gross weight of 450 kg (992 lb), giving a useful load of 209 kg (461 lb). With full fuel of 70 litres (15 imp gal; 18 US gal) the payload is 158 kg (348 lb).

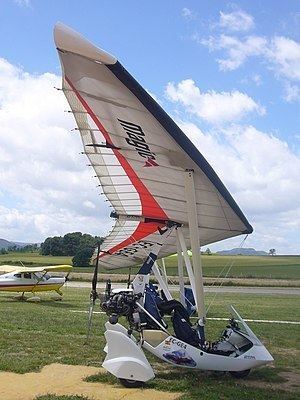

Combo FC 912 S Magic

Version with the 9.4 m (30.8 ft) span DTA Magic wing of 12 m² (130 sq ft). This wing is a "topless" design, supported by struts and uses an "A" frame weight-shift control bar. The wing features vortex generators on the leading edge and gives a glide ratio if 10:1. The powerplant is a four cylinder, air and liquid-cooled, four-stroke, dual-ignition 100 hp (75 kW) Rotax 912S engine. This version has an empty weight of 243 kg (536 lb) and a gross weight of 472.5 kg (1,042 lb), giving a useful load of 229.5 kg (506 lb). With full fuel of 70 litres (15 imp gal; 18 US gal) the payload is 179 kg (395 lb).

Combo HKS Dynamic 15/430

Version with the 9.4 m (30.8 ft) span DTA Dynamic wing of 13.60 m² (146.4 sq ft). This wing is supported by a single tube-type kingpost and uses an "A" frame weight-shift control bar. The powerplant is a twin cylinder, air-cooled, four-stroke, dual-ignition 60 hp (45 kW) HKS 700E engine. This version has an empty weight of 196 kg (432 lb) and a gross weight of 430 kg (948 lb), giving a useful load of 234 kg (516 lb). With full fuel of 70 litres (15 imp gal; 18 US gal) the payload is 184 kg (406 lb). A distinctive feature of the Combo HKS Dynamic 15/430 is its all-black tubing.

Specifications (Combo FC 912 S Magic)

Data from Bayerl

General characteristics

Crew: one

Capacity: one passenger

Wingspan: 9.4 m (30 ft 10 in)

Wing area: 12.0 m² (129 sq ft)

Empty weight: 243 kg (536 lb)

Gross weight: 472.5 kg (1,042 lb)

Fuel capacity: 70 litres (15 imp gal; 18 US gal)

Powerplant: 1 × Rotax 912ULS four cylinder, liquid and air-cooled, four stroke aircraft engine, 75 kW (101 hp)

Propellers: 3-bladed composite

Performance

Maximum speed: 160 km/h (99 mph; 86 kn)

Cruise speed: 130 km/h (81 mph; 70 kn)

Stall speed: 58 km/h (36 mph; 31 kn)

Maximum glide ratio: 10:1

Rate of climb: 5.5 m/s (1,080 ft/min)

Wing loading: 39.4 kg/m² (8.1 lb/sq ft)
