DFS Kranich

Updated on
Share on FacebookTweet on TwitterShare on LinkedInShare on Reddit
Covid-19
Top speed  175 km/h
Length  7.7 m
Wingspan  18 m
Manufacturer  Karl Schweyer AG
DFS Kranich DFS Kranich II Untitled Aviation Photo 1757828 Airlinersnet

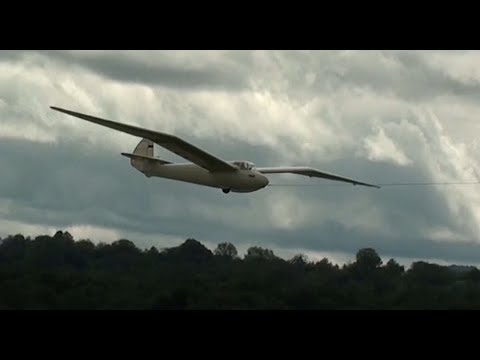

Dfs kranich minimoa grunau baby aerotow hahnweide 2013


The DFS Kranich is a type of German glider. It was developed by Hans Jacobs for the Deutsche Forschungsanstalt für Segelflug (DFS).

Contents

DFS Kranich TheBlueprintscom Blueprints gt Modern airplanes gt Modern D gt DFS

Motorized rc dfs kranich maiden flight part 3


History

DFS Kranich WINGS PALETTE DFS Kranich II Poland

Series production of the Kranich (Crane) took place in the aircraft division of Karl Schweyer AG in Mannheim. The two-seater was, in its version 2, the most widely built two-seat glider in Germany from 1935 to 1939. Several hundred examples were built; exact numbers are not known.

DFS Kranich DFS Kranich II B2 Untitled Aviation Photo 2157170 Airlinersnet

On 11 October 1940 Erich Klöckner in a Kranich achieved the record height in a glider of 11,460 m. Because it occurred in wartime, the altitude record was not recognized by the Allied occupying powers, and Klöckner only received official recognition by the Fédération Aéronautique Internationale (FAI) in the late 1990s. This record height was only exceeded ten years after the flight by the American Bill Ivans during a similar scientific program in the Sierra Nevada.

DFS Kranich Scale Soaring UK DFS Kranich

In 1942 30 Kranichs were built by the Swedish manufacturer AB Flygplan in Norrköping, and delivered to the Swedish Air Force for training purposes. These machines were given the military designation Flygplan Se 103.

DFS Kranich DFS Kranich II AZ model Nr AZCZ07 Modellversium KitEcke

Between 1950 and 1952 50 examples of a slightly modified copy of the Kranich II were built in Poland, known as the SZD-C Żuraw (żuraw is Kranich in Polish = "crane").

DFS Kranich httpsuploadwikimediaorgwikipediacommons99

After the war, Jacobs designed the Kranich III, a new development very different from its predecessors. It was developed and produced at the Focke-Wulf aircraft factory in Bremen. The first flight was on 1 May 1952, piloted by Hanna Reitsch. Thirty-seven were built.

Variants

DFS Kranich AP DFS Kranich II Scale Sailplane ARCARF
Kranich
The initial prototype designed by Hans Jacobs for the DFS.
Kranich II
Production aircraft built primarily by Karl Schweyer AG and by Mraz, Czechoslovakia, but also in Poland and Sweden
Flygplan Se 103
License production of 30 aircraft in Sweden for the Swedish Air Force
SZD-C Żuraw
License production of a modified Kranich in Poland
Focke-Wulf Kranich III
A major re-design.

Specifications (Kranich II)

Data from The World's Sailplanes:Die Segelflugzeuge der Welt:Les Planeurs du Monde

General characteristics

  • Crew: 2
  • Length: 7.7 m (25 ft 3 in)
  • Wingspan: 18 m (59 ft 1 in)
  • Wing area: 22.7 m2 (244 sq ft)
  • Aspect ratio: 14.3
  • Airfoil: Göttingen 535
  • Empty weight: 185 kg (408 lb) (equipped)
  • Max takeoff weight: 350 kg (772 lb)
  • Performance

  • Never exceed speed: 175 km/h (109 mph; 94 kn)
  • Rough air speed max: 128 km/h (79.5 mph; 69.1 kn)
  • Aerotow speed: 100 km/h (62.1 mph; 54.0 kn)
  • Winch launch speed: 80 km/h (49.7 mph; 43.2 kn)
  • Maximum glide ratio: 23.6 at 70 km/h (43.5 mph; 37.8 kn)
  • Rate of sink: 0.7 m/s (140 ft/min) at 60 km/h (37.3 mph; 32.4 kn)
  • Wing loading: 19.4 kg/m2 (4.0 lb/sq ft)
