Length 11 m Manufacturer Cessna | Engine type Reciprocating engine | |
 | ||

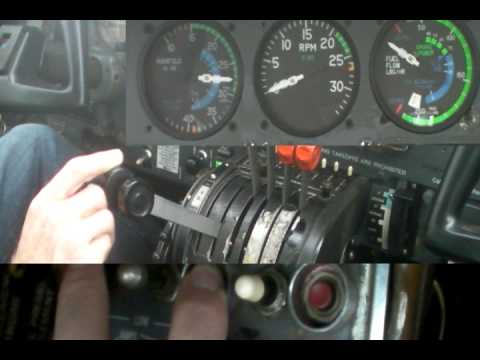

Cessna 402 start
The Cessna 401 and 402 are series of 6 to 10 seat, light twin, piston engine aircraft. This line was manufactured by Cessna from 1966 to 1985 under the name Utiliner and Businessliner. All seats are easily removable so that the aircraft can be used in an all-cargo configuration. Neither the Cessna 401 nor the 402 were pressurized, nor were they particularly fast for the installed horsepower. Instead, Cessna intended them to be inexpensive to purchase and operate.
Contents
- Cessna 402 start
- Cessna 402 310 flight videos surveying scotland more 4k
- Development
- Modifications
- Variants
- Civilian
- Military
- Accident
- Specifications 402C
- References
Cessna 402 310 flight videos surveying scotland more 4k
Development
The Cessna 401 and 402 were developments of the Cessna 411. All 401s and 402s are powered by 300 hp (224 kW) turbocharged Continental engines with three-bladed, constant speed, fully feathering propellers. On later models cruise power was limited to 75% to reduce cabin noise. Some aircraft have a propeller synchrophaser to reduce cabin noise and vibration.
The Cessna 401s, 402s, 402As and some 402Bs built from 1966 to 1971 had four small oval windows, which gave the aircraft a similar appearance to the pressurized Cessna 340. Starting halfway through the production of the Cessna 402B the window configuration was changed to the more distinctive five rectangular windows, an arrangement that was retained through the 402C model, until the completion of production in 1987. All 402Bs were equipped with tip-tanks.
Modifications
In 1969, American Jet Industries began work on a turboprop-powered conversion of the Cessna 402, named the Turbo Star 402, using Allison 250-B17 engines. The prototype flew on 10 June 1970. Further modifications providing increased fuel tankage, higher gross weight, and lower minimum control speed were carried out in 1974 and the modification was recertificated. Scenic Airlines of Las Vegas purchased the rights to the design in 1977.
The Cessna 402C may be outfitted with vortex generators to increase maximum allowable takeoff weight to 7,210 lb (3,270 kg), with a zero-fuel weight of 6,750 lb (3,062 kg).
Another modification for the 402C increases the maximum landing weight to 7,200 lb (3,266 kg), which allows commercial operators to fly with an increased payload on shorter routes.
Variants
This family of aircraft was built in several versions:
1535 Cessna 402s were built.
Civilian
The Cessna 402 has proven to be very dependable over the years, which, along with its range and passenger capacity, has made it a popular choice for many small regional airlines worldwide. The aircraft are generally flown on short, thin routes to hubs where passengers can connect to higher density routes.
The largest operator of the type is Cape Air, which as of March 2015 has a fleet of over 83 Cessna 402s operating in the Caribbean and United States.
Military
Accident
American R&B singer Aaliyah died along with the pilot and seven others, including makeup artists and record label executives, when the Cessna 402B in which they were flying, registered N8097W, crashed after takeoff on August 25, 2001, in Marsh Harbour, Abaco Islands, The Bahamas. The main cause of the crash was determined to be loading the plane beyond its maximum takeoff weight. Additionally, the pilot, Luis Morales III, was unlicensed at the time of the accident and had traces of cocaine and alcohol in his system. Aaliyah's family later filed a wrongful death lawsuit against Blackhawk International Airways, which was settled out of court.
Specifications (402C)
Data from Plane & Pilot, Airliners.net, The Incomplete Guide to Airfoil Usage
General characteristics
Performance
