Caterpillar sixty on a dyno
The Caterpillar Sixty was a 60 horsepower (45 kW) crawler tractor manufactured by the Caterpillar Tractor Company from 1925 until 1931. The Sixty was the largest tractor in Caterpillar's product line at that time.
Contents
- Caterpillar sixty on a dyno
- Two caterpillar sixty s running side by side 8 13 2016
- The Sixty
- Specifications
- Numbers produced
- References
The Caterpillar Sixty was originally introduced for sale beginning in 1919 as the C. L. Best 60 Tracklayer, manufactured by the C. L. Best Tractor Company. The Best 60 was the most successful tractor in the Best model line. After the 1925 merger of the C. L. Best Tractor Company and the Holt Manufacturing Company that formed the Caterpillar Tractor Company, the Best 60 was renamed the Caterpillar Sixty.
Between 1919 and 1931, 18,948 C. L. Best 60 Tracklayer/Caterpillar Sixty tractors were manufactured.

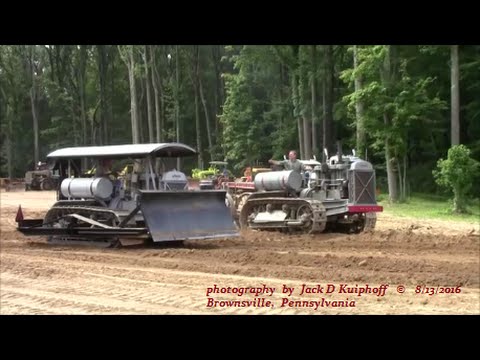

Two caterpillar sixty s running side by side 8 13 2016
The Sixty
The Caterpillar Sixty was famous for its overhanging radiator, individually mounted cylinders, lever controls, and open clutch. It was to rival the Holt 10 Ton model.
Initially, the Sixty was used to pull farm equipment and road scrapers. Later, cable lift blades were rigged up, so that the crawlers could be used as a bulldozer.
Specifications
The Caterpillar Sixty was powered by a four-cylinder, overhead valve gasoline engine that produced 60 horsepower (45 kW) at the belt and 35 horsepower (26 kW) at the drawbar. The Sixty was a 72-inch (1.8 m) gauge machine and weighed 20,500 pounds (9,300 kg).
Numbers produced
Caterpillar produced model Sixty tractors in San Leandro, California through 1930 and in Peoria, Illinois through 1931. In total, 18,948 C. L. Best 60 Tracklayer/Caterpillar Sixty tractors were manufactured during twelve years of production.
