Top speed 175 km/h Length 8.87 m First flight November 21, 1916 | Wingspan 14 m Introduced 1917 Manufacturer Breguet Aviation | |
 | ||

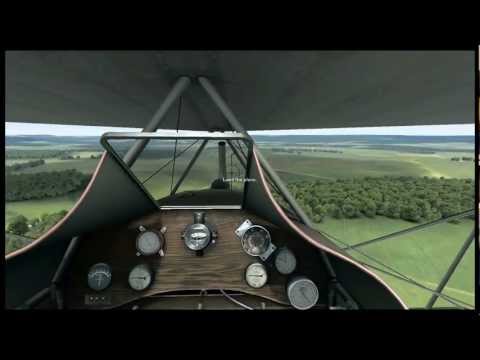

pc rise of flight tour of the breguet 14 b2
The Breguet 14 was a French biplane bomber and reconnaissance aircraft of World War I. It was built in very large numbers and production continued for many years after the end of the war. Apart from its widespread usage, it is known for being the first mass-produced aircraft to use large amounts of metal rather than wood in its structure. This allowed the airframe to be lighter than a wooden airframe of the same strength, in turn making the aircraft very fast and agile for its size, able to outrun many of the fighters of the day. Its strong construction was able to sustain much damage, it was easy to handle and had good performance. The Breguet 14 is often considered to have been one of the best aircraft of the war.
Contents
- pc rise of flight tour of the breguet 14 b2
- Rof on patrol in the breguet 14 b2
- Design and development
- Operational history
- Operators
- Specifications 14B2
- References

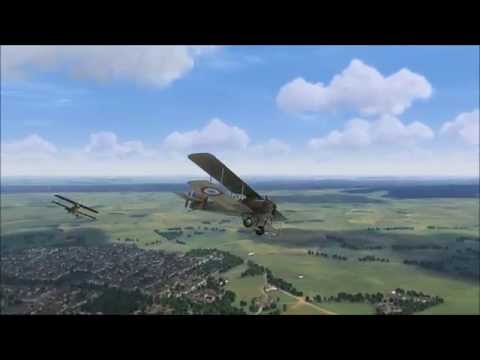

Rof on patrol in the breguet 14 b2
Design and development
The aircraft was designed by Louis Breguet, who flew the first prototype (originally designated "Breguet AV Type XIV") on its first flight on 21 November 1916. The design was a return for Breguet to designing conventional planes, after designing the pusher-type Breguet BUM. Later that month, the French Army's Section Technique de l' Aéronautique (S.T.Aé.) issued requirements for four different new aircraft types. Breguet submitted his new design for two of those categories - reconnaissance aircraft, and bomber.
Following evaluation in February, the Breguet 14 was accepted for both these roles, and in March, orders were placed for 150 reconnaissance aircraft and 100 bombers, designated "Breguet 14 A.2" and "14 B.2" respectively (by 1918 written Breguet XIV A2/B2). The A.2s were equipped with cameras, with some carrying radios, while the lower wing of the 14 B.2 was modified slightly in order to accommodate bomb racks (built by Michelin). Both variants featured automatic, bungee cord-operated aerodynamic flaps, but these were not fitted to production aircraft. A number of B2 models were equipped with the U.S.-built Liberty engine and were denoted "Breguet 14 B2 Ls".
Other minor variants flown in small numbers during the war included the 14 B.1 long-range single-seat bomber, the 14 GR.2 long-range reconnaissance, the 14 H floatplane, the 14 S air ambulance and the 14 Et.2 trainer. Later variants 14bis A2 and 14bis B2 featured improved wings. An improved variant with bigger wings was the 16. There was also the two-seat fighter 17, which was built in small numbers only.
Operational history
Following successful deployment by the French, the type was also ordered by the Belgian Army (40 aircraft) and the United States Army Air Service (over 600 aircraft). Around half the Belgian and U.S. aircraft were fitted with Fiat A.12 engines due to shortages of the original Renault 12F. By the end of World War I, some 5,500 Breguet 14s had been produced.
The type continued to be widely used after the war, equipping the French occupation forces in Germany and being deployed to support French troops in the colonies. A special version was developed for the harsh conditions encountered overseas, designated "14 TOE" (Théatres des Operations Extérieures). These saw service in putting down uprisings in Syria and Morocco, in Vietnam and in France's attempted intervention in the Russian Civil War. The last trainer examples were not withdrawn from French military service until 1932.
Other air arms using the type included Brazil (30), China (70), Czechoslovakia (10), Denmark, Finland (38), Greece, Japan, the Siamese Air Force, Uruguay (9) and Spain. The Polish Air Force used 158 Breguet 14s, about 70 of them being used in combat in the Polish-Soviet war. In Japan, Breguet 14s were licence-built by Nakajima.
Postwar, Breguet had also begun to manufacture dedicated civil versions. The 14 T.2 Salon carried two passengers in a specially modified fuselage. An improved version of this was the 14 Tbis, manufactured as both a land-plane and seaplane. The 14 Tbis also formed the basis of the improved 14 Tbis Sanitaire air ambulance version, and 100 mail planes custom-built for Pierre Latécoère's fledgling airline, Lignes Aeriennes Latécoère. After changing its name to "CGEA", the airline used, among others, 106 Breguet 14s for flights over the Sahara Desert. The 18 T was a single 14 T re-engined with a Renault Ja engine and equipped to carry four passengers. When production finally ceased in 1928, the total of all versions built had reached 7,800 (according to other sources, 8,000 or even 8,370).
Operators
Specifications (14B.2)
Data from {name of first source}
General characteristics
Performance
Armament
