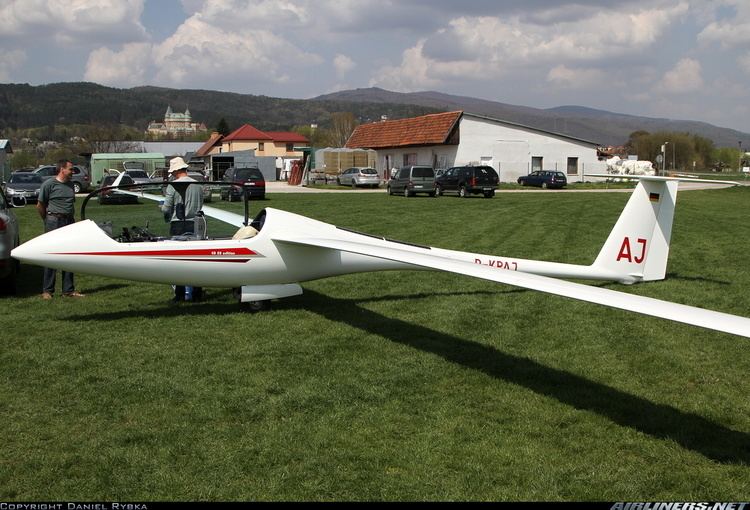

Binder eb28 londonglidingclub


The Binder EB28 is a German two-seat, open-class self-launching powered sailplane designed and built by Binder Motorenbau.

Contents

The EB28 is a composite-built two-seat shoulder-wing monoplane with a conventional T-type tailplane. It has a retractable central landing gear with a fixed tail wheel. The wing has Schempp-Hirth airbrakes on upper wing surface and fitted with water ballast tanks in the wing and vertical tail. The EB28 has a retractable engine for self-launching and a safety hook for aero-towing.

Binder eb28 saint gaudens d collage 10 11 2014


Variants

EB28
Production two-seat variant.
EB28 edition
Production two-seat variant with optional mechanical or electrical landing gear retraction and the ability to change the span of the wings. The standard EB28 can be modified to edition variant. The wings of the EB28 edition have been used for the single seat variant EB29 with slight modifications.

Specifications (EB28)

Data from

General characteristics

Binder EB28 EB28

  • Crew: 2
  • Wingspan: 28 m (91 ft 10 in)
  • Height: 1.70 m (5 ft 7 in)
  • Wing area: 16.8 m2 (181 sq ft)
  • Aspect ratio: 46.7
  • Empty weight: 570 kg (1,257 lb) approximately
  • Gross weight: 850 kg (1,874 lb)
  • Powerplant: 1 × Solo Kleinmotoren Type 2625-02 , 47 kW (63 hp)
  • Propellers: 1.60 m (5 ft 3 in) diameter

    • Performance

    Binder EB28 httpsuploadwikimediaorgwikipediacommonsthu

  • Cruising speed: 160 km/h (99 mph; 86 kn) in powered flight
  • Never exceed speed: 275 km/h (171 mph; 148 kn)
  • Minimum control speed: 78 km/h (48 mph; 42 kn)
  • Maximum glide ratio: 65
  • Rate of climb: 2.5 m/s (490 ft/min) with engine

    • Binder EB28 Binder EB28 IP St Gaudens Day 1 8th november 2014 YouTube

    Binder EB28 Binder EB28 Saint Gaudens dcollage 10112014 YouTube
