Top speed

414 km/h

Wingspan

34 m

Cruise speed

280 km/h

First flight

1950

Range

5,000 km

Length

24 m

Engine type

Shvetsov ASh-73

Beriev Be-6 Beriev Be6 Passed to Development War Thunder Official Forum

Beriev be 6 nato code madge

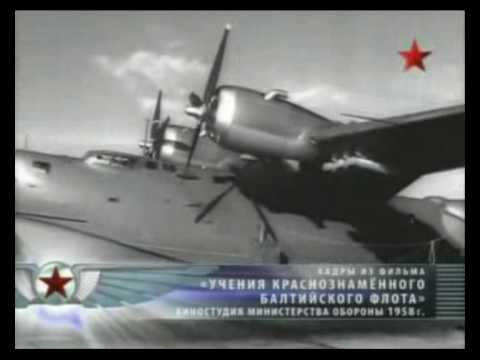

The Beriev Be-6 (USAF/DoD reporting name "Type 34", NATO reporting name "Madge") was a flying boat produced by the Soviet Beriev OKB. It was capable of accomplishing a wide variety of missions, such as long-range maritime reconnaissance, coastal and supply line patrols, torpedo/bombing strikes, mine-laying, and transport operations.

Contents

Beriev Be-6 Beriev Be6 Suggestions War Thunder Official Forum

Design and Development

Beriev Be-6 Berijew Beriev Be6 Specifications Technical Data Description

The Be-6 was a gull-winged aircraft with twin oval vertical stabilizers on top of a deep fuselage. The aircraft was of all-metal construction except for fabric covering the rudders and ailerons. The fuselage was divided into eight watertight compartments to improve survivability. The engines were installed in the bends of the wings with the floats on an underwing cantilever rack. Each float was divided into four watertight compartments.

Operational history

Beriev Be-6 httpsuploadwikimediaorgwikipediacommonsthu

The Be-6 was built from 1949 to 1957 at the Beriev plant in Taganrog. The aircraft went through 19 variants through its production cycle, and 123 aircraft were eventually built. Since requirements of Soviet naval aircraft did not change rapidly, the reliable Be-6 stayed in service until the late 1960s. Some aircraft ended service as civilian unarmed transports in Arctic regions. One survivor is preserved at the Ukraine State Aviation Museum in Kyiv, Ukraine. Beriev Be-6s operated by the Peoples Republic of China PLANAF proved useful in patrolling the long coastline and huge territorial waters off China's coast. During the 1970s the original Shvetsov radial engines began to wear out with no replacements available, so several aircraft were re-engined with Wopen WJ-6 turboprop engines, in new nacelles, for a new lease of life and were redesignated Qing-6.

Operators

 People's Republic of China
  • People's Liberation Army Naval Air Force
    •  Soviet Union
  • Soviet Naval Aviation

    • Variants

    Beriev Be-6 WINGS PALETTE Beriev Be6 MadgeMug USSRRussia

  • LL-143: Prototype of Be-6 with Shvetsov ASh-72 radial engines; nose, beam, ventral and tail positions for a total of six 12.7mm UBT machine-guns. Maiden Flight in March 1945.
  • Be-6: standard production aircraft with Shvetsov ASh-73 radial piston-engines.
  • Qing-6: Be-6 aircraft of the PLANAF re-engined with Wopen WJ-6 turboprops.

    • Specifications (Be-6)

    Data from Encyclopedia of Russian Aircraft

    General characteristics

    Beriev Be-6 Beriev Be6 Suggestions War Thunder Official Forum

  • Length: 23.5 m (77 ft 1 in)
  • Wingspan: 33 m (110 ft)
  • Height: 7.64 m (25 ft 1 in)
  • Wing area: 120 m² (1,292 ft²)
  • Empty weight: 18,827 kg (41,506 lb)
  • Loaded weight: 23,456 kg (51,711 lb)
  • Landing weight: 20,928 kg (46,138 lb))
  • Max. takeoff weight: 29,000 kg (64,000 lb)
  • Powerplant: 2 × Shvetsov ASh-73TK radial engines, 1,800 kW (2,400 hp) each

    • Performance

  • Maximum speed: 414 km/h (218 kn, 257 mph) at 1,800 m (5,900 ft)
  • Cruise speed: 280 km/h (173 mph) at 2,000 m (6,600 ft)
  • Landing speed: 147 km/h (105 kn, 91 mph)
  • Range: 5,000 km (2,700 kn, 3,100 mi)
  • Service ceiling: 6,100 m (20,013 ft)

    • Armament

  • Guns: 5 × 23 mm (0.91 in) Nudelman-Rikhter NR-23 cannon in 3 remotely controlled turrets
  • Bombs:
  • General ordnance, or
  • 2×1,000 kg (2,205 lb) torpedoes, or
  • 8 mines
