Heinkel He 63

Updated on
Edit
Like
Comment
Share on FacebookTweet on TwitterShare on LinkedInShare on Reddit
Top speed

200 km/h

Length

8.2 m

Manufacturer

Heinkel

Wingspan

11 m

First flight

1932

Designer

Ernst Heinkel

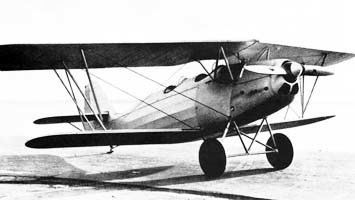

Heinkel He 63 wwwairwarruimageiother1he63ijpg

The Heinkel He 63 was a trainer biplane built in Germany in the early 1930s. It was a largely conventional design with single-bay wings, fixed tailskid undercarriage, and two open cockpits in tandem. An unusual feature of the design was the highly swept, arrow-shaped upper wing, braced to the lower wing by N-type struts. Prototypes of the He 63 were built in both landplane and seaplane form, but no production ensued.

Specifications (Landplane)

General characteristics

  • Crew: Two, pilot and instructor
  • Length: 8.20 m (26 ft 11 in)
  • Wingspan: 10.80 m (35 ft 5 in)
  • Height: 2.70 m (8 ft 10 in)
  • Wing area: 24.4 m2 (263 ft2)
  • Empty weight: 820 kg (1,800 lb)
  • Gross weight: 1,250 kg (2,750 lb)
  • Powerplant: 1 × Argus As 10C, 120 kW (160 hp)

    • Performance

  • Maximum speed: 200 km/h (125 mph)
  • Range: 1,100 km (684 miles)
  • Service ceiling: 3,900 m (12,800 ft)
