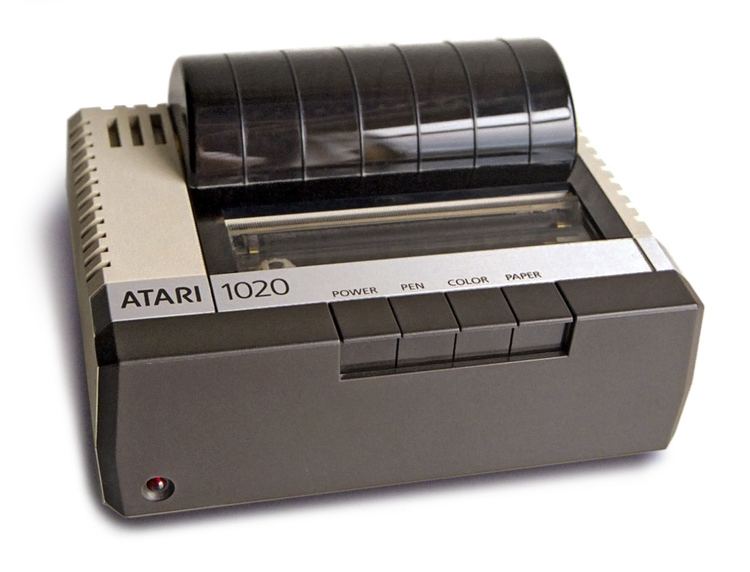

The Atari 1020 was a four-colour computer plotter sold by Atari, Inc. for the Atari 8-bit home computer family.
The 1020 was based on a plotter mechanism manufactured by ALPS. The same mechanism formed the basis of several other low-cost plotters produced around the same time, including the Commodore 1520, the Oric MCP40, the Tandy/Radio Shack CGP-115, the Texas Instruments HX-1000 and the Mattel Aquarius 4615. However, the 1020 connected via the Atari 8-bit's proprietary SIO interface, eliminating the need for an 850 serial/parallel interface module, but limiting its use to Atari 8-bit computers.
The 1020 was capable of 20-, 40- and 80-column text and graphics using a friction-fed roll of paper approximately 11.5 cm in width. Graphics were generated using one of four coloured pens to draw lines, using a combination of the horizontally moving pen barrel and the vertically scrolling paper to create diagonal lines.
Control of the plotter was possible from Atari BASIC.
